Compact Disc Player (CD): Service and Repair

Removal

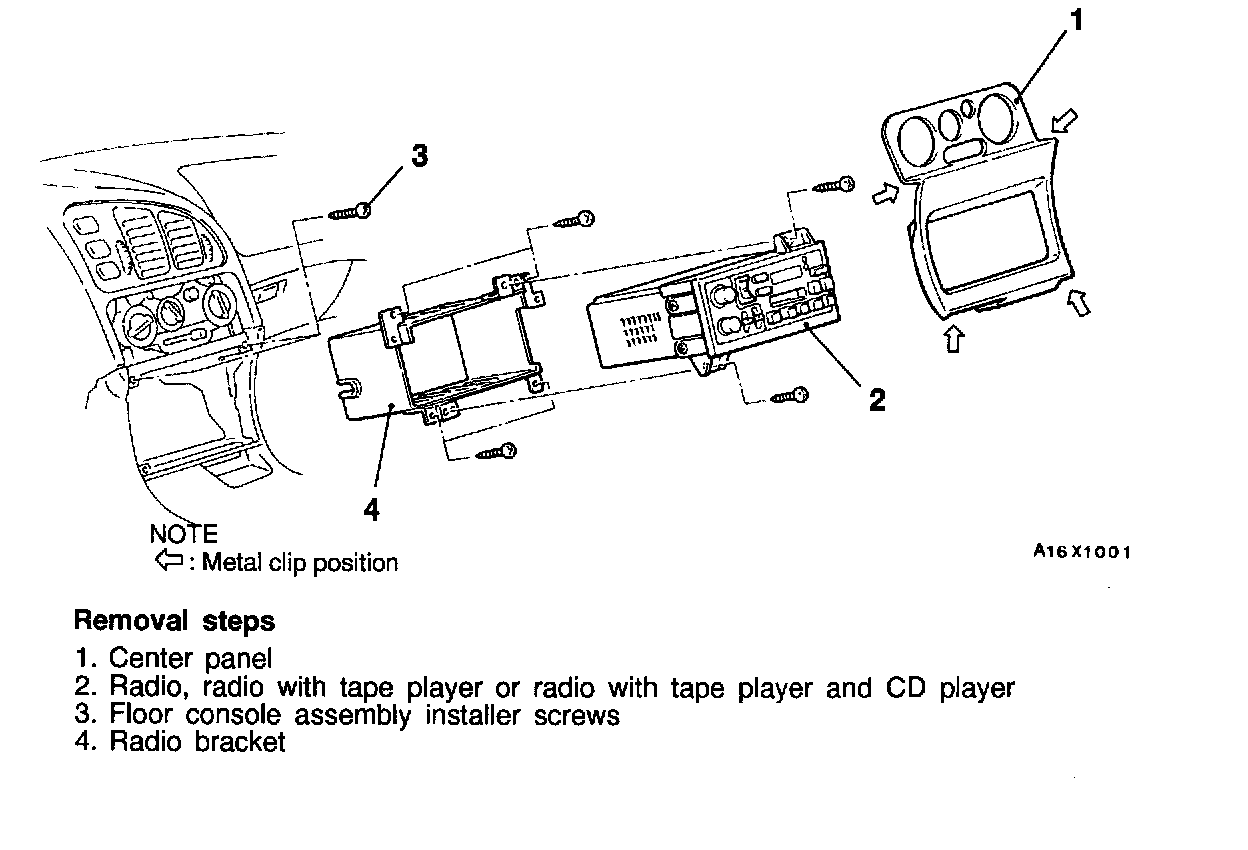

To remove follow the steps listed in the image and note the following.

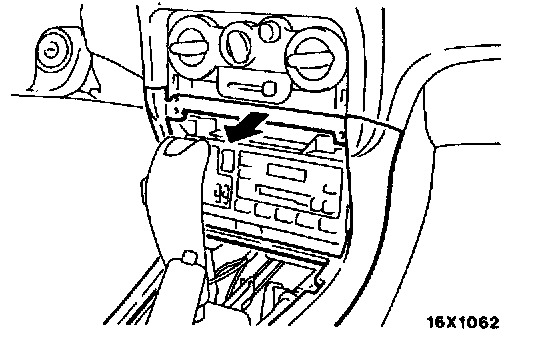

Step 4: Radio Bracket Removal
Pull upper part of floor console assembly toward you slightly. Remove the radio bracket.

Installation
To install reverse the steps listed in the image.
