Refrigerant Pressure Sensor / Switch: Locations

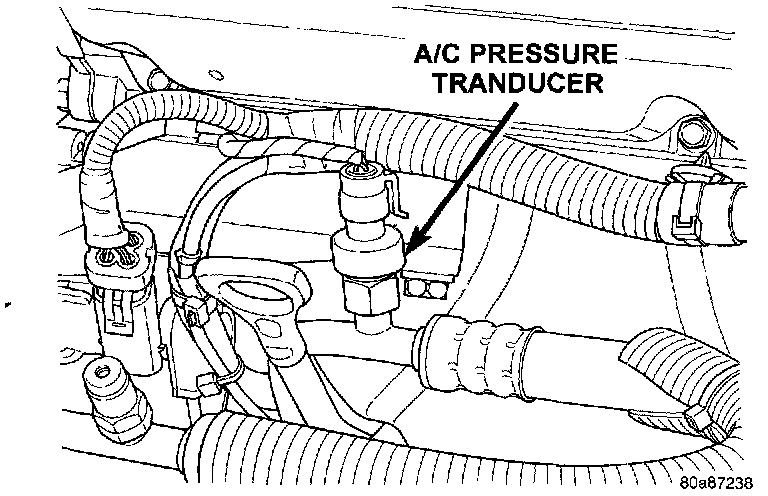

Pressure Transducer:




The switch is located on the discharge line near the compressor.
