Home >> Chrysler >> 1999 >> Sebring Convertible V6-2.5L VIN H >> Repair and Diagnosis >> Powertrain Management >> Ignition System >> Distributor >> Diagrams >> Distributor C2 - Black 6 Way

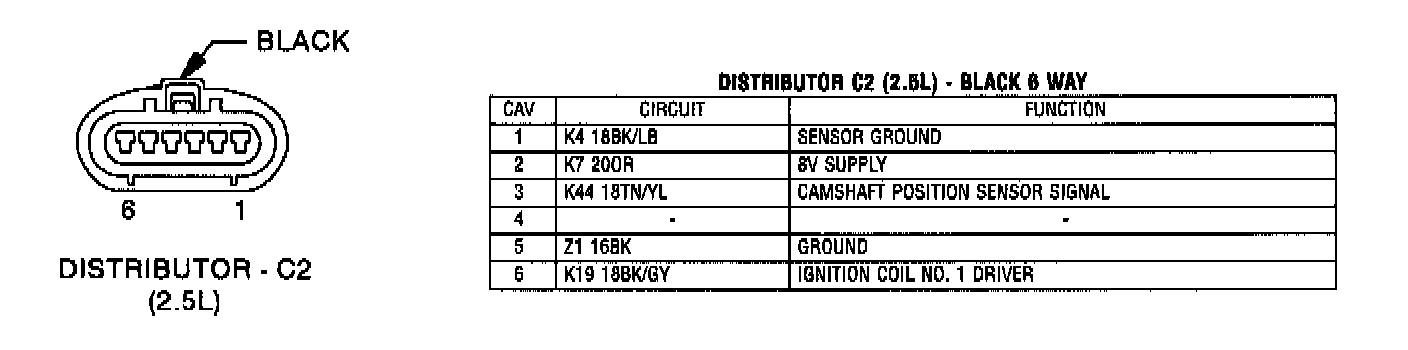

Distributor C2 - Black 6 Way

Distributor C2 - Black 6 Way:
