Resonator: Service and Repair

REMOVAL

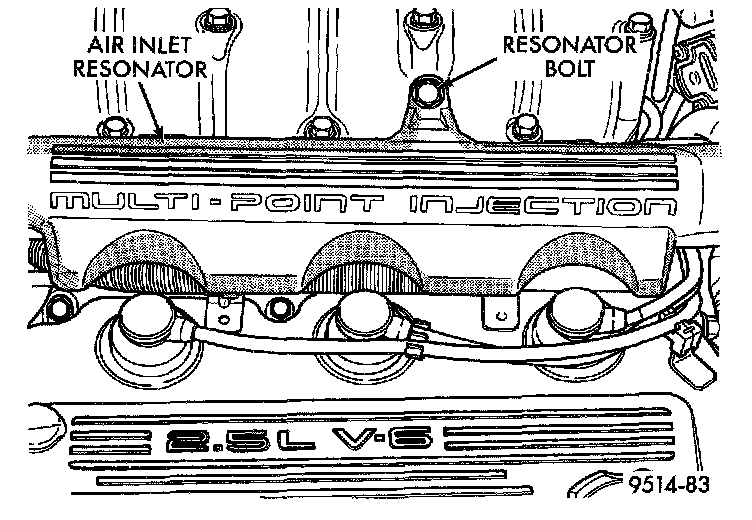

Air Inlet Resonator:

1. Remove bolt holding resonator to intake manifold.
2. Loosen clamp holding resonator to air inlet tube. Remove resonator.

INSTALLATION
1. Install air inlet tube to resonator.
2. Tighten clamp to 3 ± 0.5 N.m (25 ± 5 in. lbs.) torque.
3. Install bolt holding resonator to intake manifold. Tighten to 5 ± 0.5 N.m (45 ± 5 in. lbs.) torque.
