Qualifying A "No Start" Condition

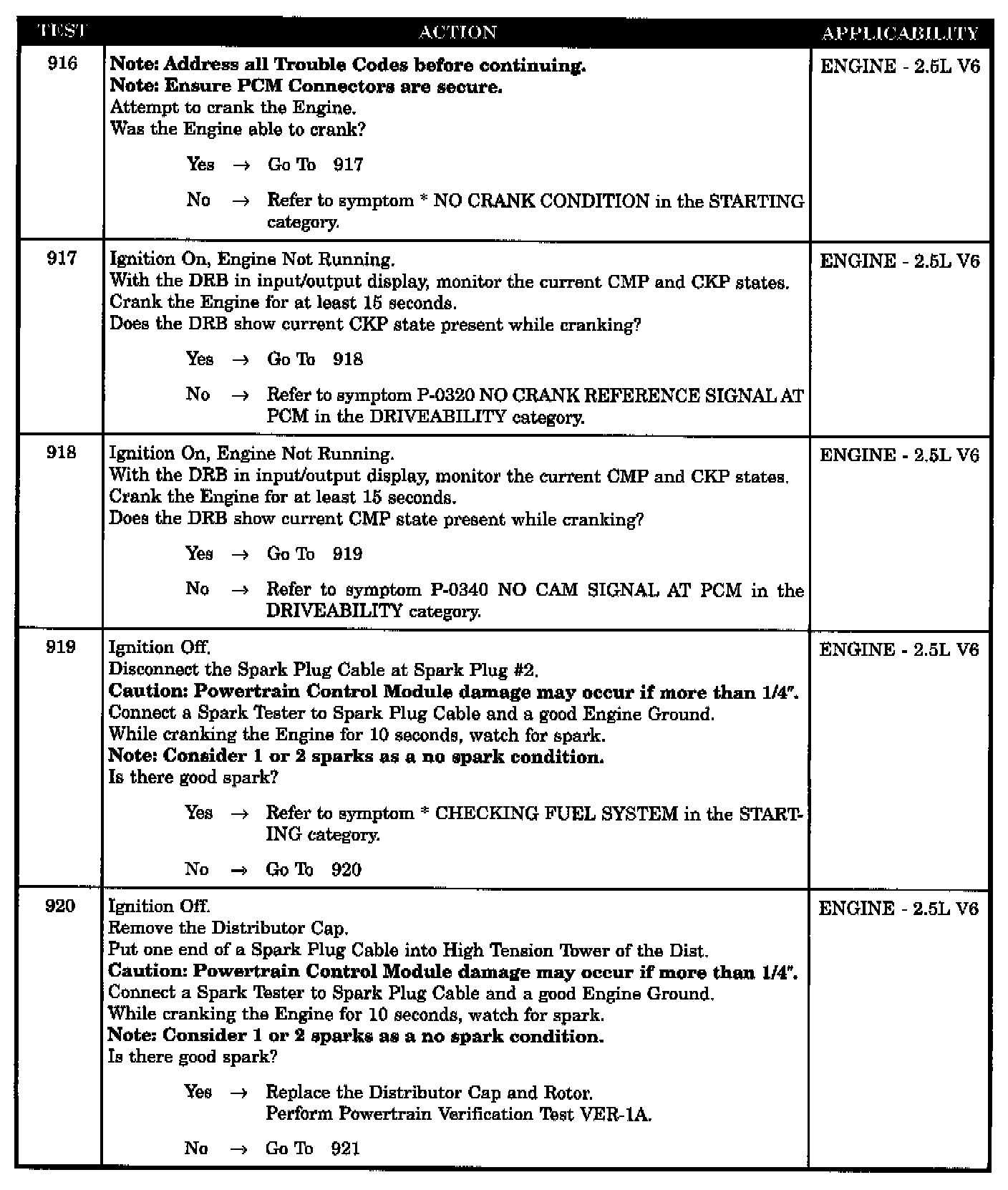

Tests 916 - 920:

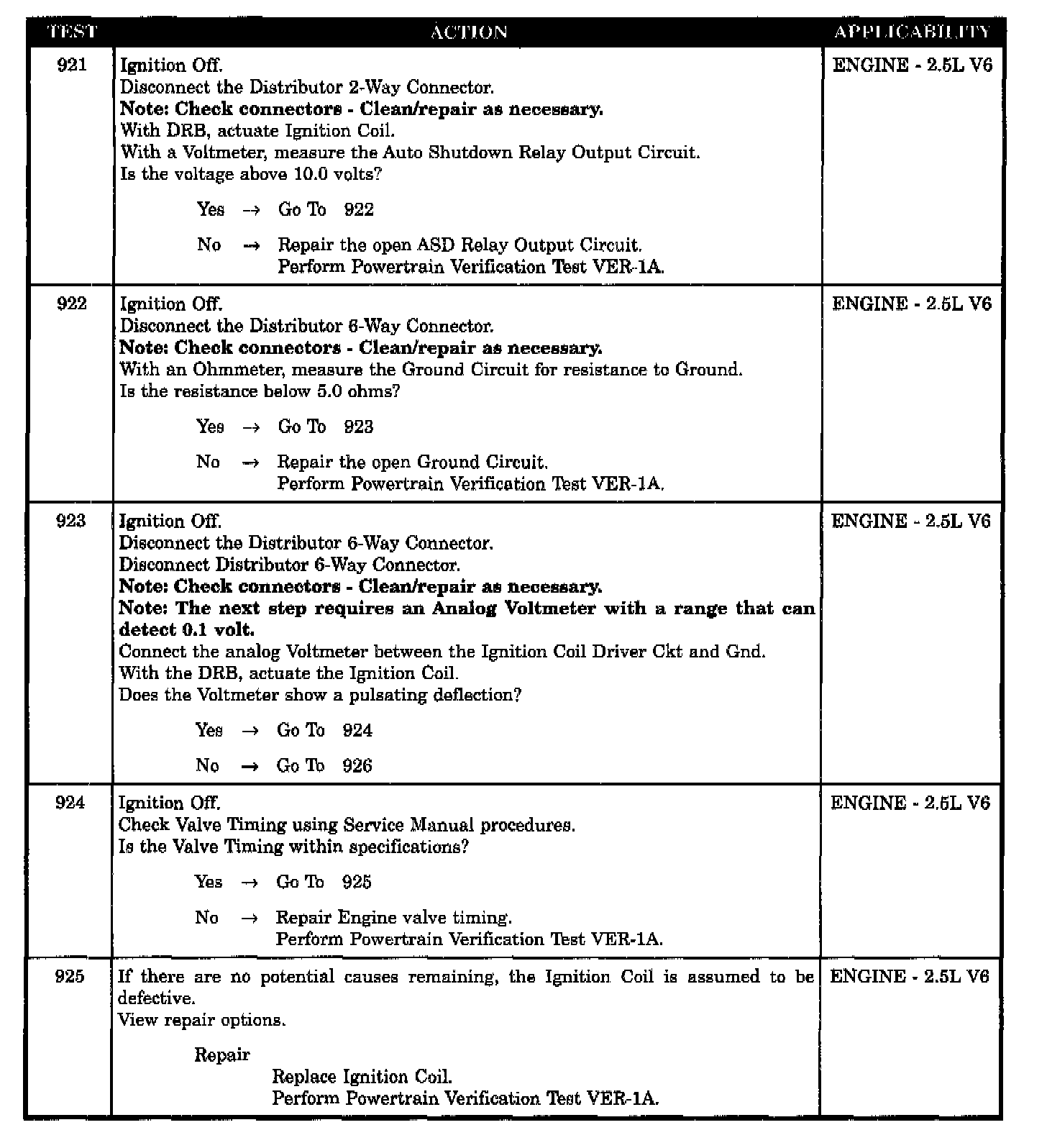

Tests 921 - 925:

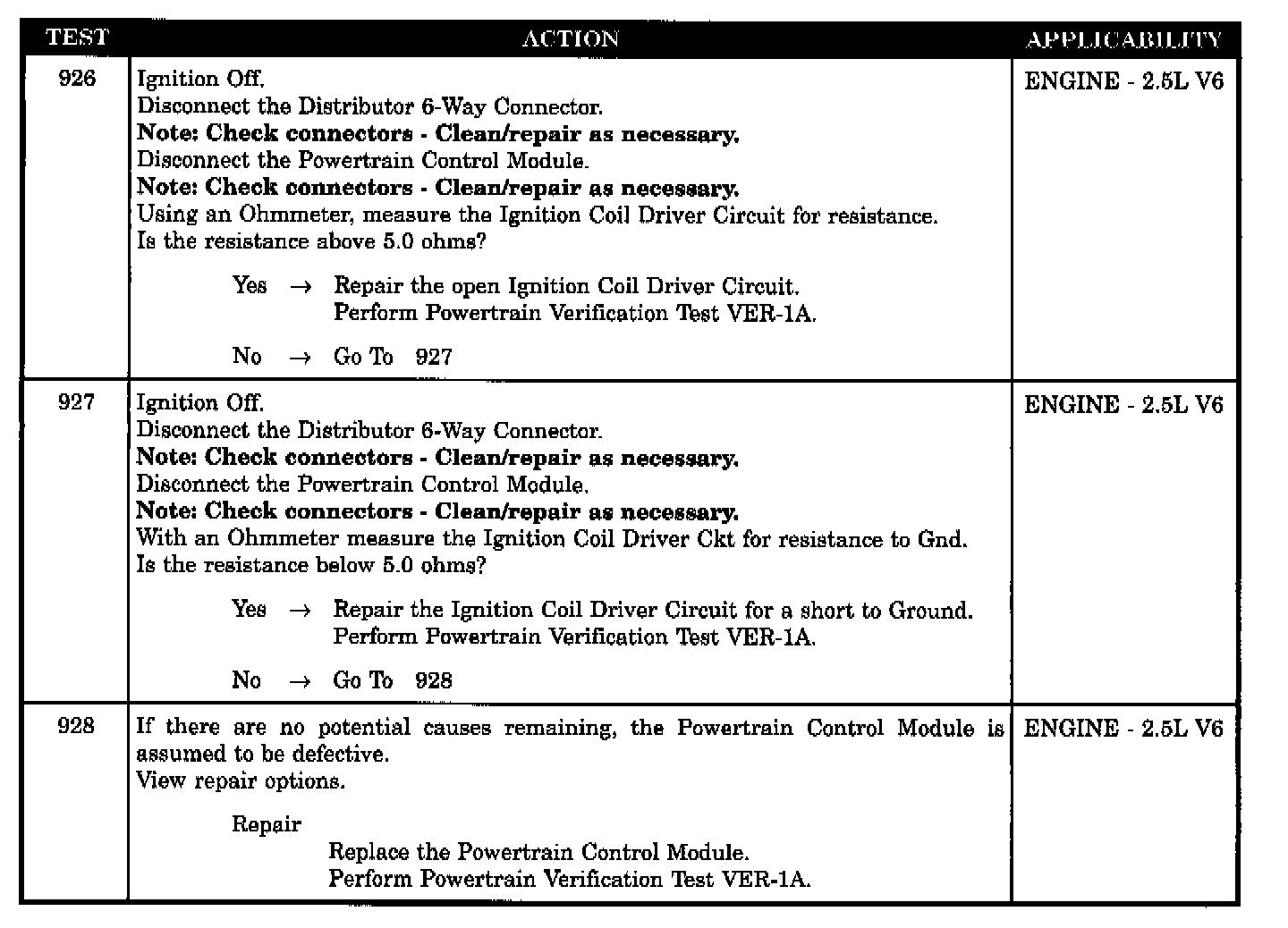

Tests 926 - 928:

SYMPTOM
* QUALIFYING A NO START CONDITION

POSSIBLE CAUSES
- ASD relay output circuit open
- Ground circuit open
- Distributor cap and rotor defective
- Engine valve timing defective
- Ignition coil driver circuit open
- Ignition coil driver circuit shorted to ground
- Ignition coil defective
- PCM defective
