A/C Belt

REMOVAL
1. Remove power steering pump drive belt.

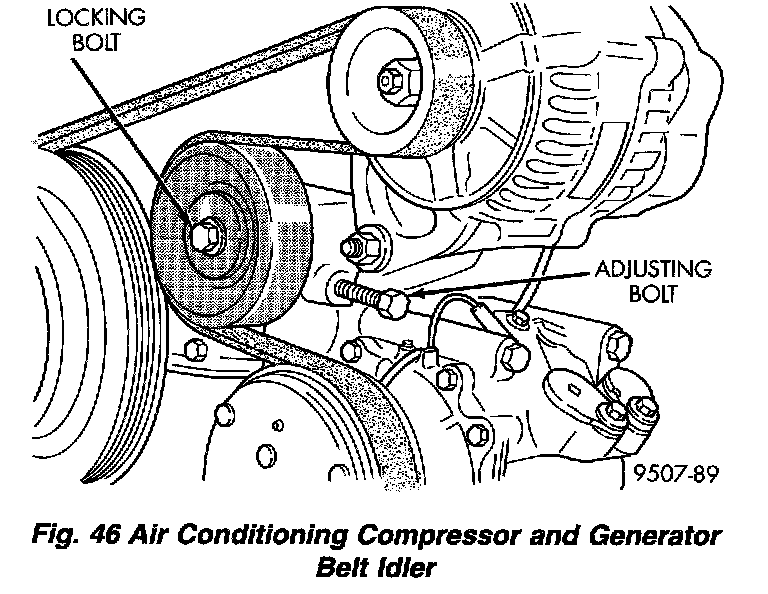

Figure 46:

2. Loosen idler pulley locking bolt (Fig. 46).
3. Loosen the adjusting screw to decrease the idler pulley tension.
4. Remove belt.

INSTALLATION

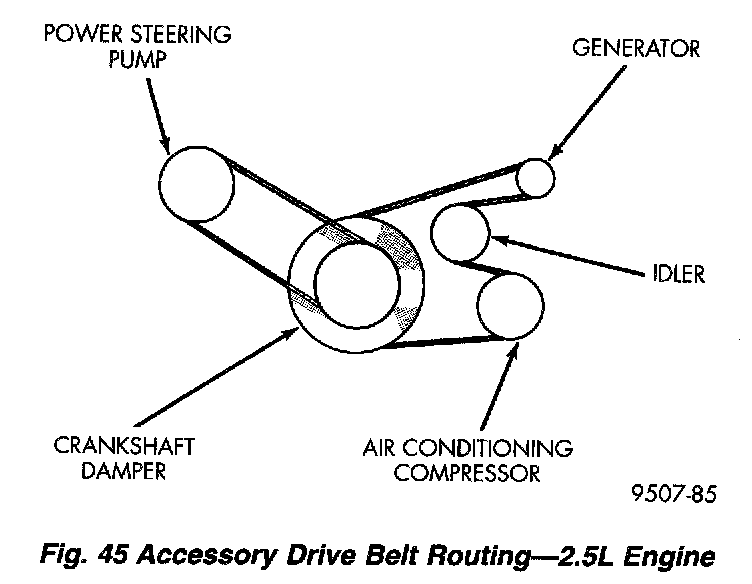

Figure 45:

1. Refer to (Fig. 45) for belt routing.
2. Install drive belt on pulleys.

NOTE: Use Special Tool 7198, Belt Tension Gauge to check belt for proper tension.

3. Tighten the adjusting screw until belt is tensioned to specifications. Refer to Belt Tension Chart for specifications.
4. Tighten idler pulley locking bolt to 54 Nm (40 ft. lbs.). Recheck belt for proper tension and adjust as necessary.
5. Install power steering pump drive belt.


Air Conditioning And Generator Belt Tension Adjustment
To adjust the air conditioning and generator drive belt, loosen the idler pulley locking bolt and adjust belt tension by turning adjusting screw. Use Belt Tension Gauge and refer to Belt Tension Chart for specification. Tighten pulley bolt to 54 Nm (40 ft. lbs.) after adjustment.

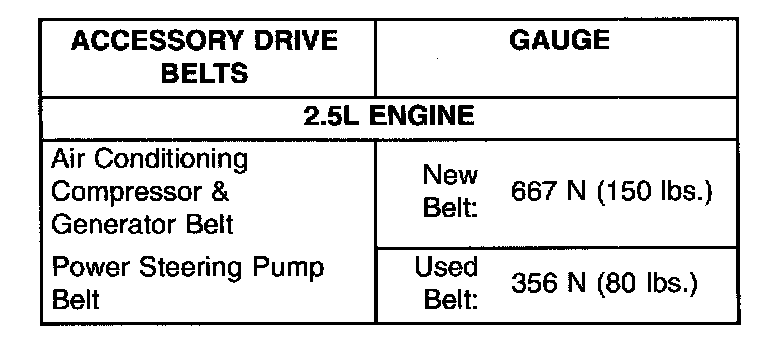

Belt Tension Chart
