Disassembly and Assembly

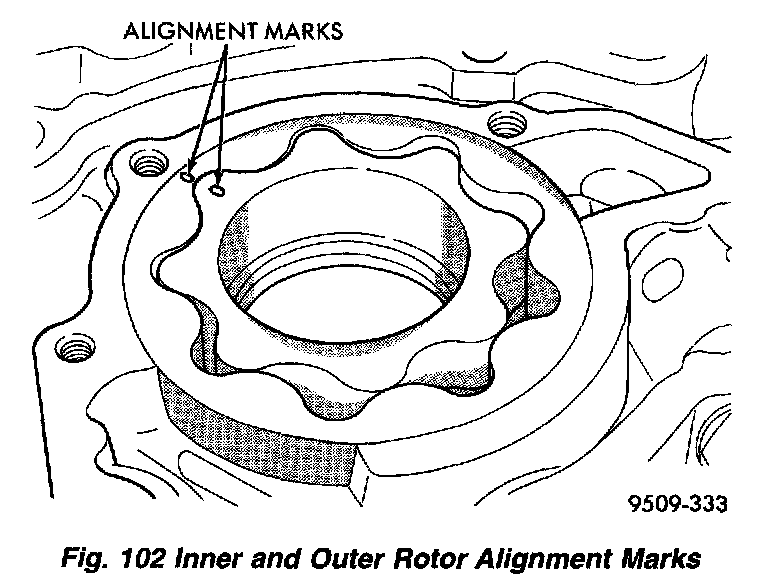

Figure 102:

1. Assemble pump, using new parts as required with clean oil. Align marks on the inner and outer rotors when assembling.
2. Install cover and tighten screws to 10 Nm (85 inch lbs.).

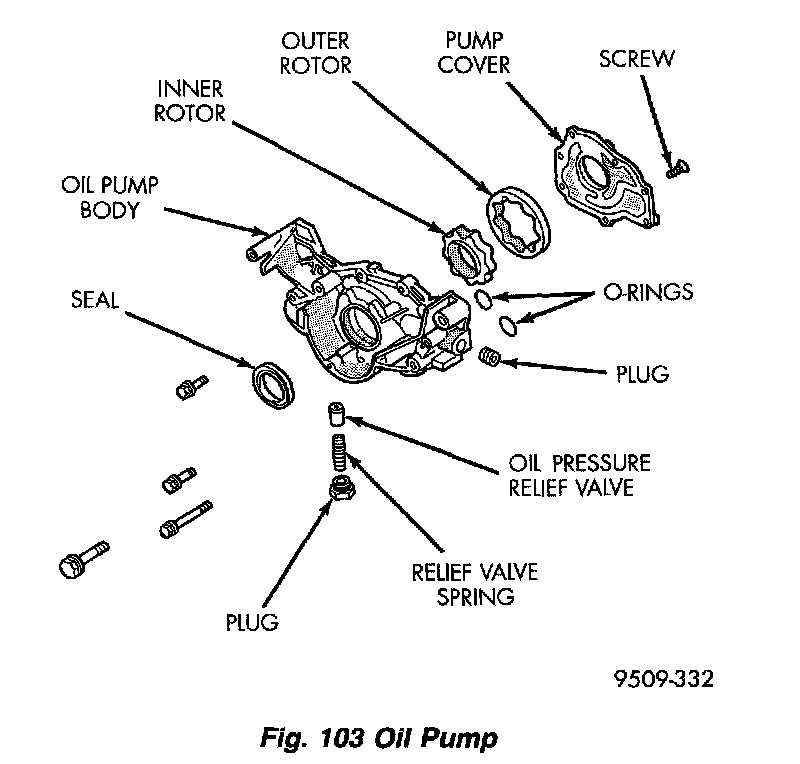

Figure 103:

3. Install relief valve, spring, gasket and cap as shown. Tighten cap to 44 Nm (33 ft. lbs.).
