Engine Lubrication: Description and Operation

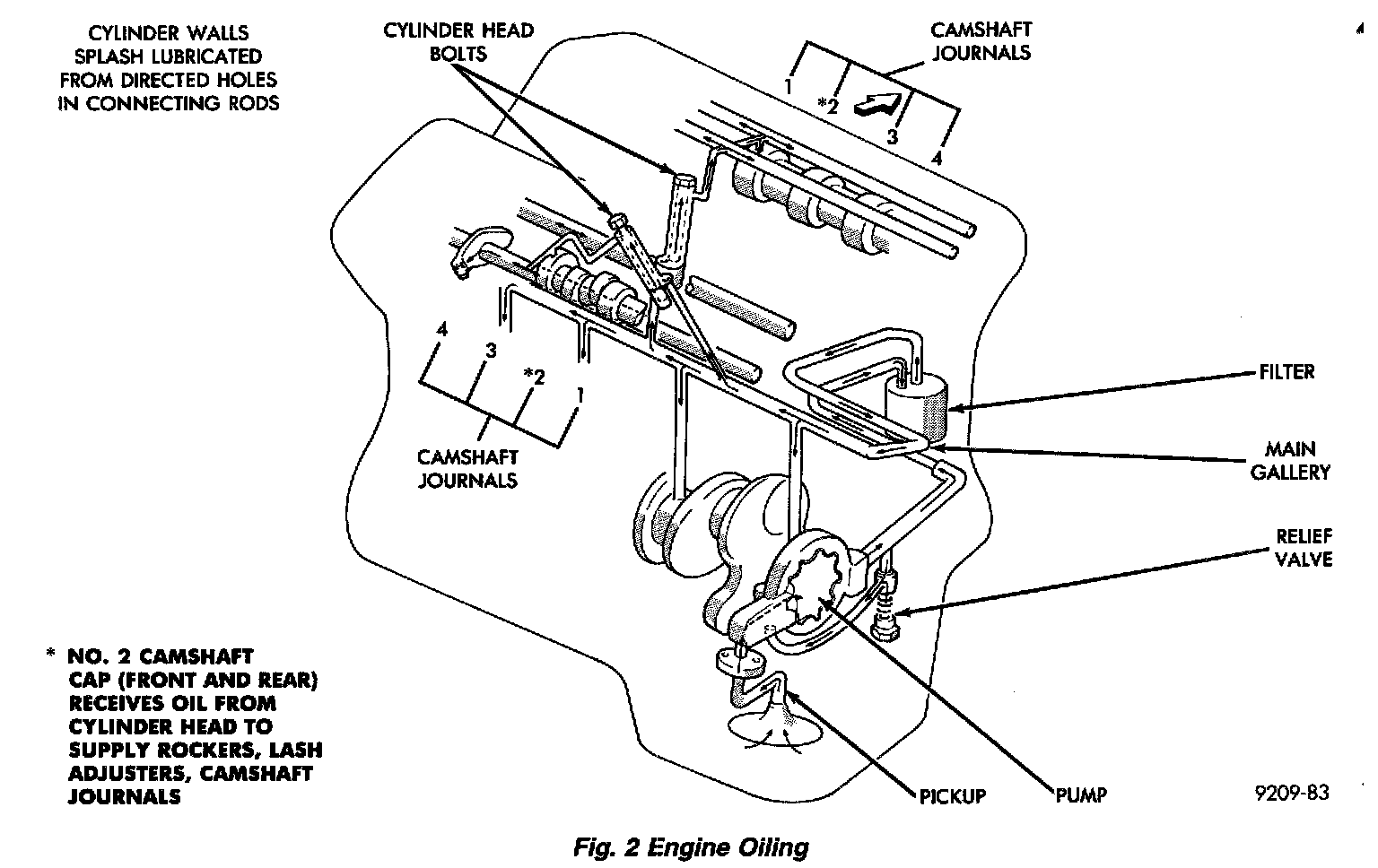

The lubrication system is a full flow filtration pressure feed type. Oil, stored in the oil pan, is taken in and discharged by a trochoid type oil pump directly coupled to the crankshaft and its pressure is regulated by a relief valve. The oil is fed through an oil filter and to the crankshaft journals from the oil gallery in the cylinder block. This gallery also feeds oil under pressure to the cylinder heads and camshaft journals. It then flows from the cylinder head passages to the rocker shafts to the rocker arm pivots and auto lash adjusters.
