Harmonic Balancer - Crankshaft Pulley: Service and Repair

REMOVAL

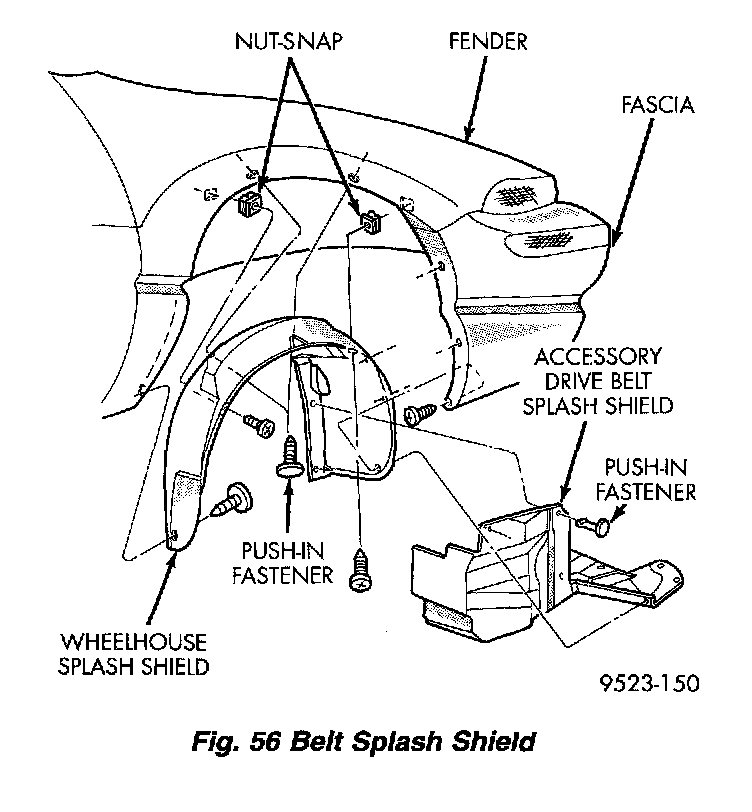

Figure 56:

1. Remove belt splash shield (Fig. 56).
2. Remove accessory drive belts. Refer to Drive Belts, Mounts, Brackets and Accessories for procedures.

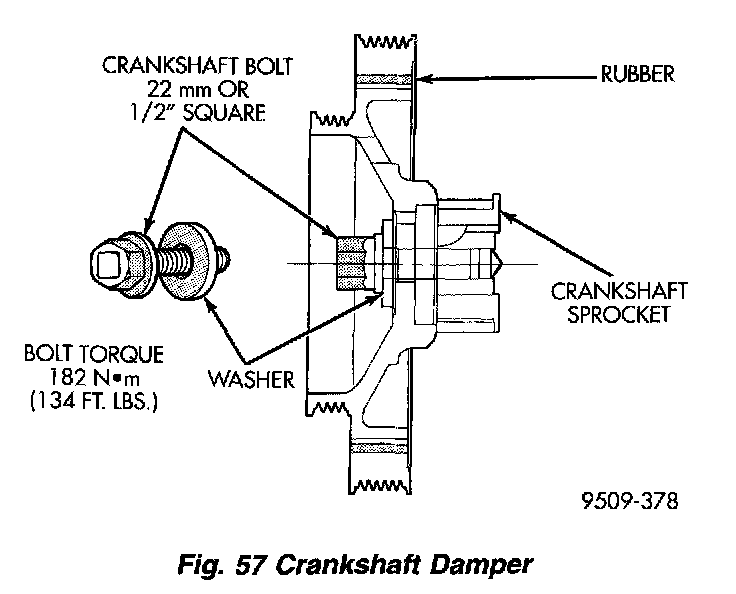

Figure 57:

3. Remove crankshaft center bolt (Fig. 57) and remove crankshaft damper.

INSTALLATION
1. Install crankshaft damper.

Figure 57:

2. Install crankshaft bolt and tighten to 182 Nm (134 ft. lbs.).
3. Install accessory drive belts.

Figure 56:

4. Install belt shield.
