Bearing Installation

When the bearings need replacing, select and install the proper bearing by the following procedure.

Figure 17:

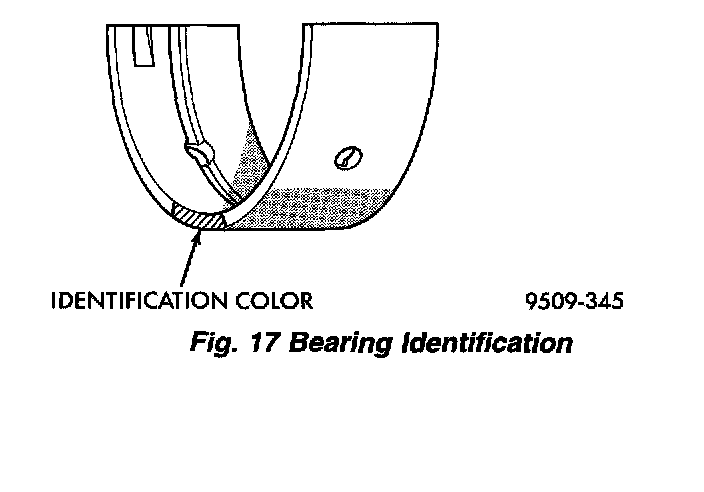

1. Measure the crankshaft journal diameter and confirm its classification from the Crankshaft Size Classification Chart. In the case of a bearing supplied as a service part, its identification color is painted at the position shown in (Fig. 17).

NOTE: Service Replacement parts have identification marks, but factory-assembled parts have no identification marks. Service crankshaft identification may have marks or paint at counterweights.

Part 1 Of 2:

Part 2 Of 2:

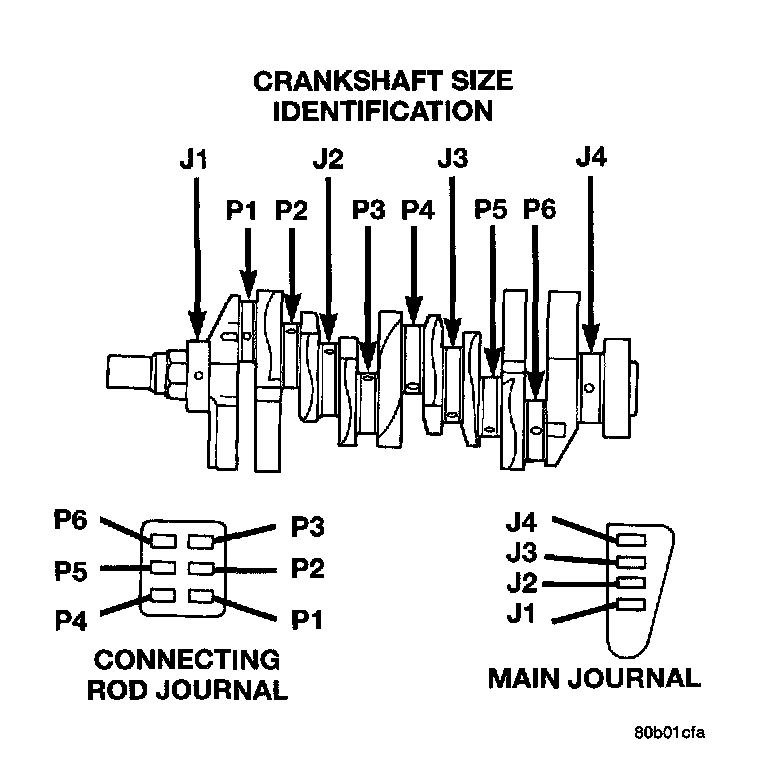

Crankshaft Size Classification Chart
