Crankshaft Position Sensor

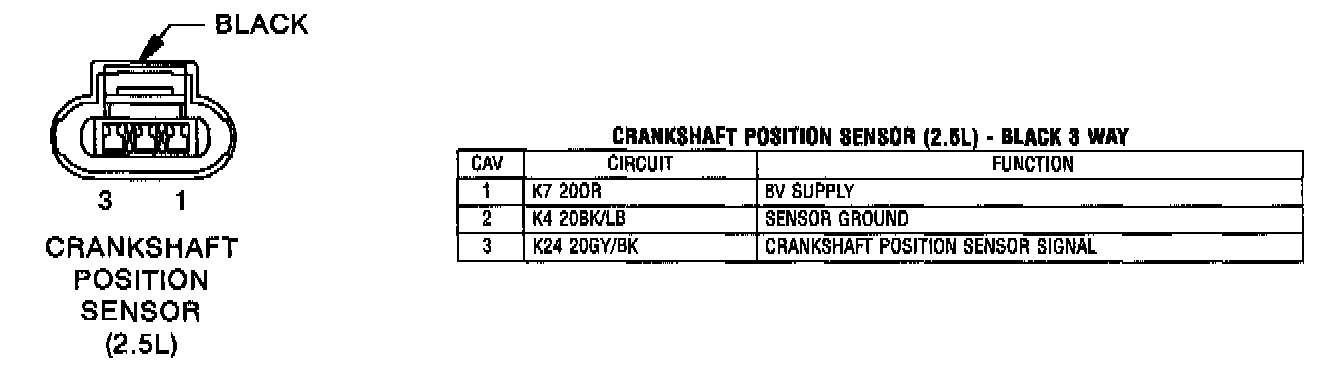

Crankshaft Position Sensor Black 3 Way:

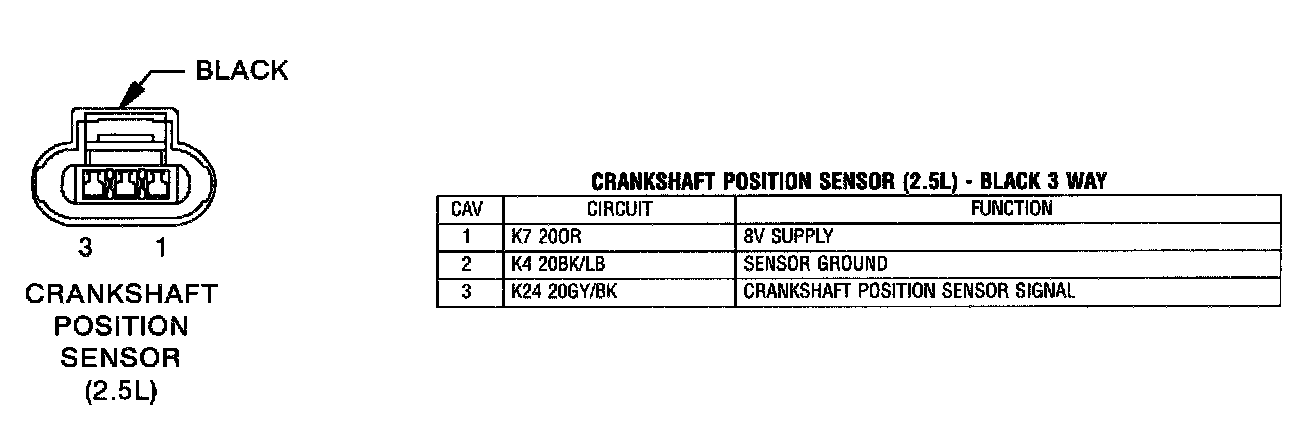

Crankshaft Position Sensor (2.5L) - Black 3 Way:
