Left Rear Sensor Circuit Failure

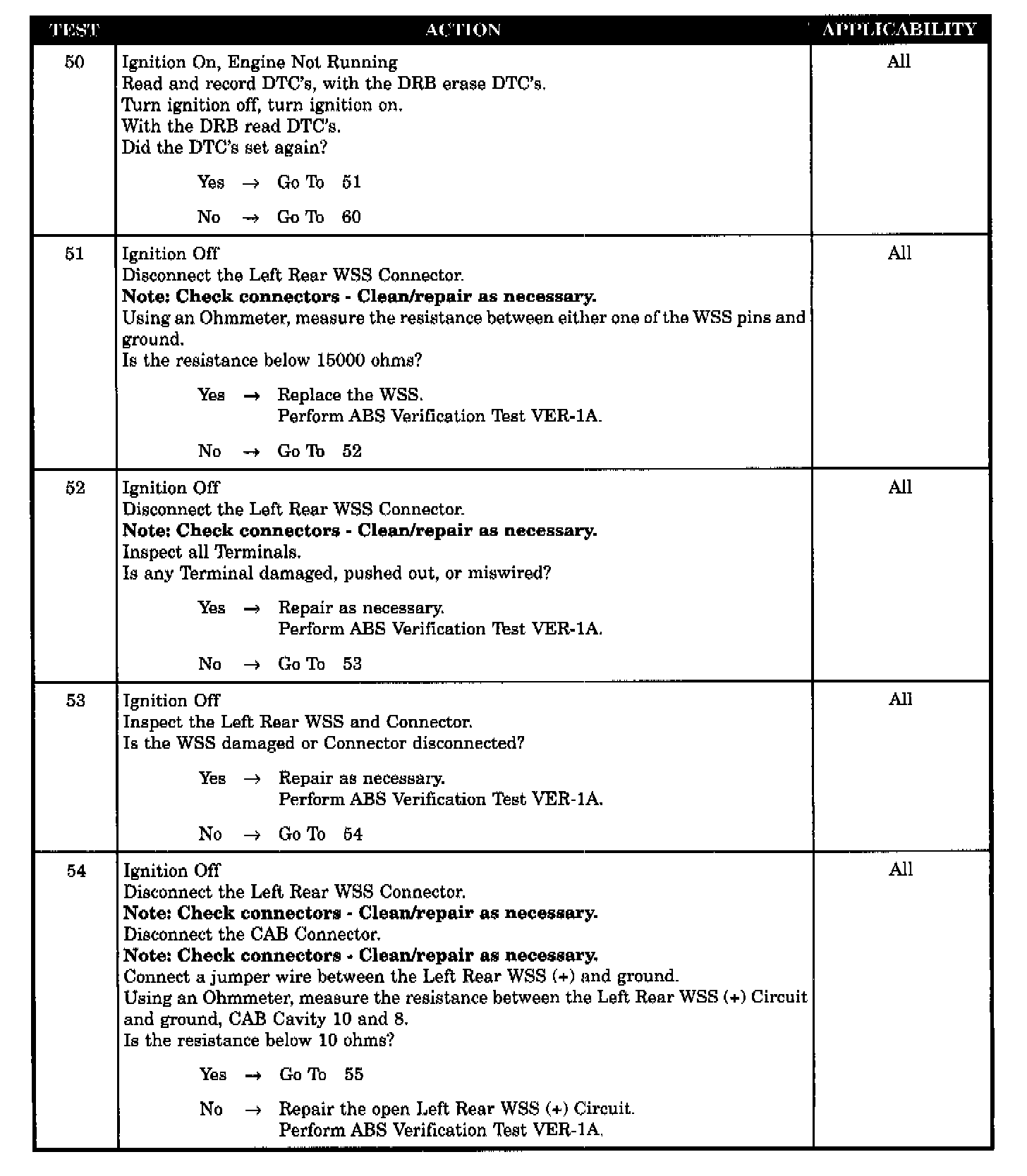

Tests 50 Through 54:

Tests 55 Through 59:

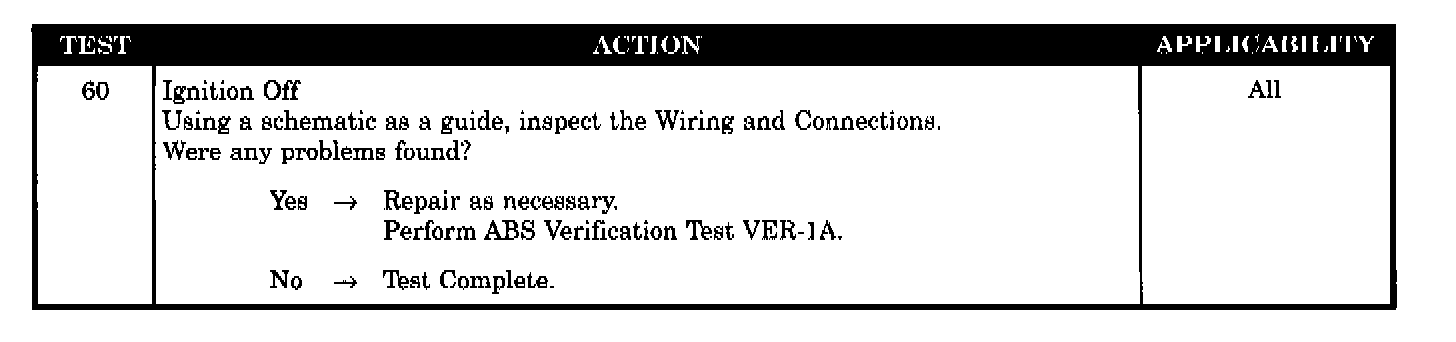

Test 60:

Symptom
LEFT REAR SENSOR CIRCUIT FAILURE


When Monitored
1. Ignition on.
2. The CAB monitors the wheel speed circuit continuity at all times.

Set Condition
If the CAB detects an open or shorted wheel speed sensor circuit, the diagnostic trouble code (DTC) is set.

POSSIBLE CAUSES
WIRING AND CONNECTORS OBSERVABLE DEFECT
WSS CONNECTOR OBSERVABLE DAMAGE
WSS DAMAGED OR CONNECTOR DISCONNECTED
WSS (+) CIRCUIT OPEN
WSS (+) CIRCUIT SHORTED TO GROUND
WSS (-) CIRCUIT OPEN
WSS (-) CIRCUIT SHORTED TO GROUND
CAB DEFECTIVE
WSS DEFECTIVE (ISOLATION CHECK)
WSS DEFECTIVE (RESISTANCE CHECK)
