Wiper Blade: Description and Operation
SYSTEM OPERATIONWiper Blade - Typical:

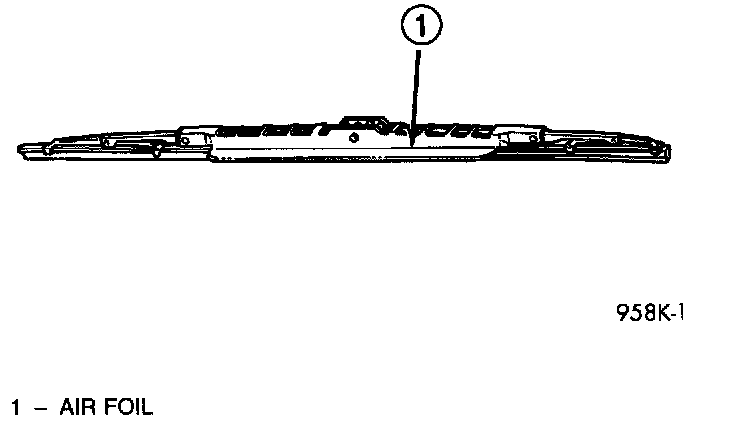

When the wiper blade rubber element is exposed to the weather for a long period of time, it tends to lose wiping ability. Periodic cleaning of the wiper blade element is suggested to remove the accumulation of salt and road film. The wiper blades, arms, and windshield should be cleaned with a sponge or cloth and a mild detergent or non-abrasive cleaner. If the blades continue to streak or smear, they should be replaced. The driver and the passenger blade elements are 550 mm in length. Only the driver's side wiper blade has a air foil on it.
