Wiper Arm Linkage or Cap

REMOVAL
1. Remove wiper arms and blades.
2. Remove the cowl screen.
3. Remove wiper motor assembly.

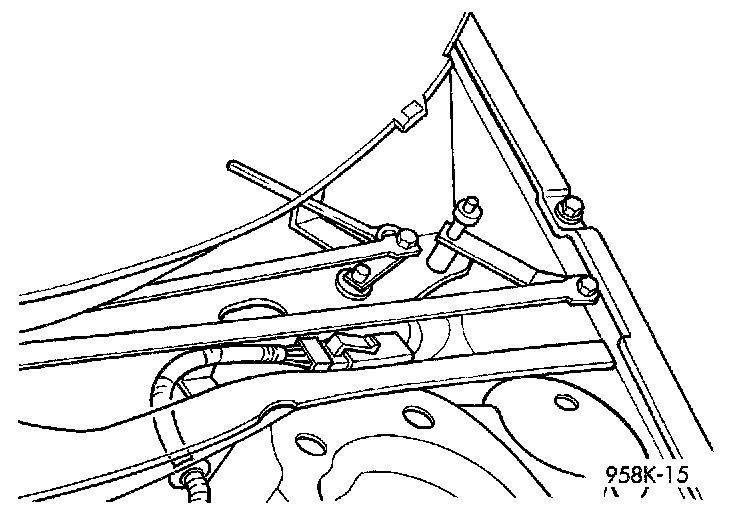

Linkage Removal:

4. Disconnect wiper arm linkage, by using an ball joint/tie rod separator, separate the right and left ball cap from the ball.
5. Disconnect drive link from the motor crank. Using an ball joint/tie rod separator and separate the ball cap from the ball.

INSTALLATION
For installation reverse the above procedures. Align link ball cap over ball and gently press fit against shoulder of cap to lock cap into position. If motor output crank nut was removed, tighten nut to 25 to 30 N.m (19 to 23 ft. lbs.).
