Windshield Washer Reservoir: Service and Repair

REMOVAL
1. Disconnect washer fluid hose at in4ine connector on top of the right shock tower.
2. Partially remove bumper fascia as needed to gain access to the reservoir.

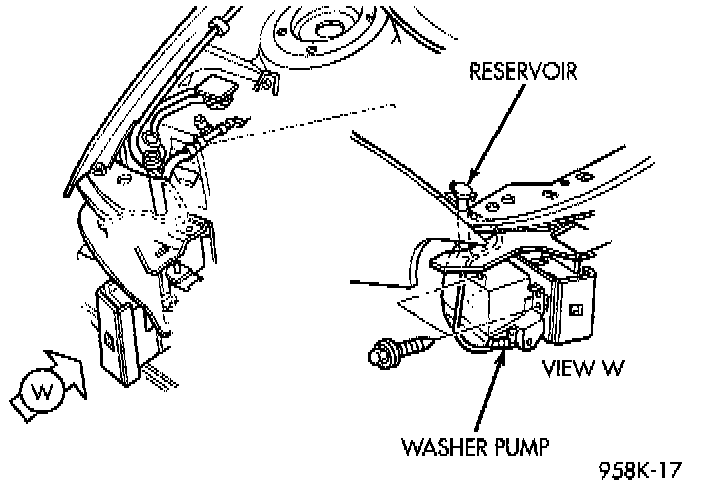

Reservoir Removal:

3. Disconnect wire connector from washer pump and harness mounting tab.
4. Slide rearward and drop down and away from vehicle.
5. Drain washer fluid from reservoir into an appropriate container.
6. Disconnect the washer hose from the reservoir.

INSTALLATION
For installation, reverse the above procedures.
