Windshield Washer Pump: Service and Repair

Washer Pump:

REMOVAL
1. Partially remove the bumper fascia as needed to gain access to the reservoir pump.
2. Place a drain bucket below the reservoir to catch any washer solvent that may leak out.

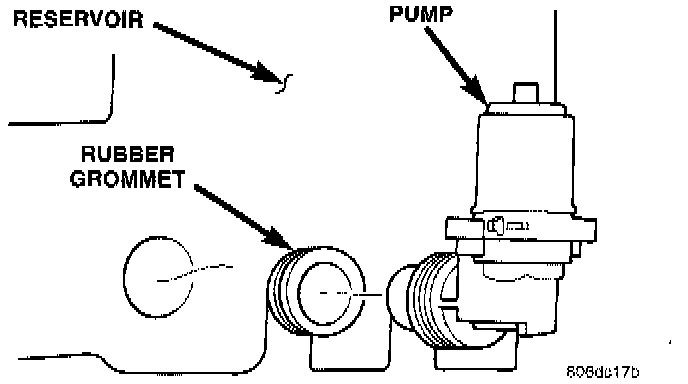

3. Firmly grasping pump by hand twist and pull away from reservoir and out of grommet. Care must be taken not to puncture reservoir.
4. Remover rubber grommet from reservoir and throw away.

INSTALLATION
For installation, reverse the above procedures.
- A new grommet is required for installation.
- Refill reservoir with washer solvent.
