Quarter Window

QUARTER GLASS REMOVAL

NOTE: No access is provided to glass fasteners except if glass is in the full up position. If this position can not be achieved, remove the quarter window module. Refer to quarter window module procedure.

1. Raise glass to full up position.
2. Remove quarter trim panel.
3. Partially lower convertible top.

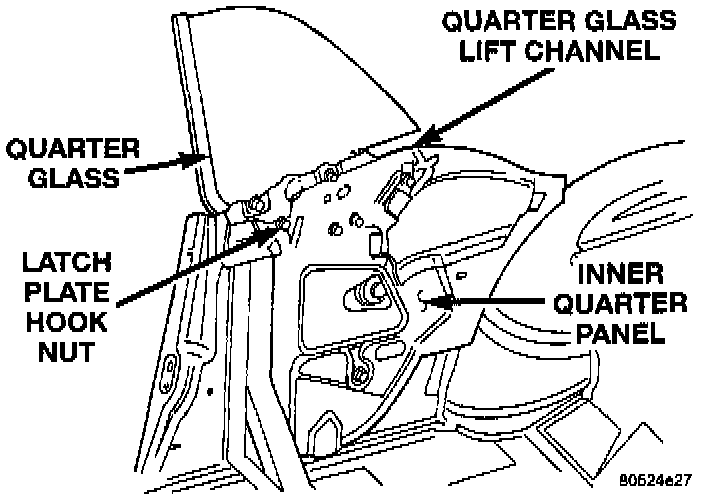

Quarter Glass:

4. Remove fasteners attaching glass to lift channel of quarter window module.
5. Loosen latch plate hook nut.
6. Separate glass from vehicle.

INSTALLATION
1. Position glass in vehicle.
2. Loosely install fasteners holding glass to lift channel of quarter window module.
3. Lower and secure convertible top.
4. Tighten latch plate hook nut.
5. Adjust quarter glass as necessary. Refer to quarter glass adjustment procedure.
6. Install quarter trim panel.

QUARTER WINDOW MODULE REMOVAL
1. Raise quarter glass to full up position, if possible, to aid in removal.
2. Remove quarter trim panel.
3. Partially lower convertible top.
4. Disconnect wire connector to power window motor.

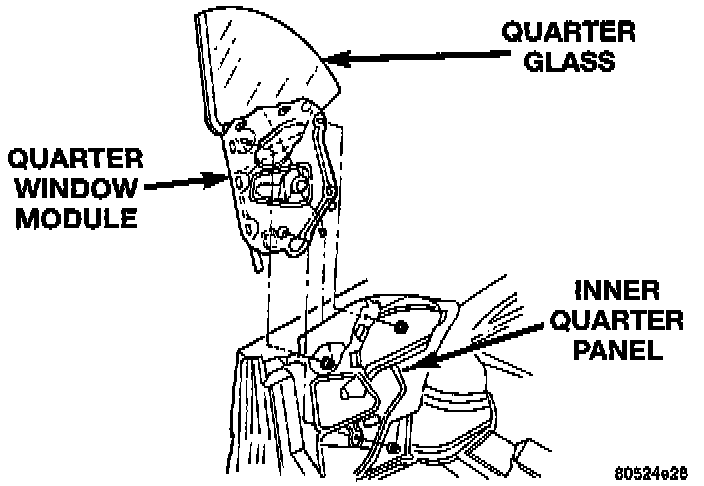

Quarter Glass Module:

5. Remove fasteners holding quarter window module to inner quarter panel.
6. Lift quarter window module upward and out opening at top of quarter panel.

Quarter Glass:

7. Separate quarter glass from quarter window module.

INSTALLATION
1. Lower quarter window module into position through opening in top of quarter panel.
2. Install fasteners holding quarter window module to inner quarter panel.
3. Connect wire connector to power window motor.
4. Raise glass lift channel to full up position.
5. Position quarter glass on quarter window module.
6. Loosely install fasteners holding quarter glass to quarter window module.
7. Lower and secure convertible top.
8. Adjust quarter glass as necessary. Refer to quarter glass adjustment procedure.
9. Install quarter trim panel.
