Carrier Side Gears: Testing and Inspection

Check side gear end play whenever the differential is removed for service.

NOTE: Side gear end play must be BETWEEN 0.001 to 0.013 inch.

ASSEMBLE

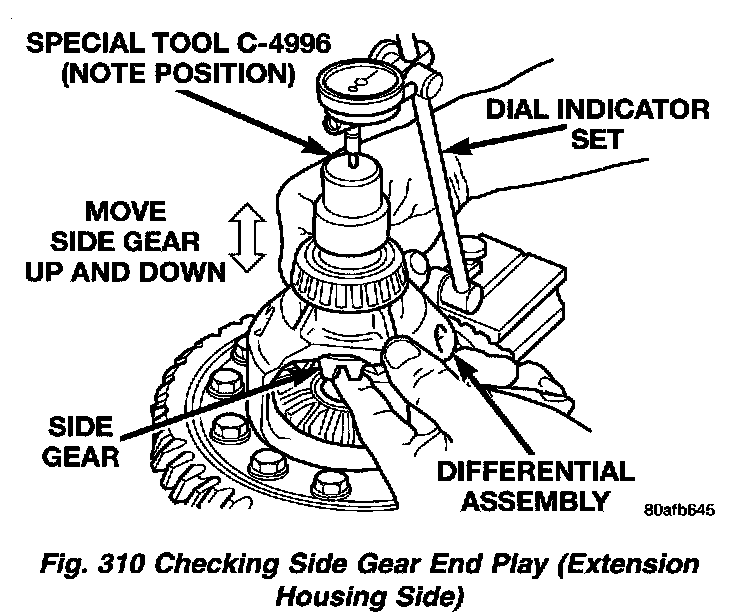

Fig. 310:

NOTE: Use MOPAR, Silicone Rubber Adhesive Sealant, or equivalent, on retainer and extension housing/adapter plate to seal to case.

Fig. 311:

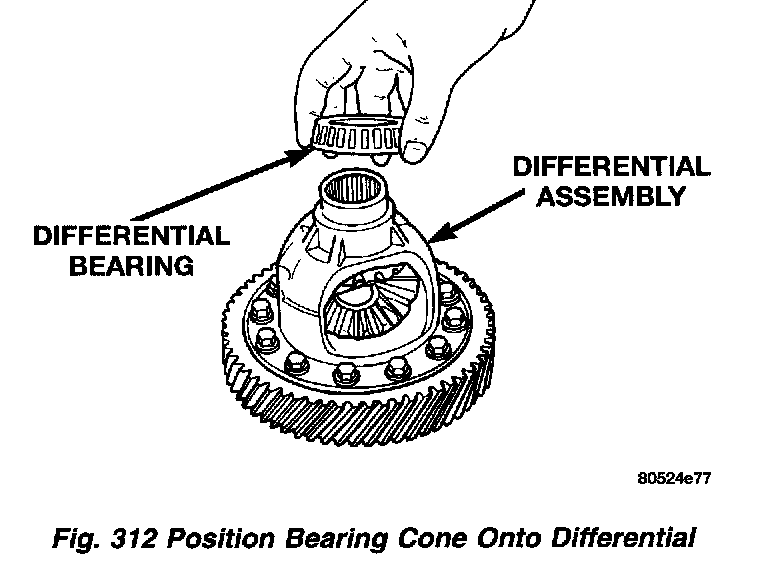

Fig. 312:

1. Using Miller Special Tool L-4410, and C-4171, install differential bearing to differential (extension housing side).
2. Using Miller Special Tool 5052 and C-4171, install differential bearing to differential (bearing retainer side).

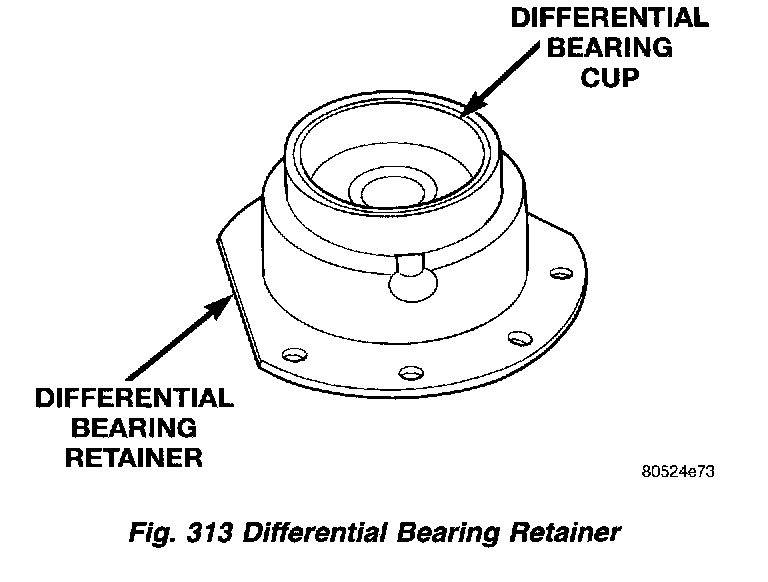

Fig. 313:

3. Using Miller Special Tool 6061 and C-4171, install differential bearing race to bearing retainer.
4. Using Miller Special Tool L-4520 and C-4171, install differential bearing to extension housing.
