Part 1 of 2

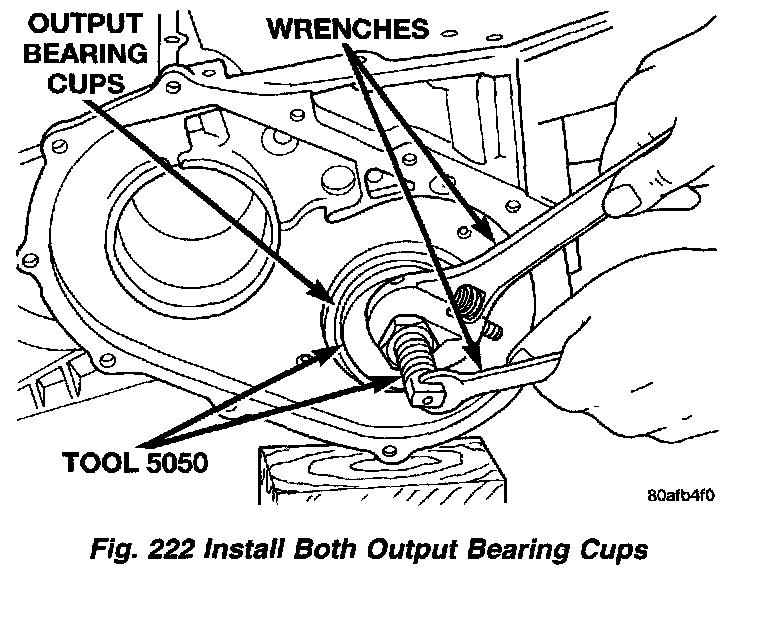

Fig. 222:

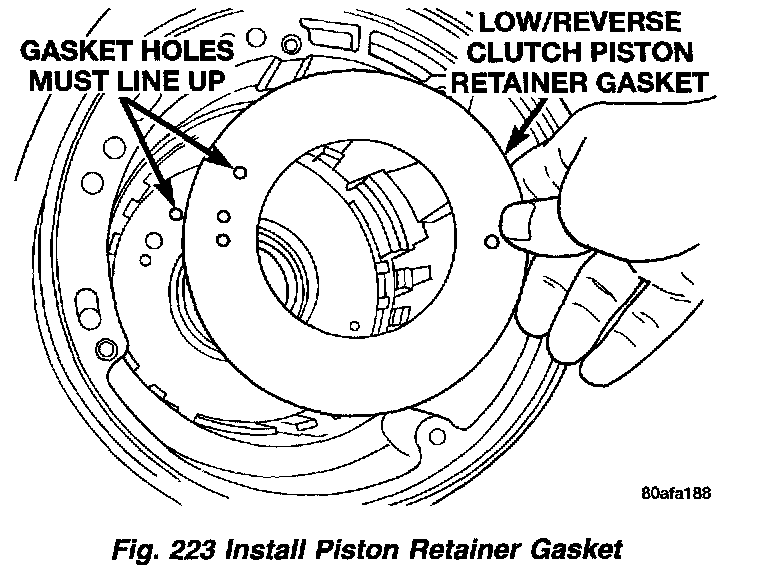

Fig. 223:

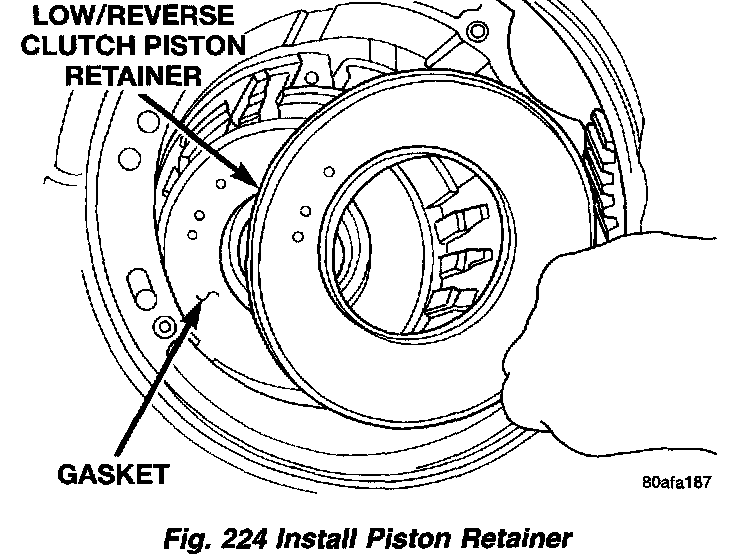

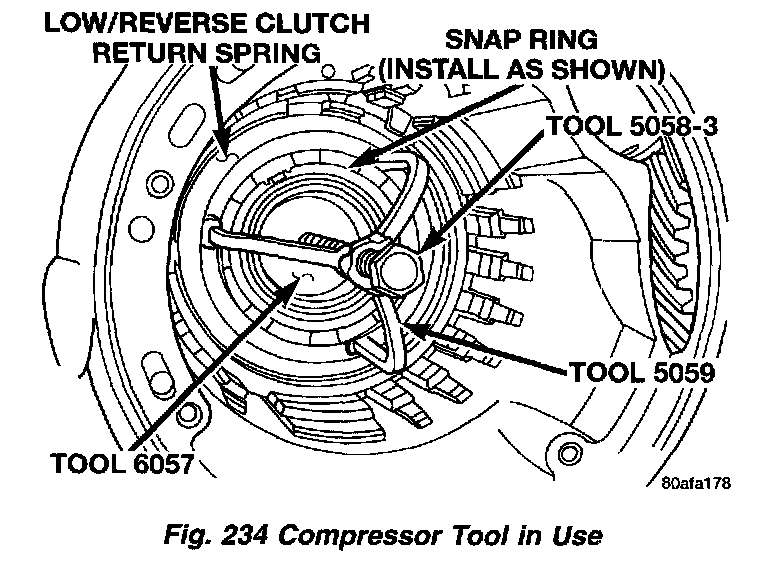

Fig. 224:
Fig. 225:

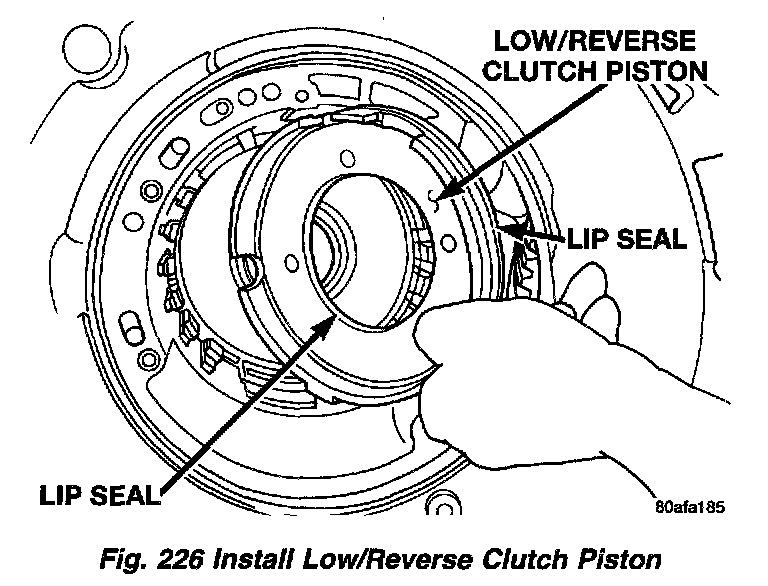

Fig. 226:

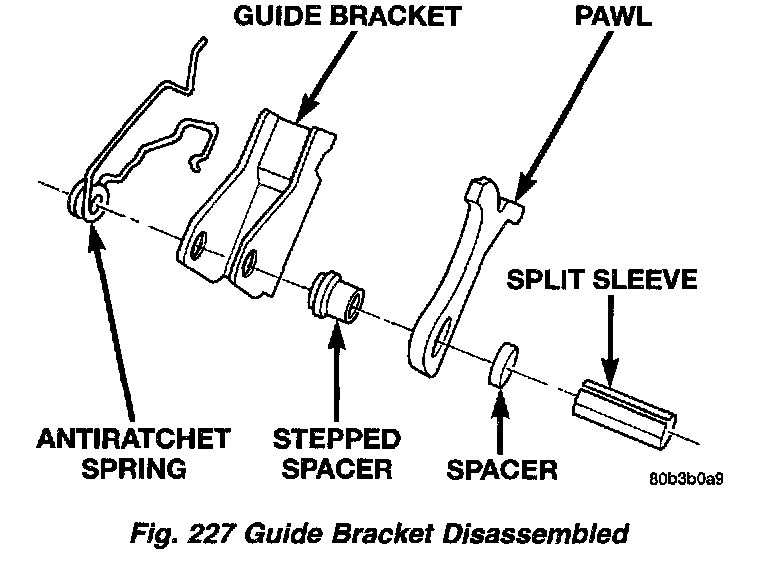

Fig. 227:

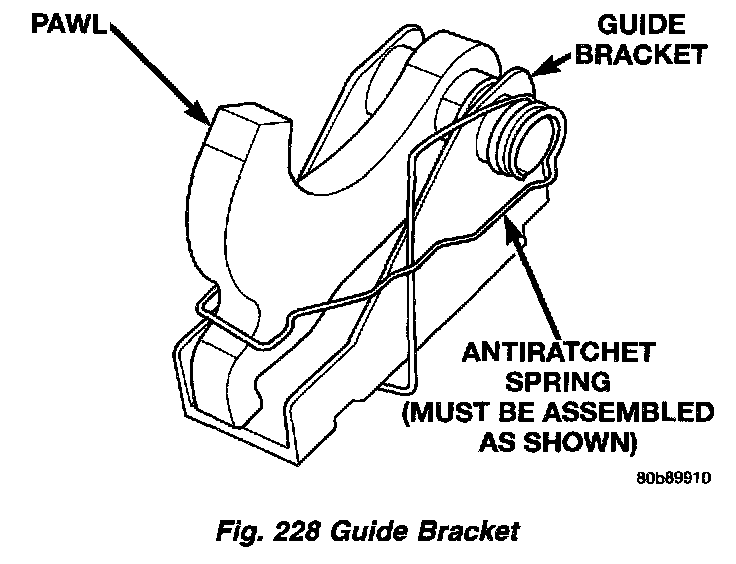

Fig. 228:

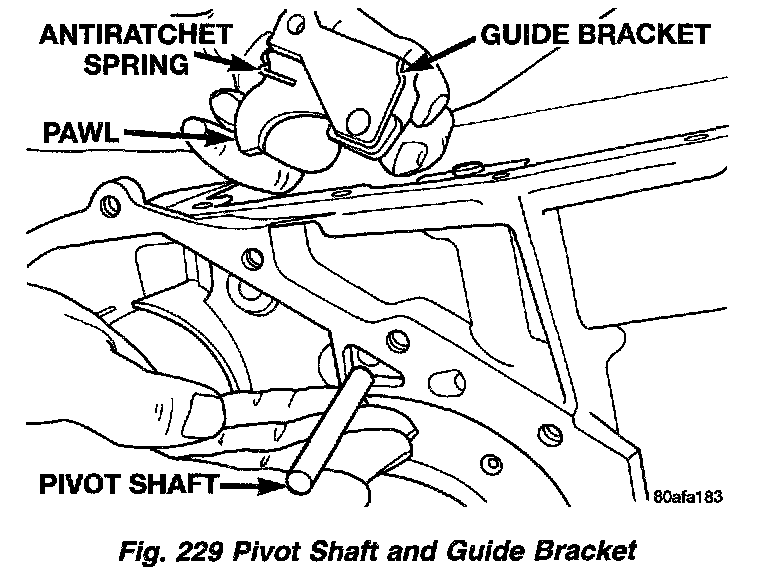

Fig. 229:

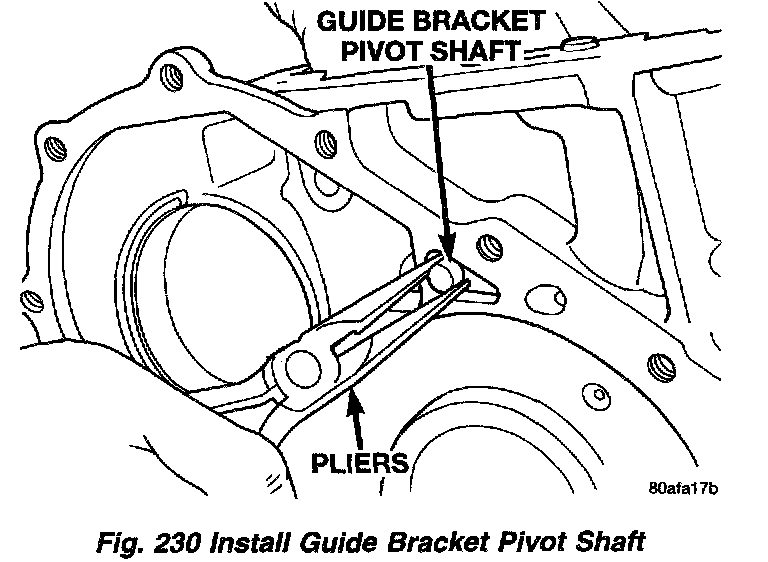

Fig. 230:

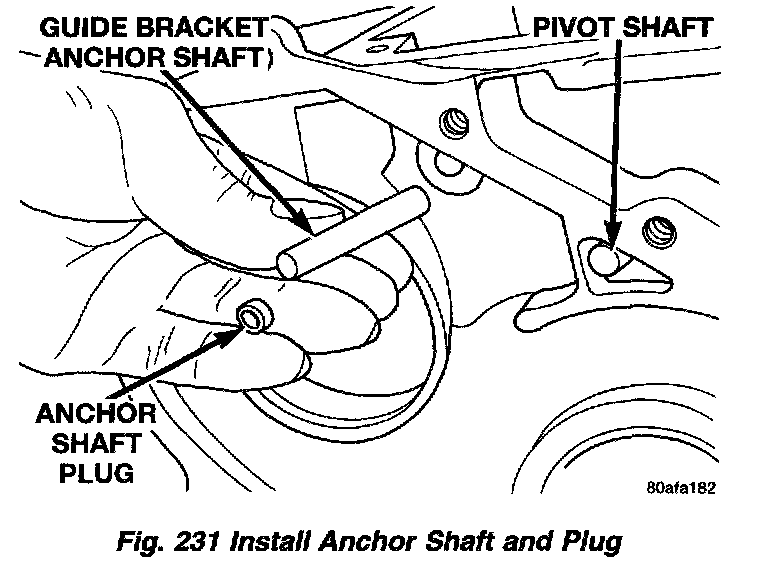

Fig. 231:
To assemble the transaxle centerline, refer to the following procedures.

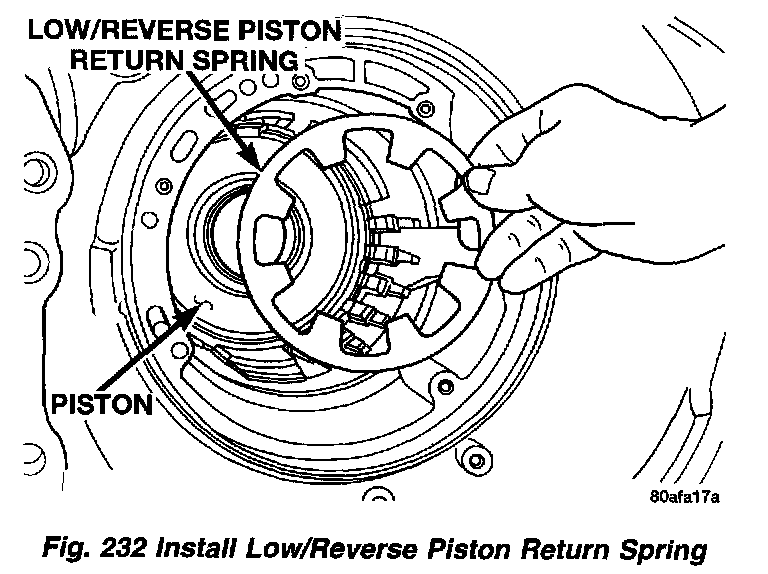

Fig. 232:

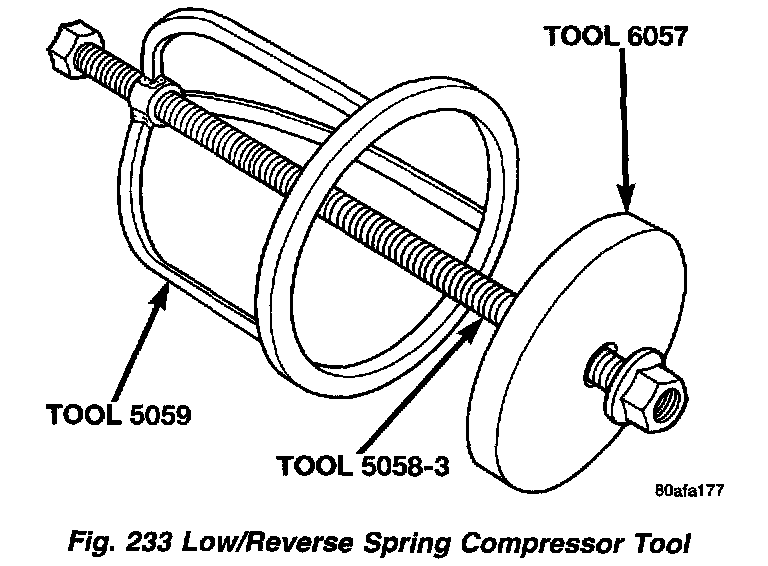

Fig. 233:
Fig. 234:

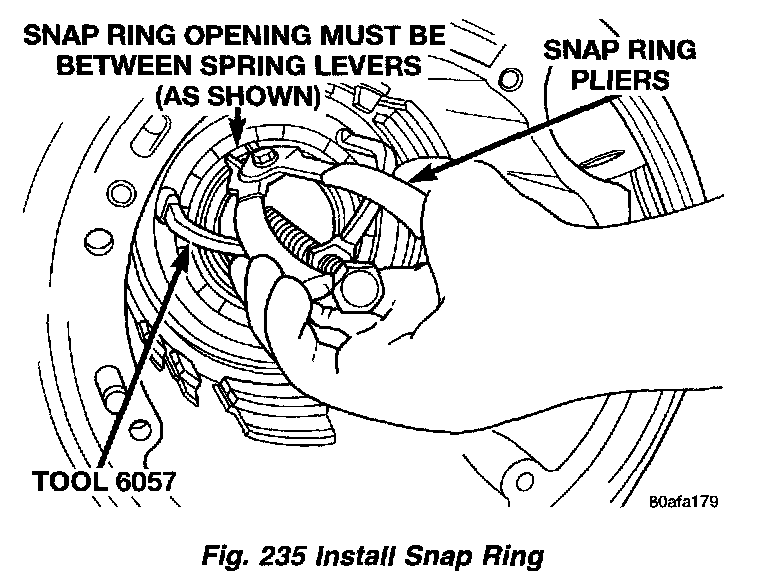

Fig. 235:

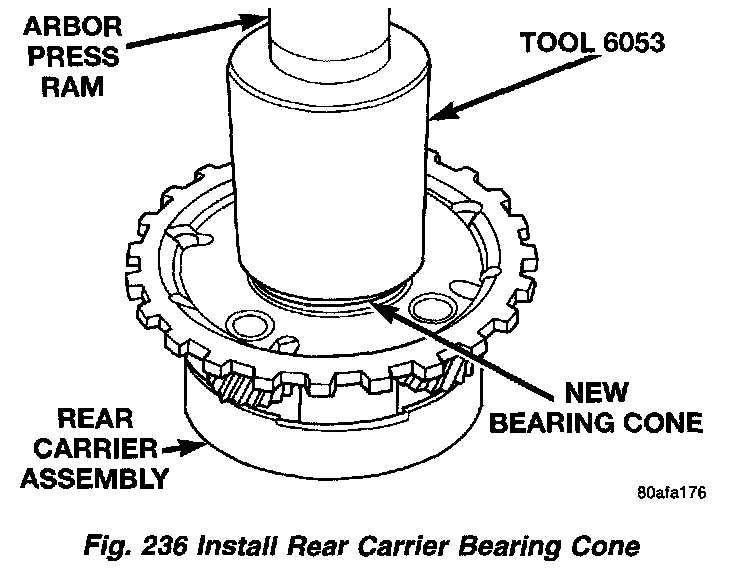

Fig. 236:

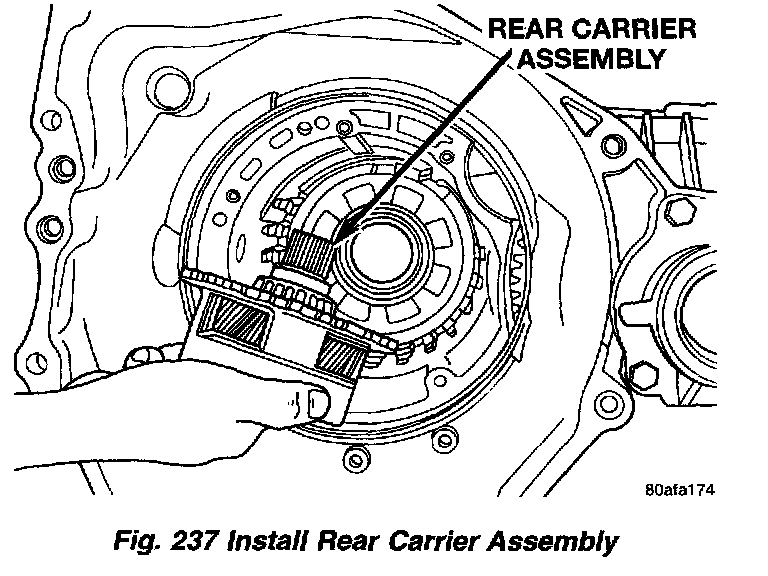

Fig. 237:

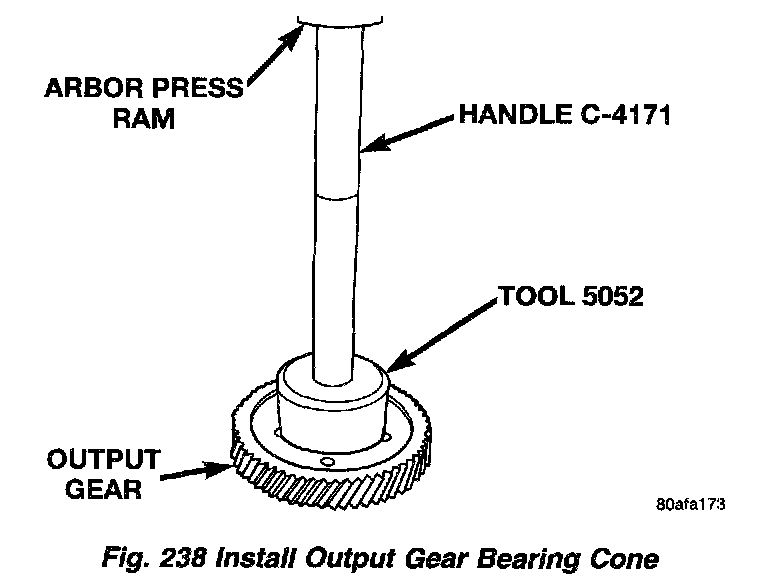

Fig. 238:
CAUTION: When installing, be sure guide bracket and split sleeve touch the rear of the transaxle case.
OUTPUT GEAR BEARING ADJUSTMENT
1. With output gear removed: install a 4.50 mm (0.177 inch) gauging shim on the rear carrier assembly hub, using grease to hold the shim in place.
2. Using Tool 6259, install output gear and bearing assembly. Torque to 271 Nm (200 ft. lbs.).
To measure bearing end play:
3. Attach Tool L-4432 to the gear.
4. Push and pull the gear while rotating back and forth to insure seating of the bearing rollers.

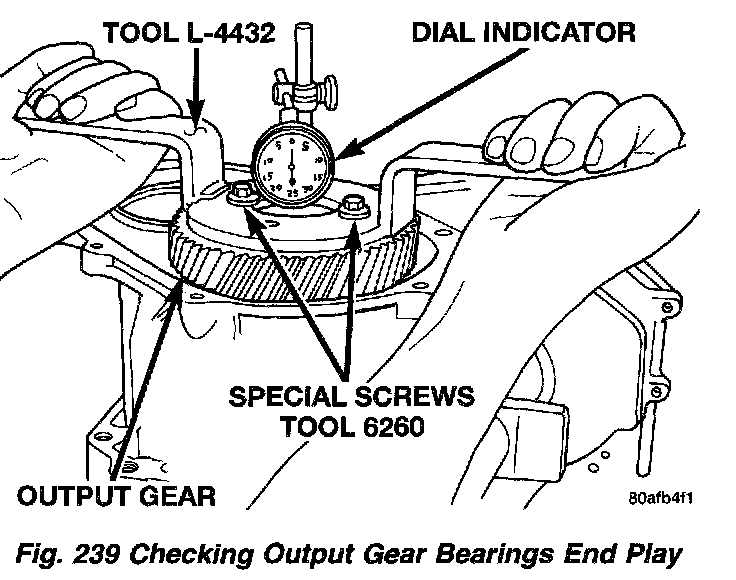

5. Using a dial indicator, mounted to the transaxle case, measure output gear end play (Fig. 239).
Fig. 239:

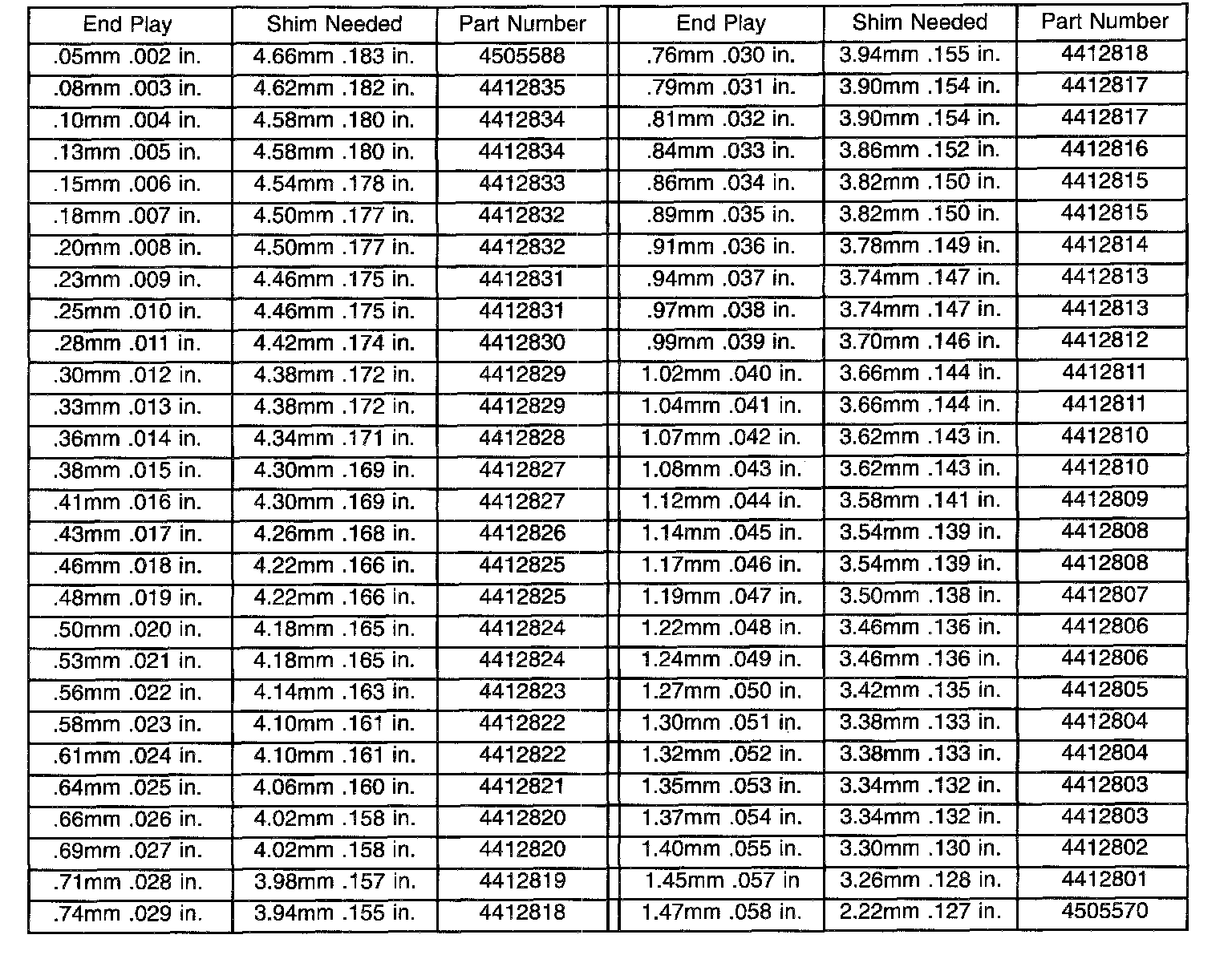

6. Refer to the output gear bearing shim chart for the required shim to obtain proper bearing setting.
7. Use Tool 6259 to remove the retaining bolt and washer. To remove the output gear, use Tool L-4407.

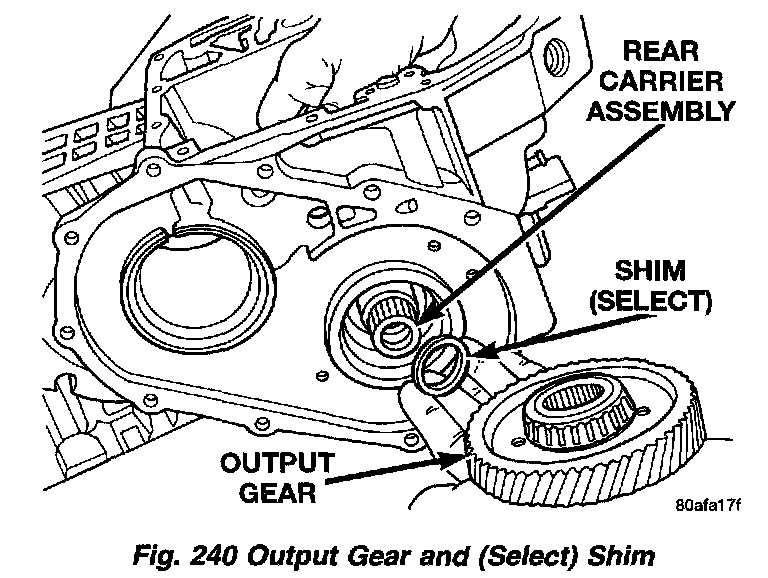

Fig. 240:

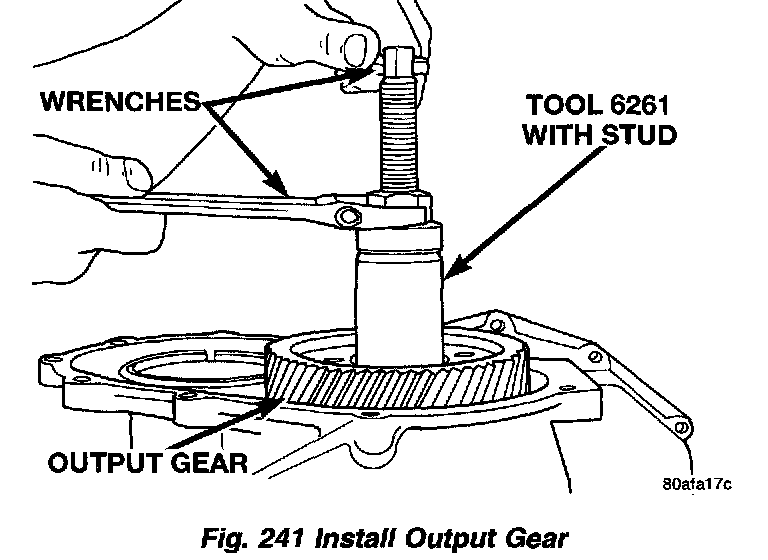

Fig. 241:
8. Remove the gauging shim and install the proper shim (Fig. 240). Use grease to hold the shim in place. Install the output gear and bearing assembly (Fig. 241).
CAUTION: Always use new retaining bolt, old retaining bolt may not be reused.

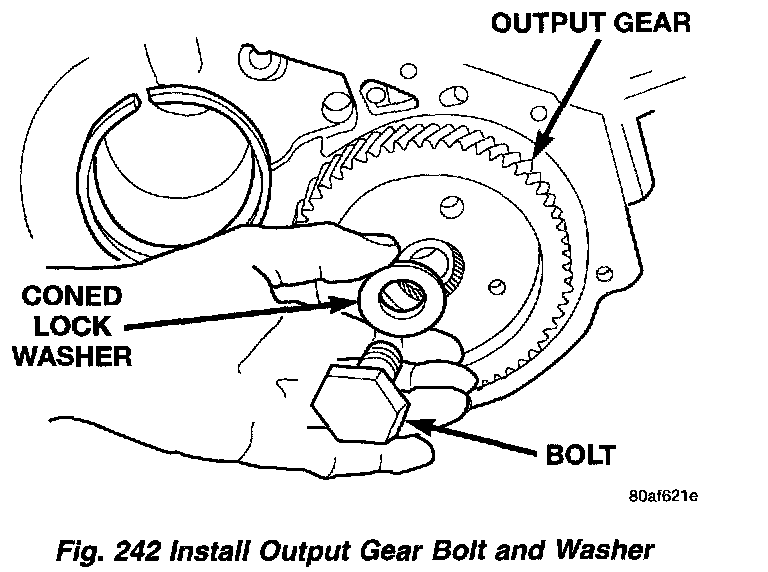

Fig. 242:

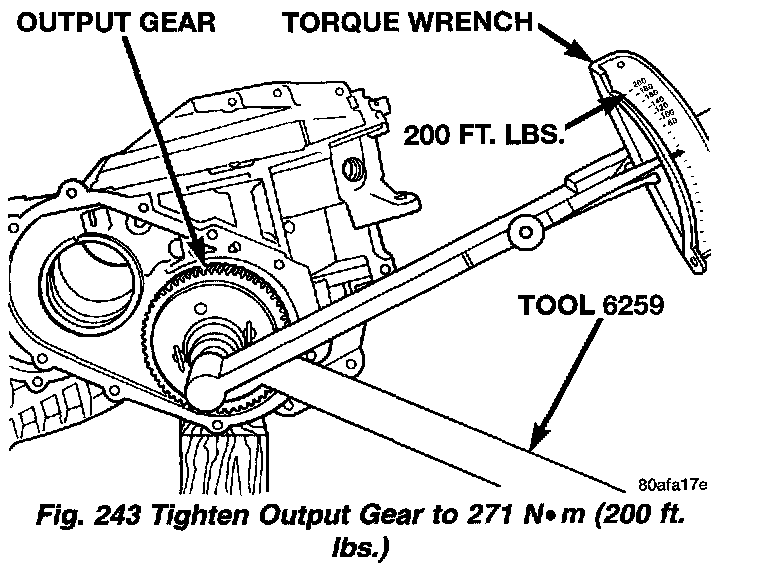

Fig. 243:
9. Install the new retaining bolt and washer (Fig. 242). Tighten to 271 Nm (200 ft. lbs.) (Fig. 243).

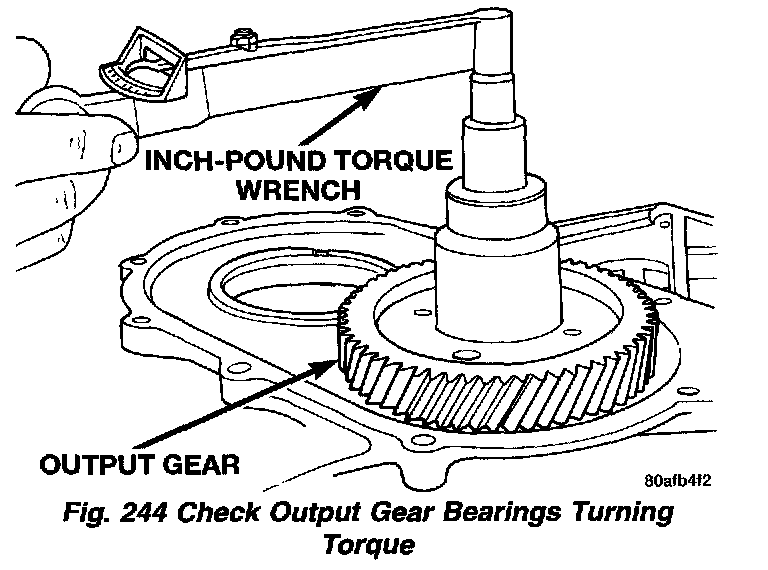

Fig. 244:
10. Using an inch-pound torque wrench, check the turning torque (Fig. 244). The torque should be between 3 and 8 inch-pounds.
If the turning torque is too high, install a 0.04 mm (.0016 inch) thicker shim. If the turning torque is too low, install a 0.04 mm (0.0016 inch) thinner shim. Repeat until the proper turning torque is 3 to 8 inch pounds.
NOTE: Install output gear stirrup and strap bolts.

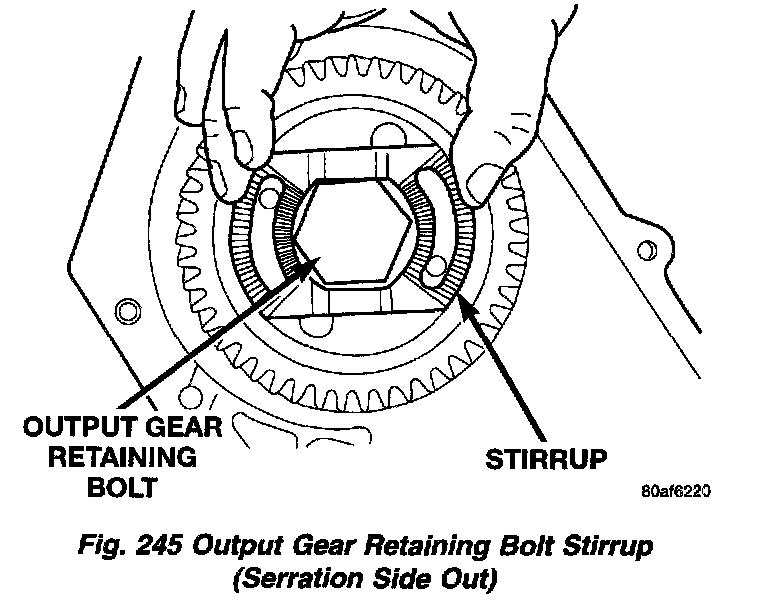

Fig. 245:

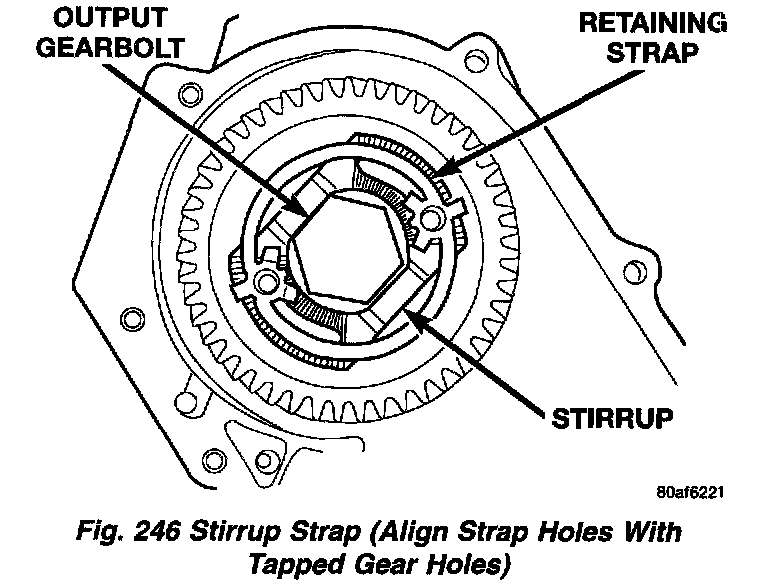

Fig. 246:

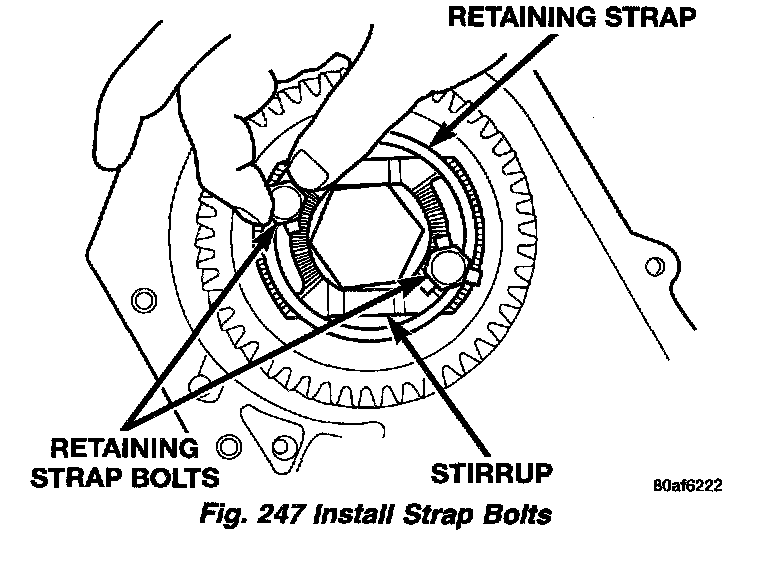

Fig. 247:

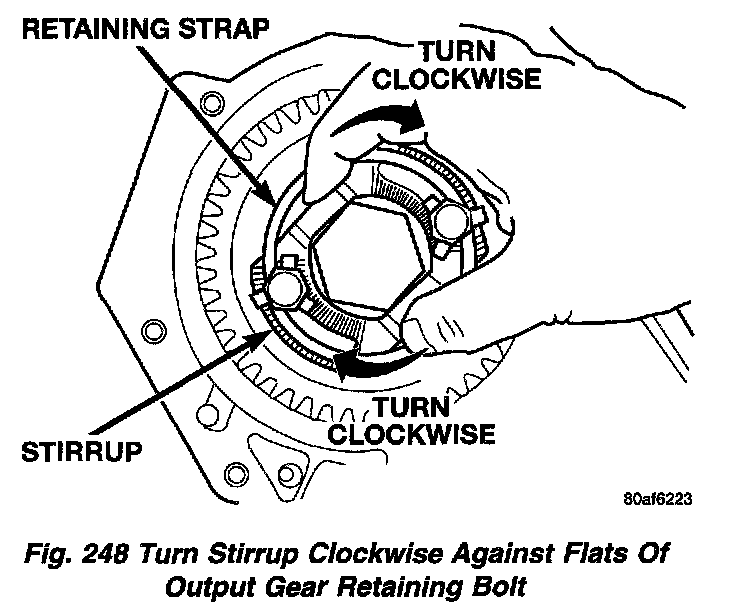

Fig. 248:

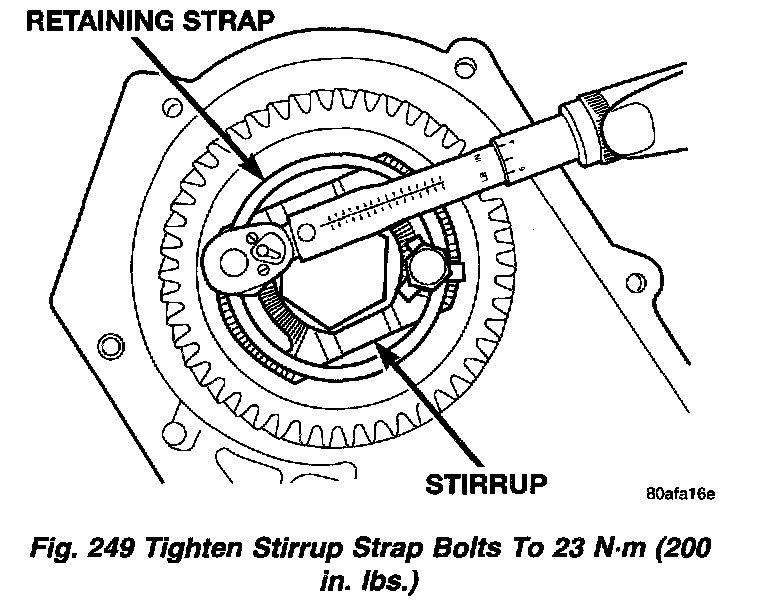

Fig. 249:

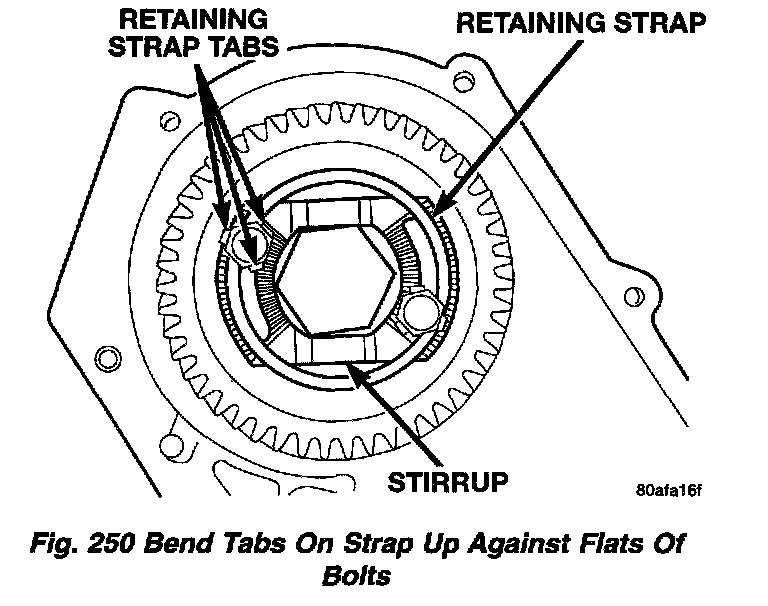

Fig. 250:

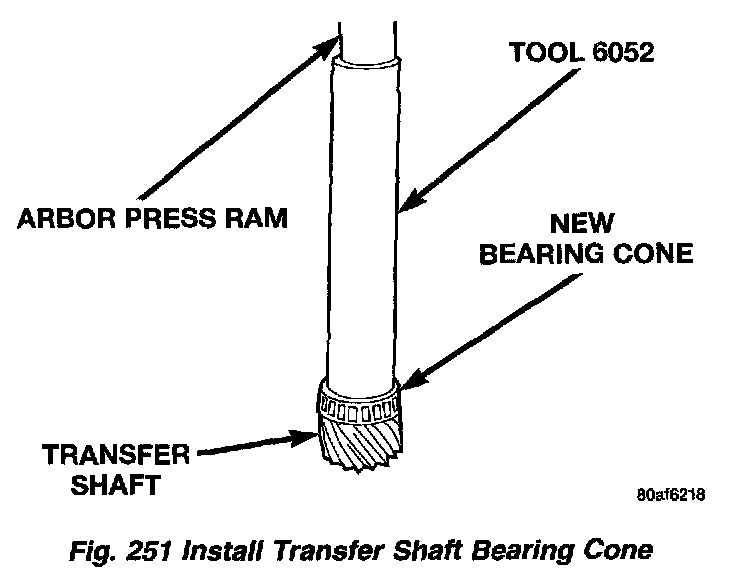

Fig. 251:
Fig. 252:
All transaxles utilize a stirrup and retaining strap that is attached to the output gear. The stirrup prevents the output gear retaining bolt from turning and backing out of the rear carrier. The strap is used to hold the stirrup to the output gear and prevent the stirrup retaining bolts from backing out.

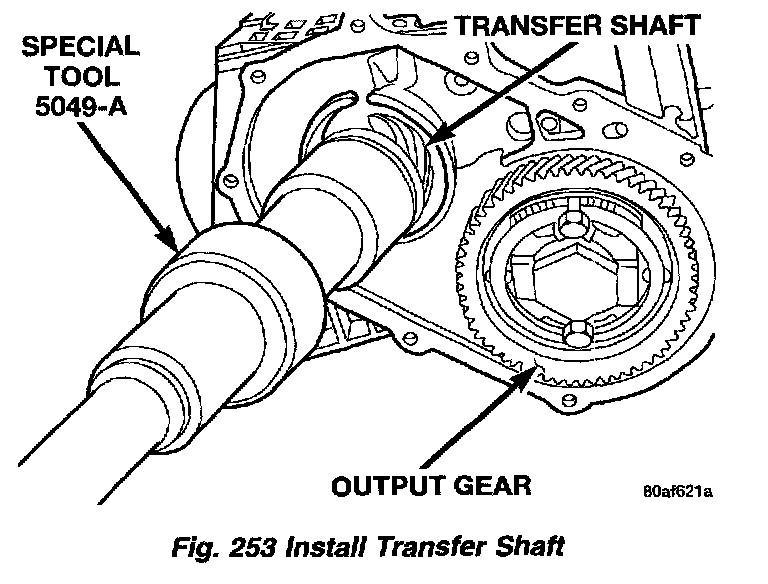

Fig. 253:

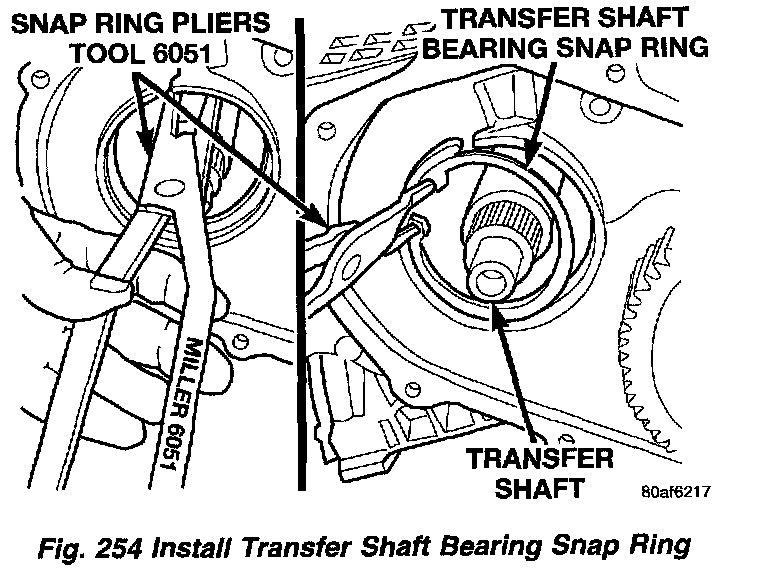

Fig. 254:

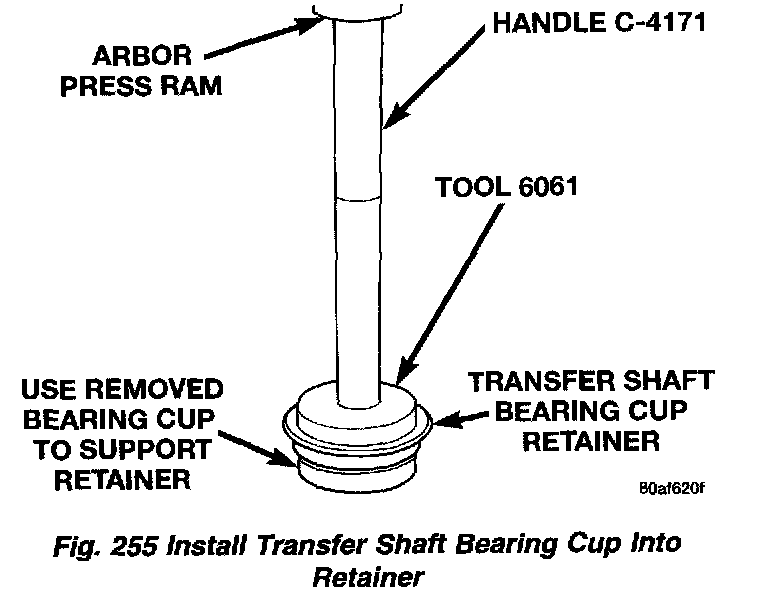

Fig. 255:

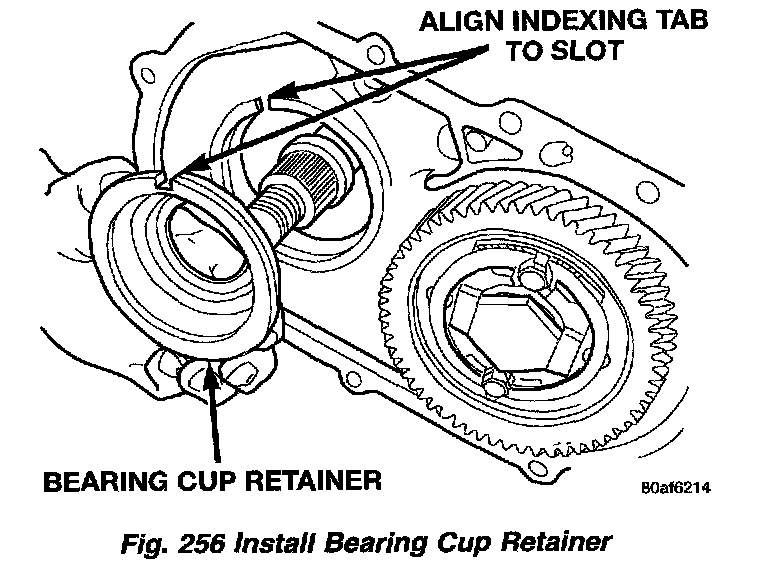

Fig. 256:
Fig. 257:
NOTE: Screw Tool 5049-A onto transfer shaft. Install transfer shaft.
TRANSFER SHAFT BEARING
1. Install a 4.66 mm (0.184 inch) gauging shim on the transfer shaft.
2. Install transfer shaft gear and bearing assembly and torque the nut to 271 Nm (200 ft. lbs.). To measure bearing end play:
- Attach Tool L-4432 to the transfer gear.
- Mount a steel ball with grease into the end of the transfer shaft.
- Push and pull the gear while rotating back and forth to insure seating of the bearing rollers.
- Using a dial indicator, measure transfer shaft end play.

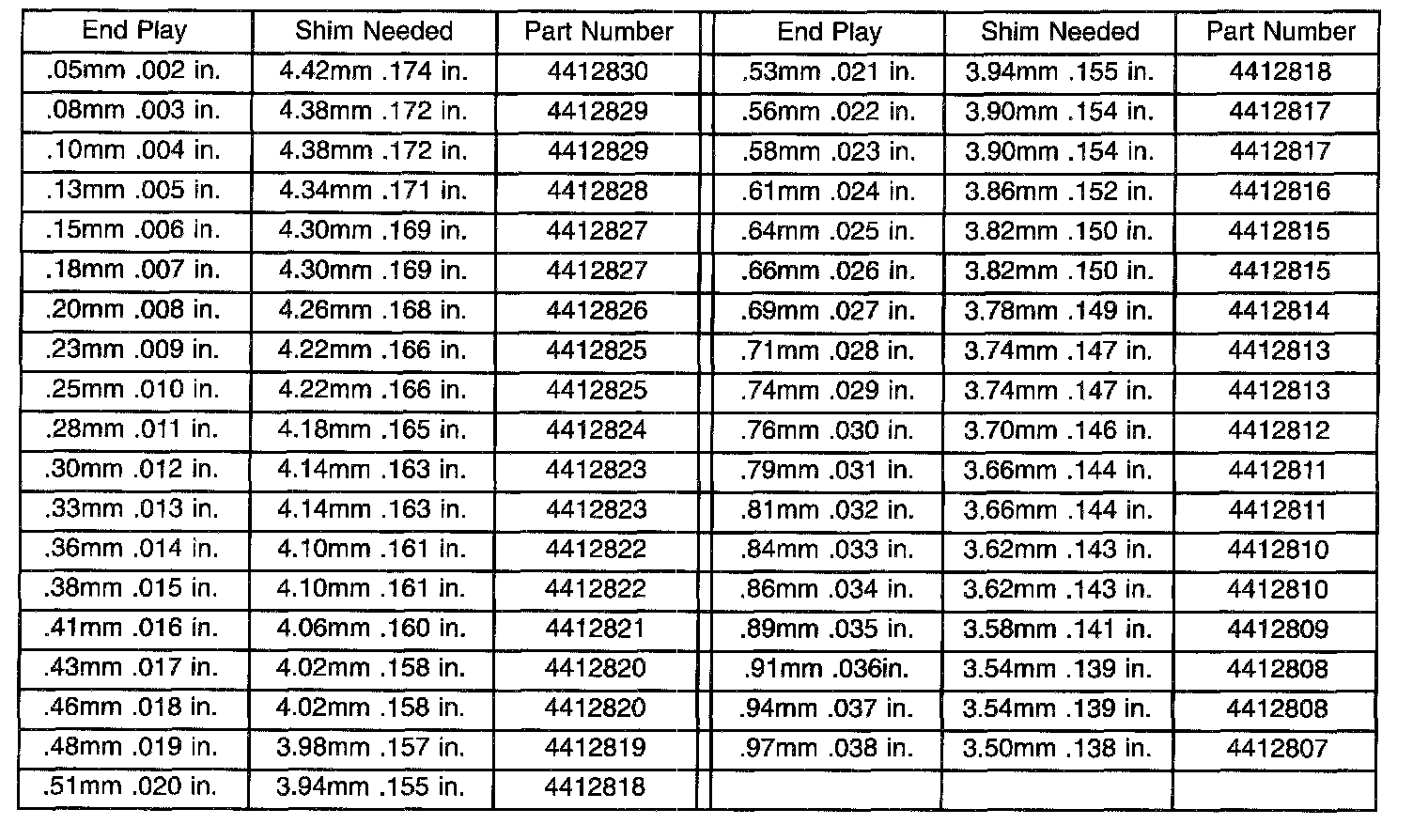

3. Refer to the Transfer Bearing Shim Chart for the required shim combination to obtain the proper bearing setting.
4. Use Tool 6259 to remove the retaining nut and washer. Remove the transfer shaft gear using Tool L-4407.

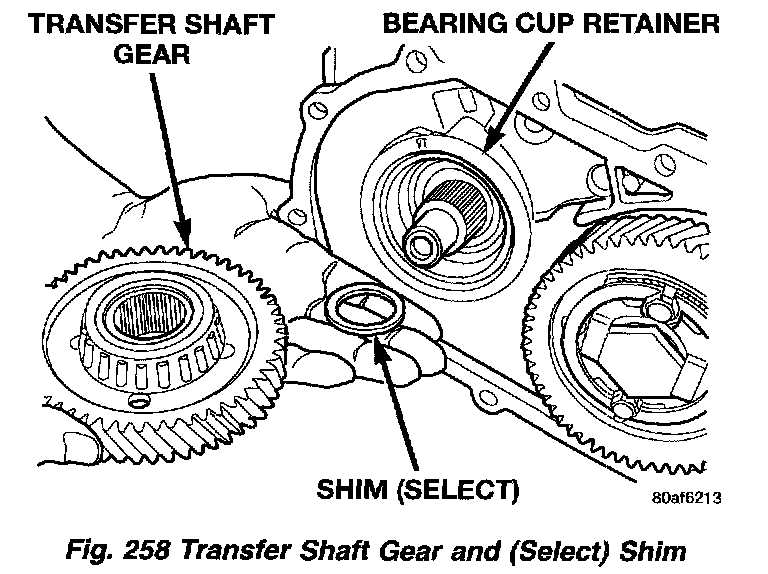

Fig. 258:

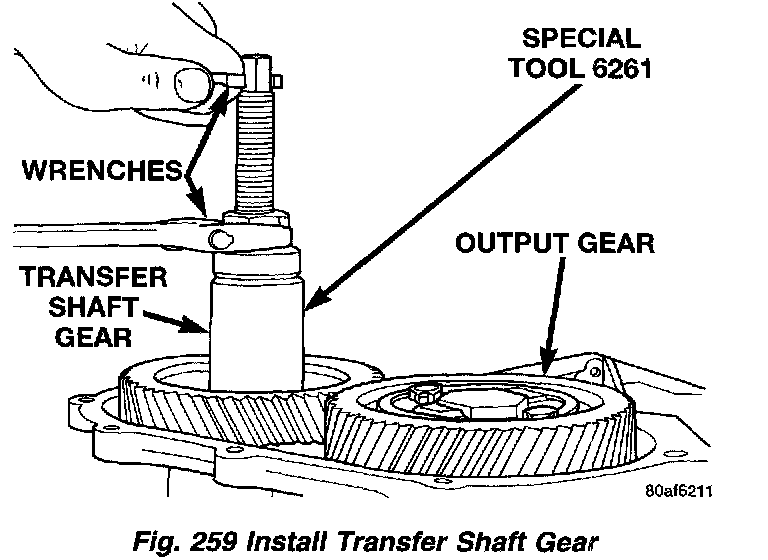

Fig. 259:
5. Remove the gauging shim and install the correct shim (Fig. 258). Install the transfer gear and bearing assembly (Fig. 259).
CAUTION: Original retaining nut may not be reused. Always use a new retaining nut when reassembling.

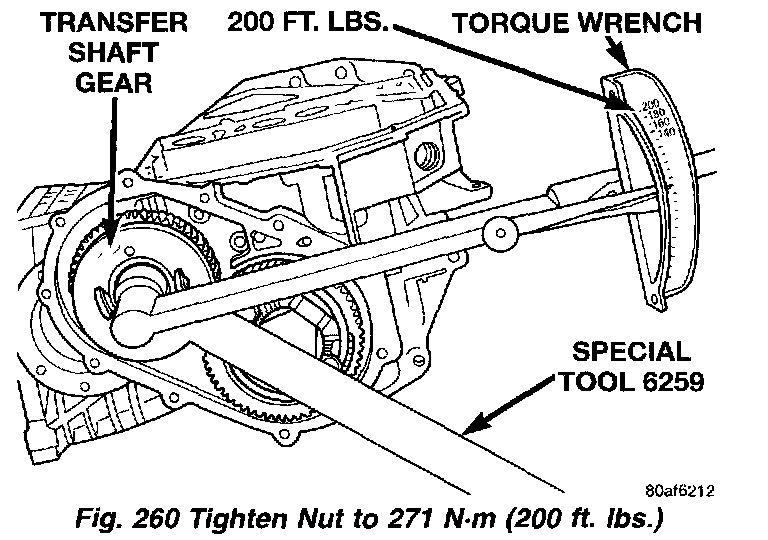

Fig. 260:
6. Install the new retaining nut and washer and torque to 271 Nm (200 ft. lbs.) (Fig. 260). Measure transfer shaft end play, end play should be 0.05 to 0.10 mm (0.002 to 0.004 inch).
7. Measure bearing end play as outlined in Step 3. End play should be between 0.05 mm and 0.10 mm (0.002 to 0.004 inch).

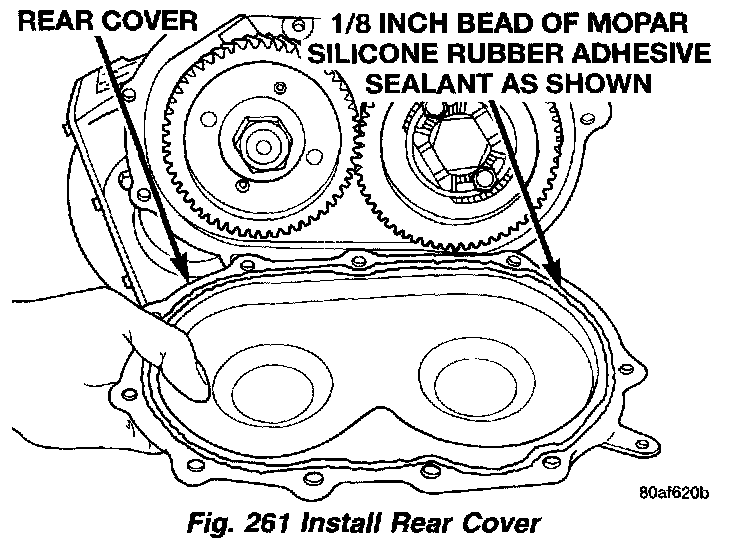

Fig. 261:

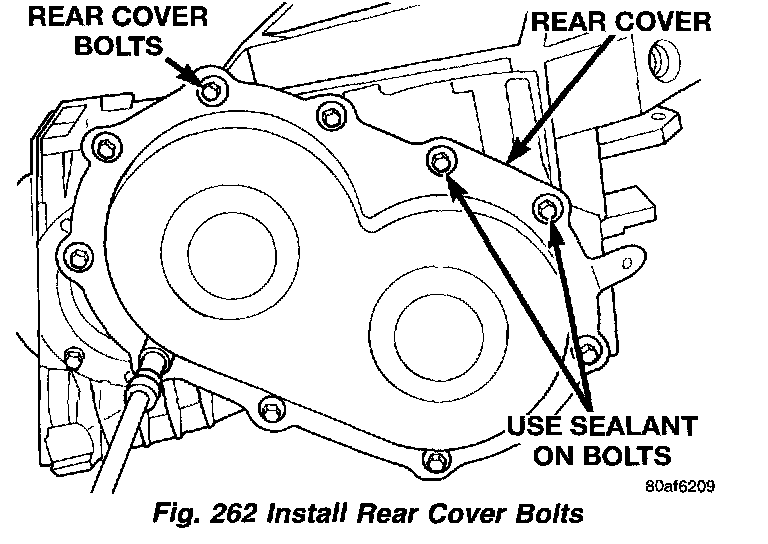

Fig. 262:

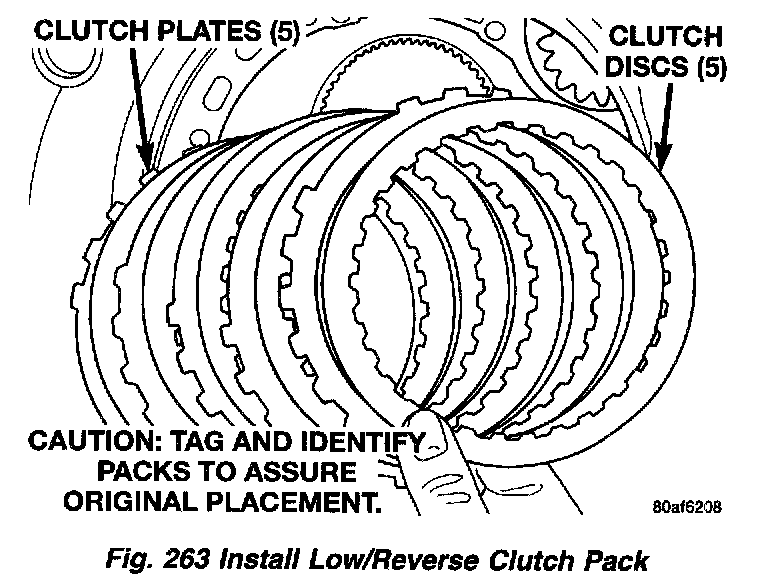

263:
Fig. 264:

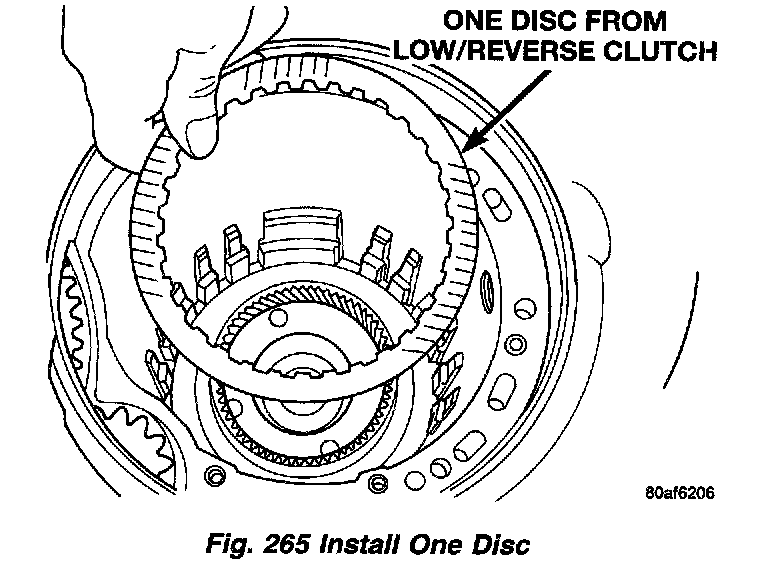

Fig. 265:
NOTE: If end play is too high, install a 0.04 mm (0.0016 inch) thinner shim. If end play is too low, install a 0.04 mm (0.0016 inch) thicker shim combination. Repeat until 0.05 to 0.10 mm (0.002 to 0.004 inch) end play is obtained.

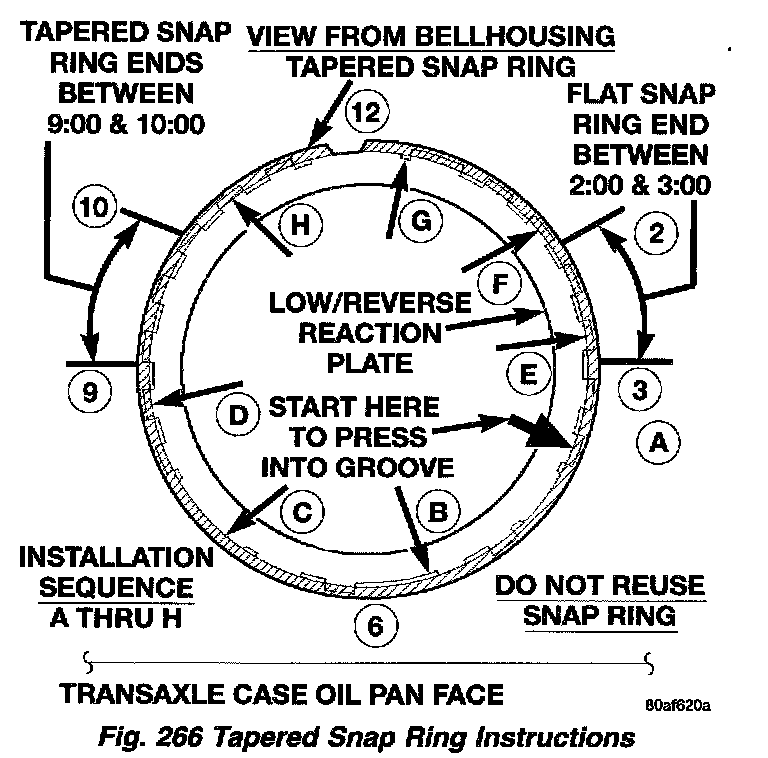

Fig. 266:

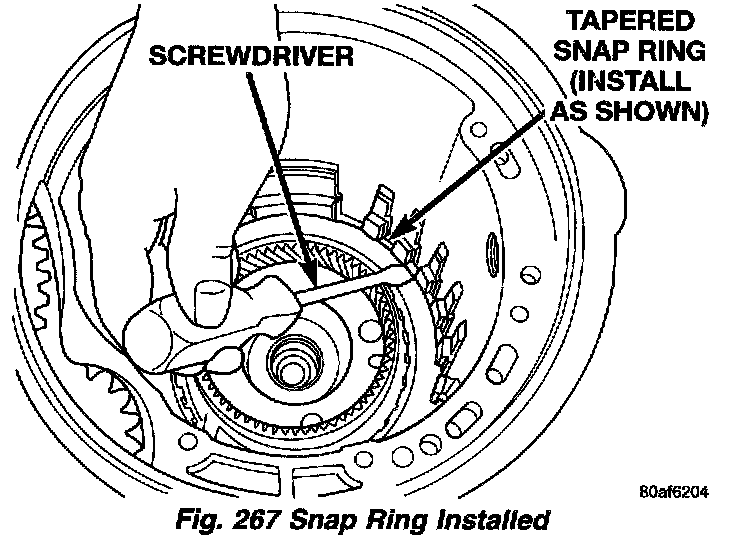

Fig. 267:
Fig. 268:
NOTE: Install the low/reverse reaction plate stepped side up.

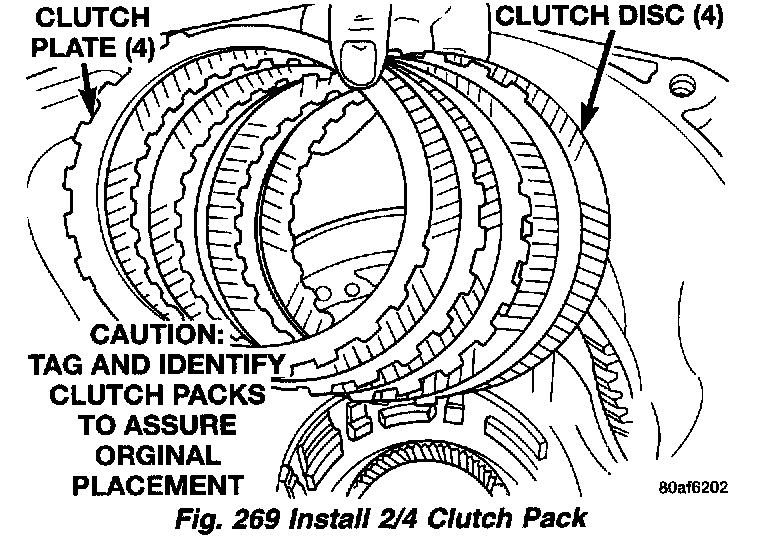

Fig. 269:
Press down clutch pack with finger and zero dial indicator. Low/Reverse clutch pack clearance is 0.89 to 1.04 (0.035 to 0.042 inch).

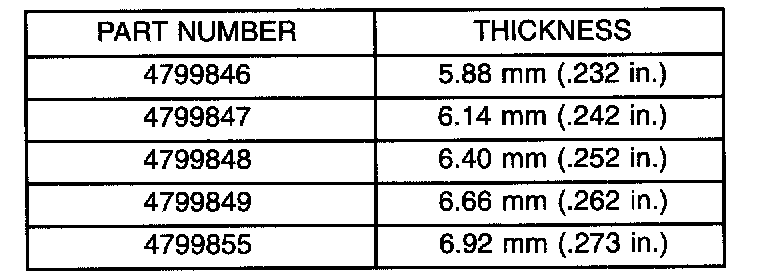

Select the proper low/reverse reaction plate to achieve specifications:

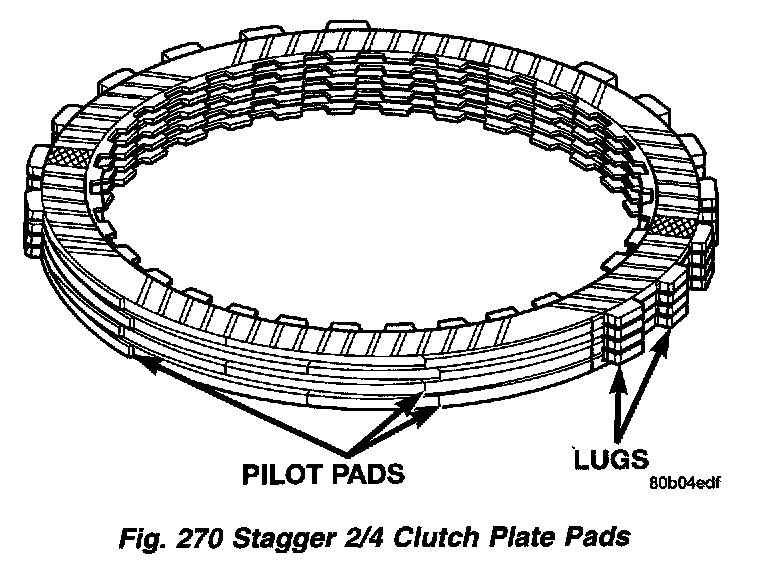

Fig. 270:

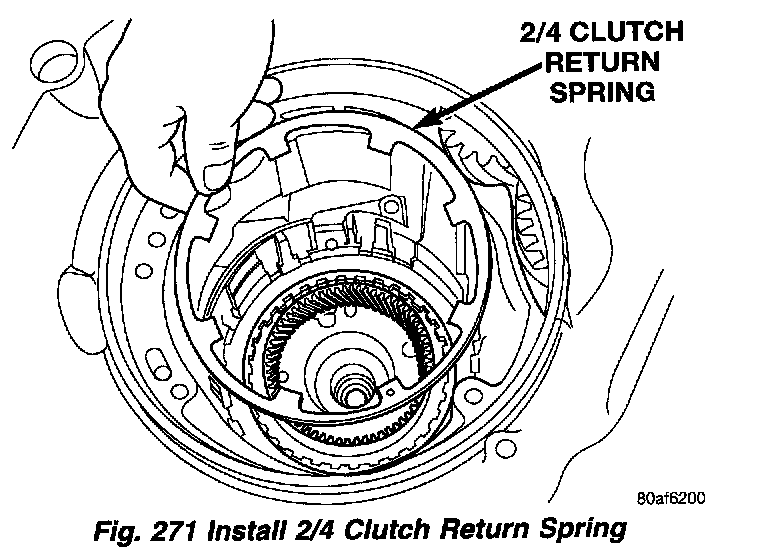

Fig. 271:

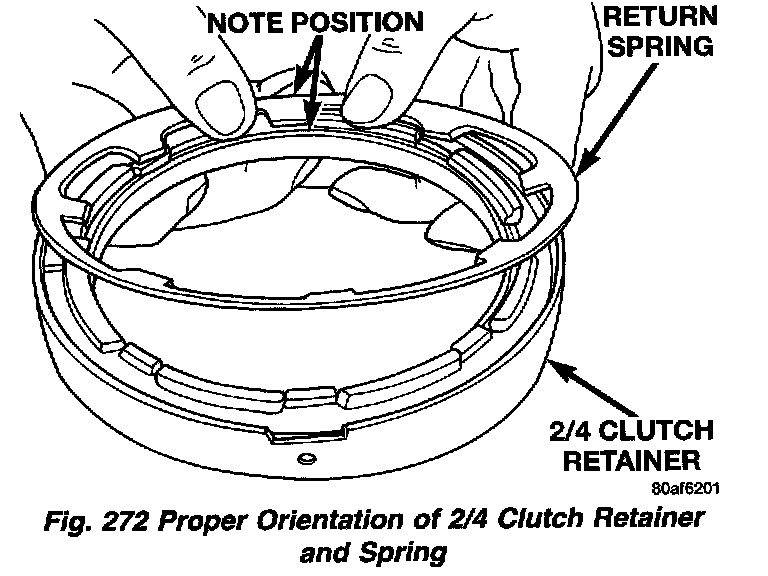

Fig. 272:

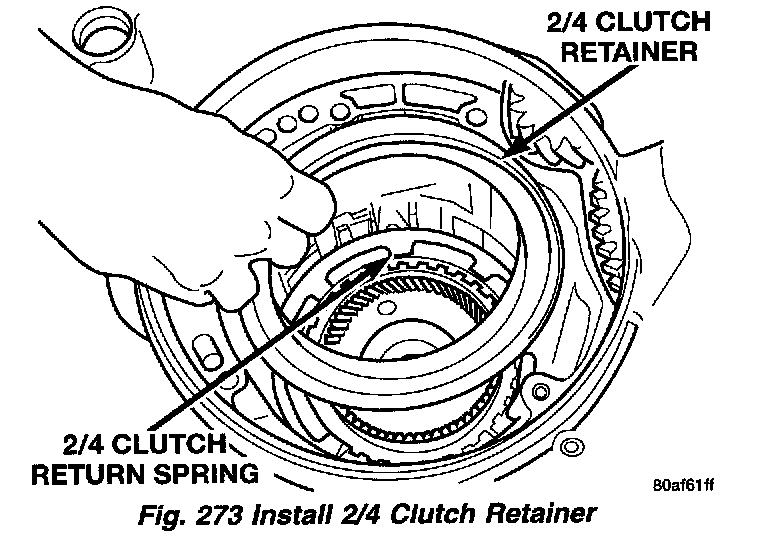

Fig. 273:
NOTE: When installing the 2-4 clutch plates and discs, the orientation should be alternated so the pilot pads of adjacent plates do not align, refer to (Fig. 270).

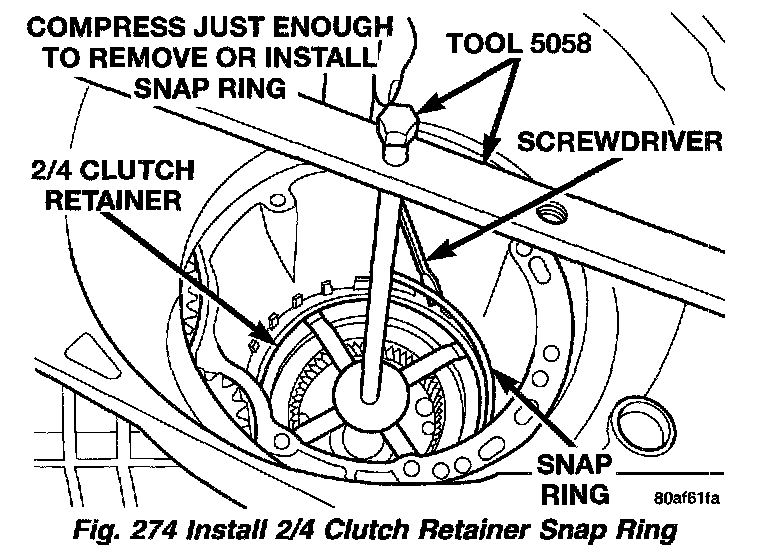

Fig. 274:

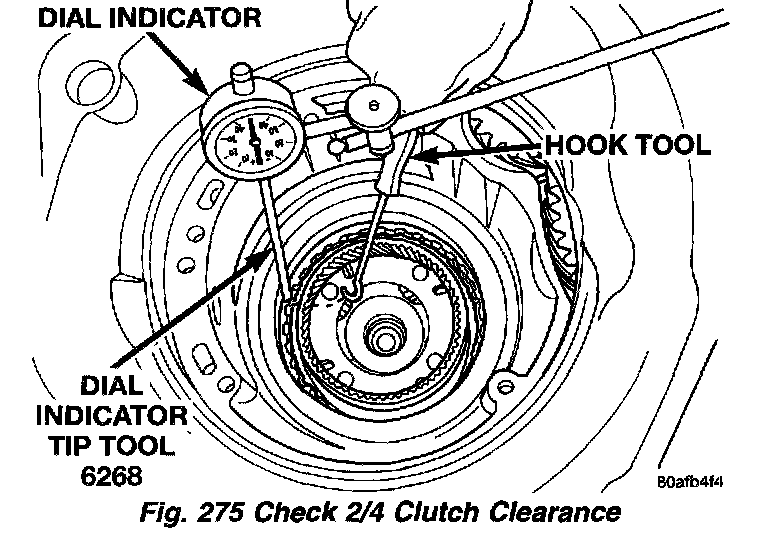

Fig. 275:
NOTE: Verify that Miller Tool 5058 is centered properly to the 2/4 clutch retainer before depressing the tool.

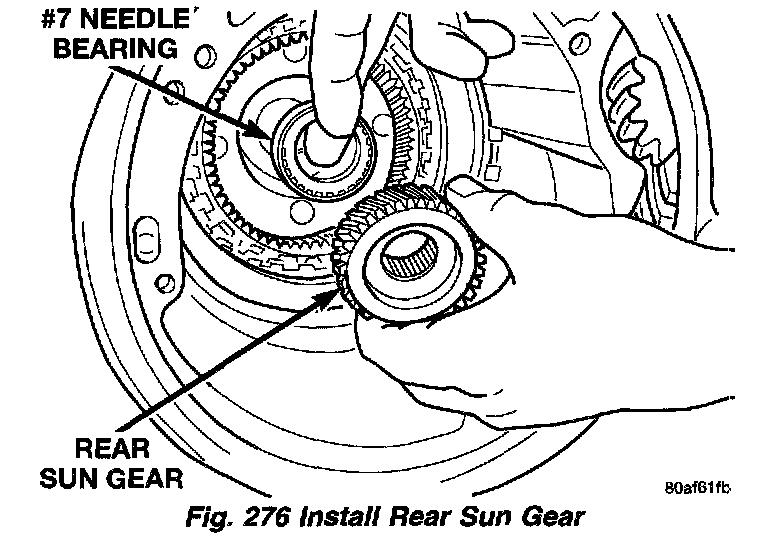

Fig. 276:

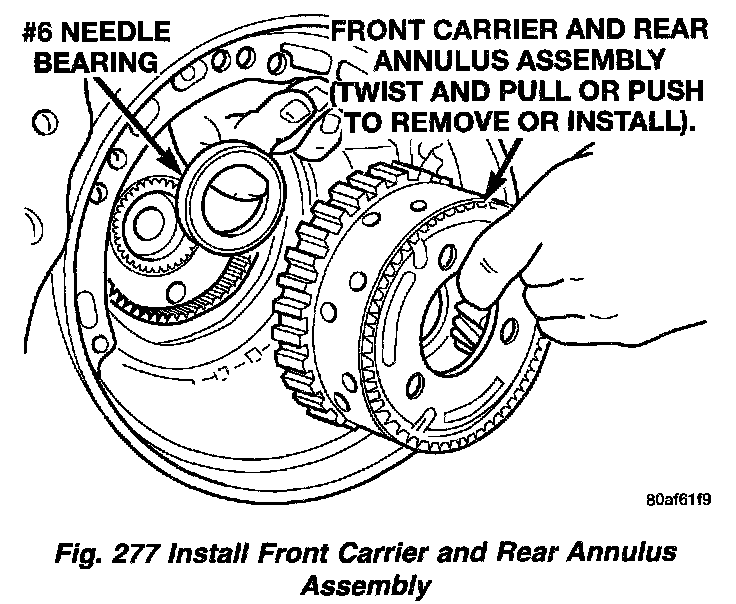

Fig. 277:

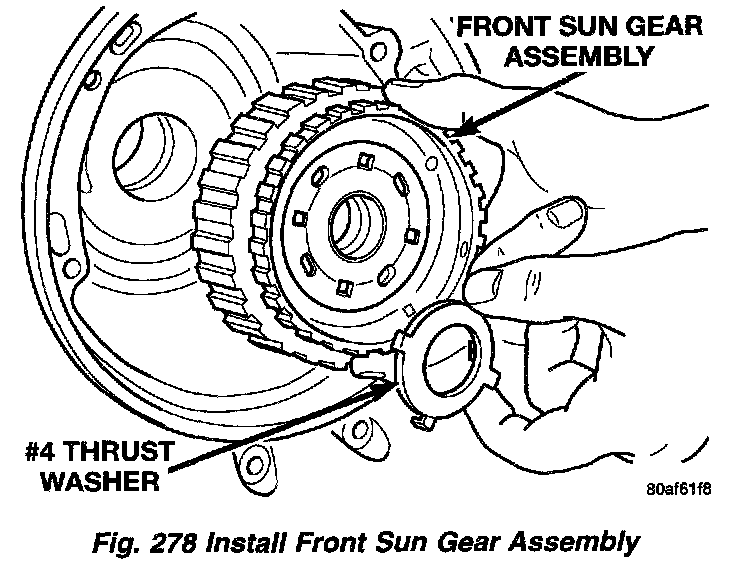

Fig. 278:
Press down clutch pack with finger and zero dial indicator. The 2/4 clutch pack clearance is 0.76 to 2.64 mm (0.030 to 0.104 inch). If not within specifications, the clutch is not assembled properly. There is no adjustment for the 2/4 clutch clearance.
