Vehicle Lead Diagnosis and Correction

Use the following chart to diagnose and correct a vehicle leading or drifting condition.

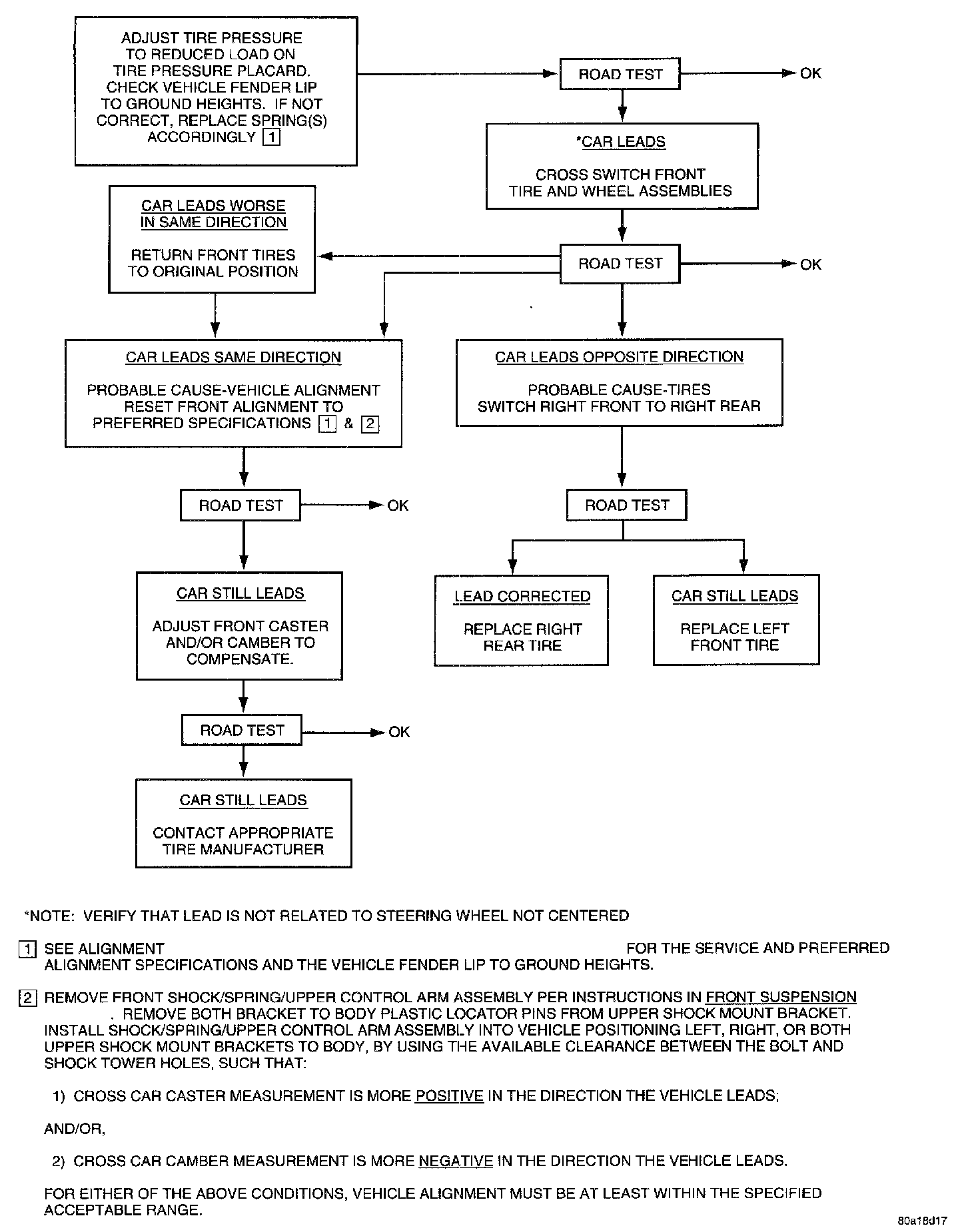

Vehicle Lead Diagnosis And Correction Chart:





VEHICLE LEAD DIAGNOSIS AND CORRECTION CHART
