Overhaul

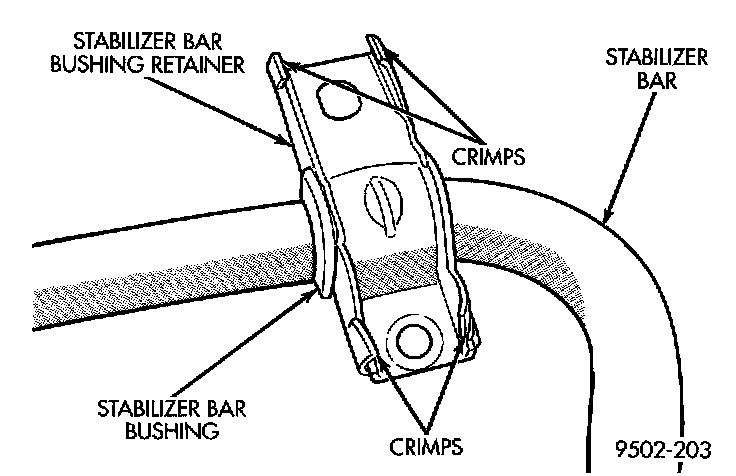

Stabilizer Bar Bushing Retainer:





1. Bend back the 4 crimp locations on the stabilizer bar bushing retainer.
2. Separate the stabilizer bar bushing retainer.
3. Stabilizer bar bushings are removed by opening slit and peeling bushing off stabilizer bar.
4. Install new stabilizer bar bushings on the stabilizer bar. Bushings must be installed on sway bar with slit in bushing facing front of vehicle when sway bar is installed.
5. Install bushing retainers back on stabilizer bar bushings.
