Symptom Related Diagnostic Procedures

Steering Diagnosis Charts Part 1 Of 3:

Steering Diagnosis Charts Part 2 Of 3:

Steering Diagnosis Charts Part 3 Of 3:

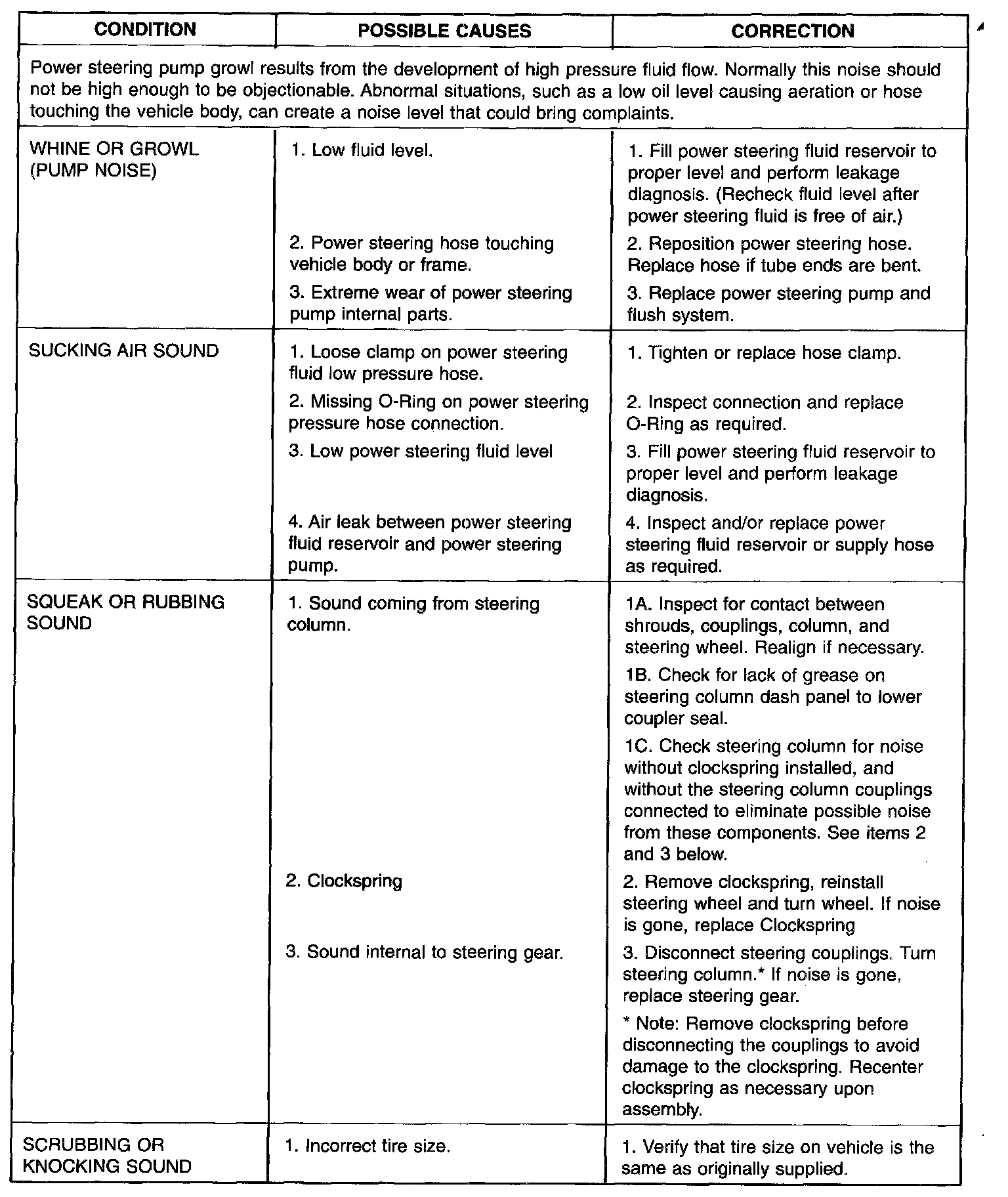

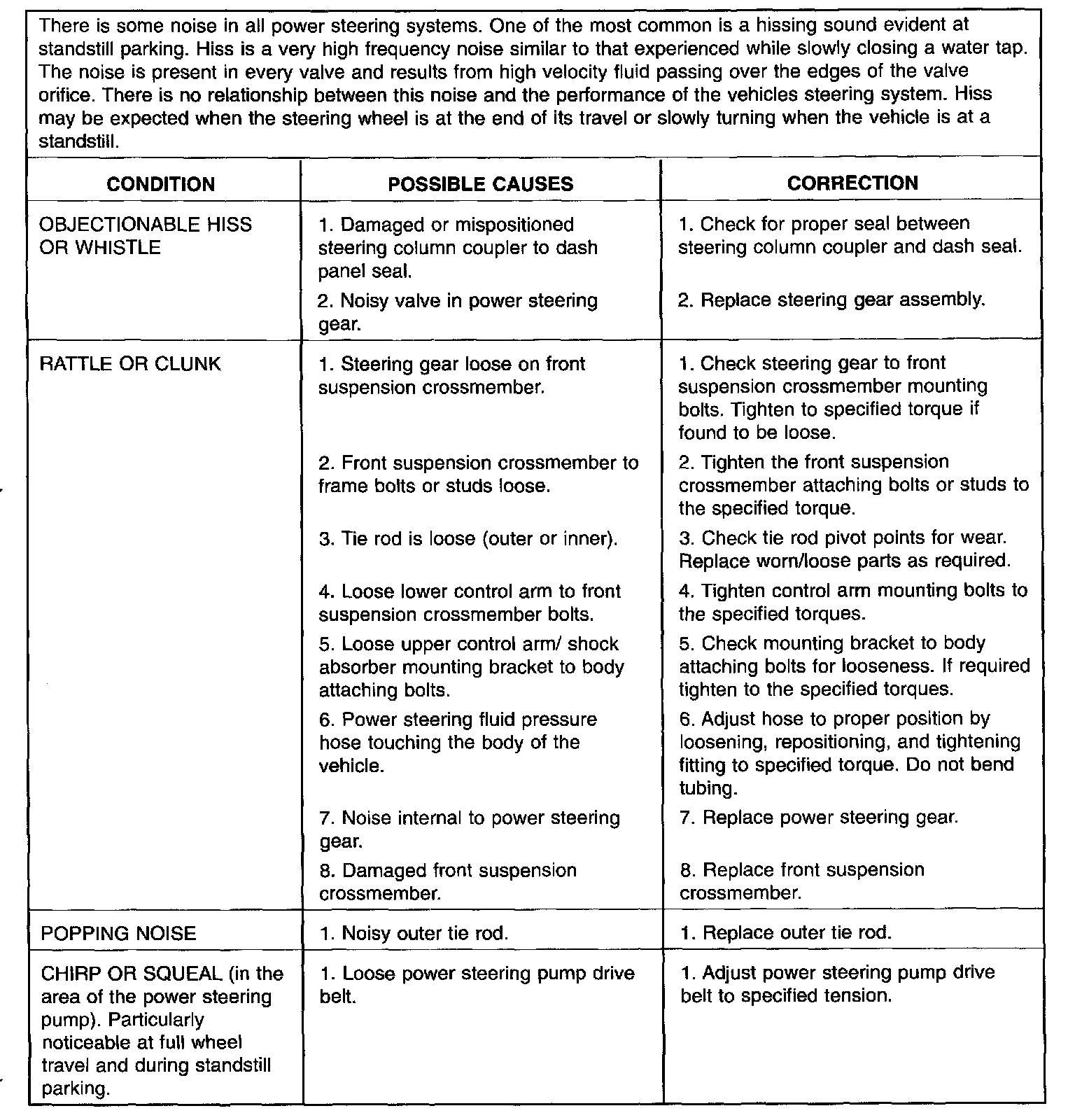

STEERING NOISE

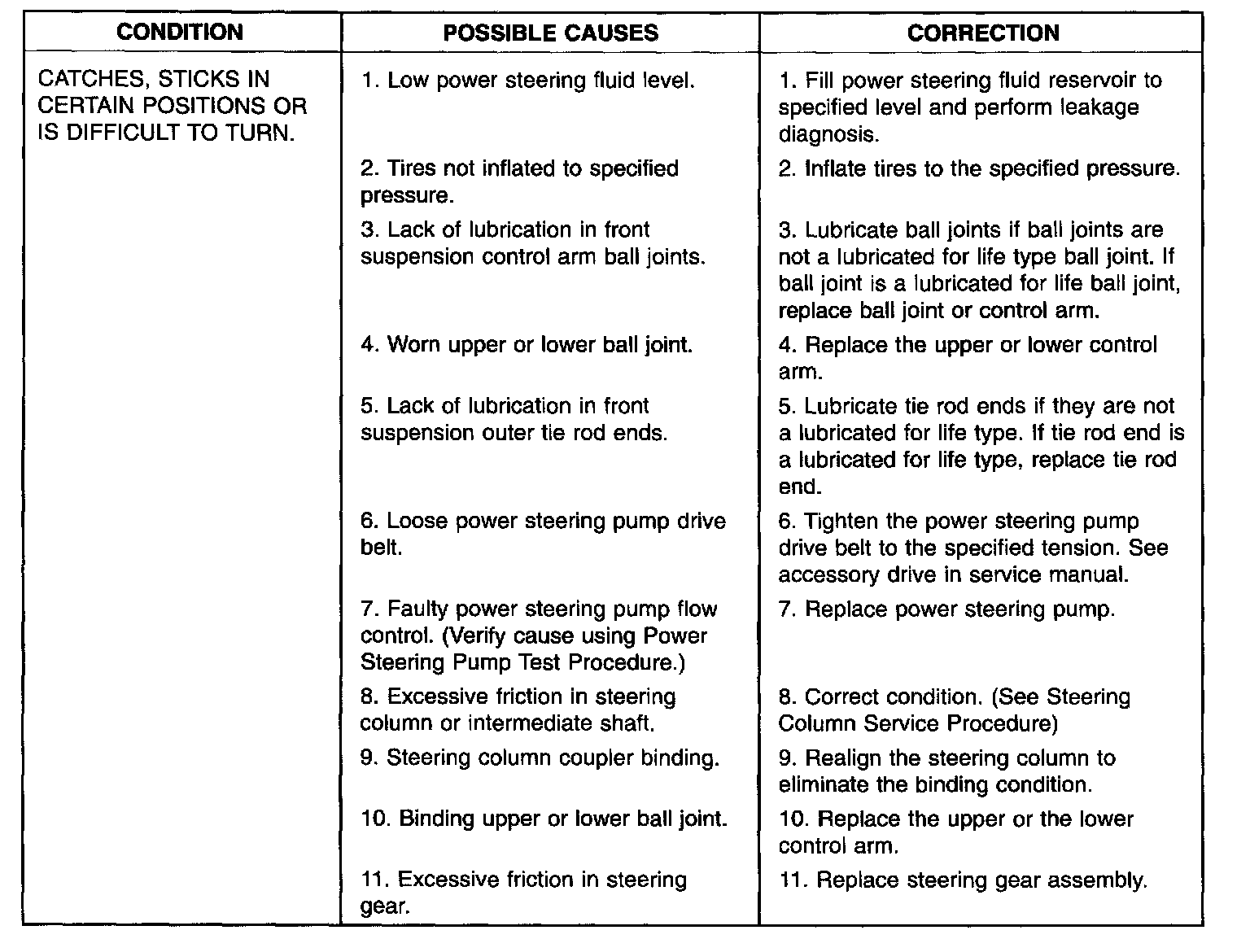

Binding Sticking Seized:

BINDING STICKING SEIZED

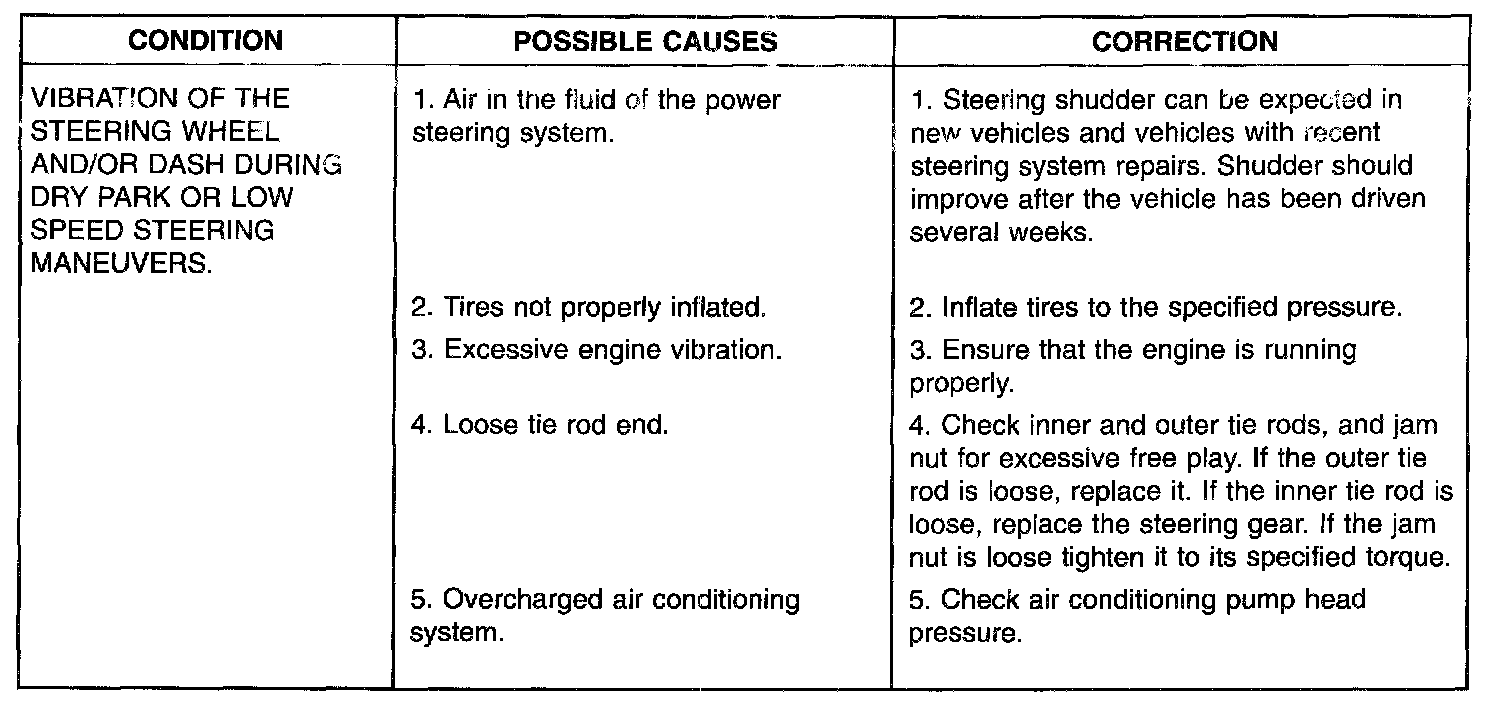

Shake Shudder Vibration:

SHAKE SHUDDER VIBRATION

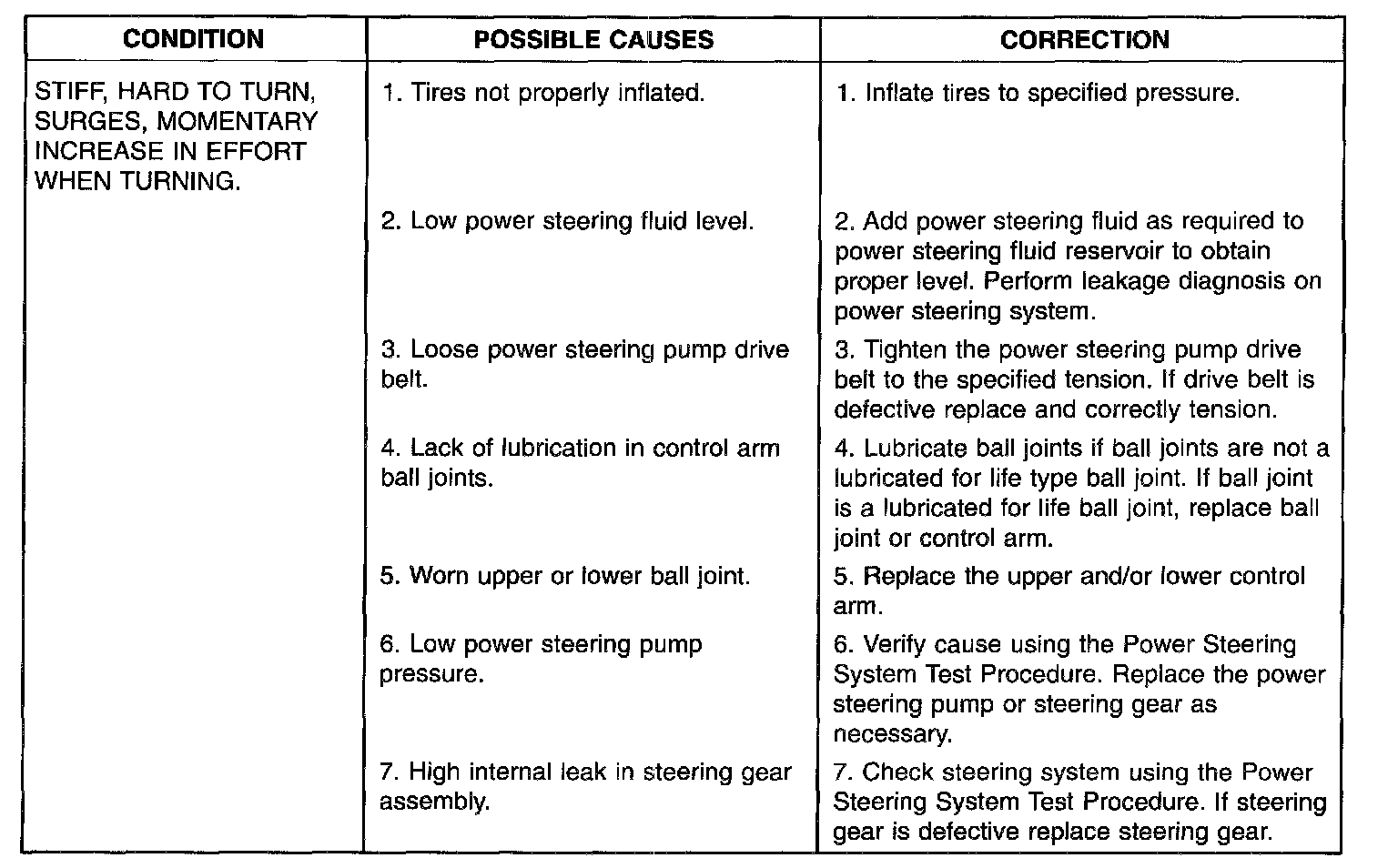

Low Assist, No Assist, Hard Steering:

LOW ASSIST, NO ASSIST, HARD STEERING

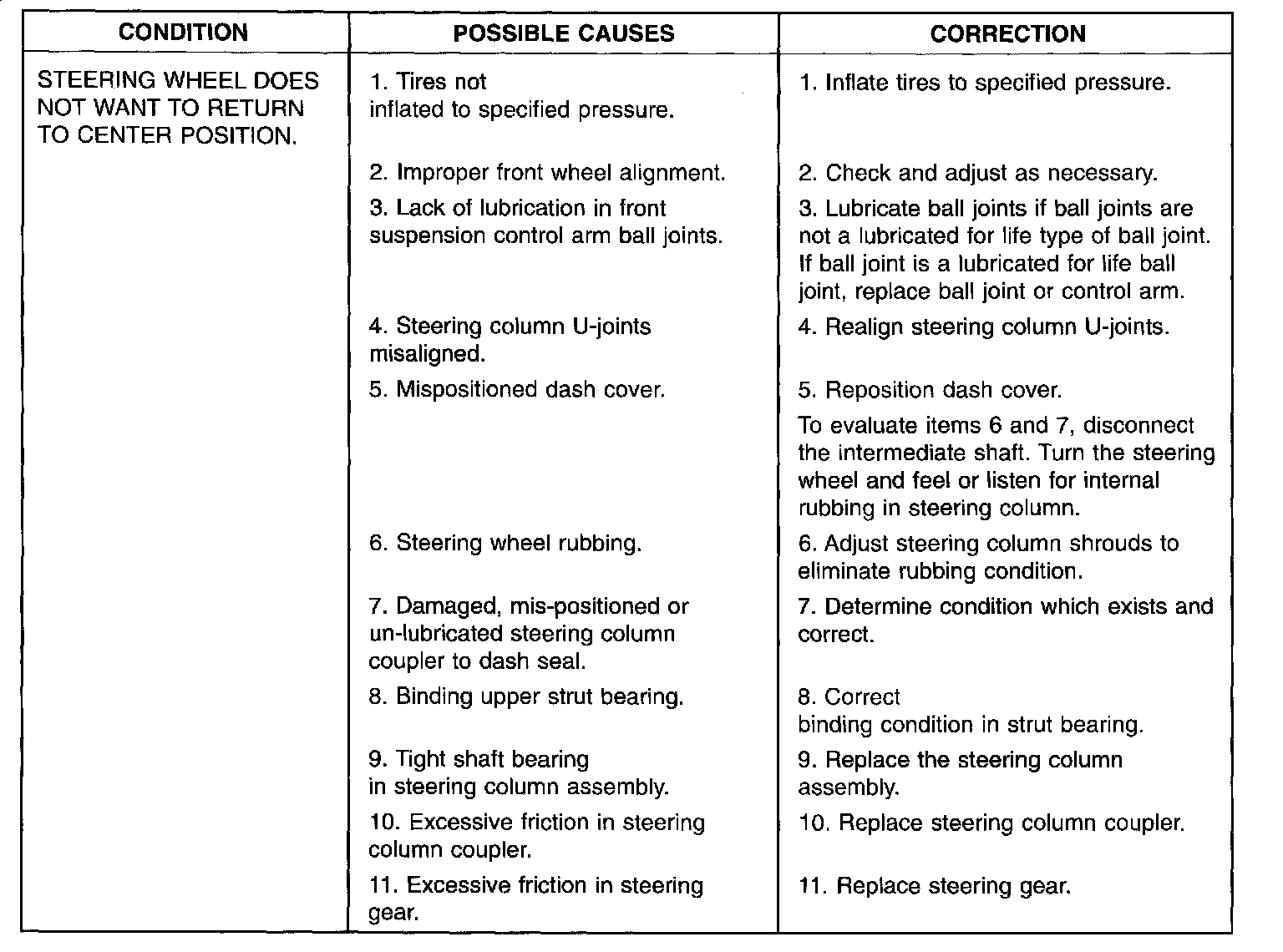

Poor Return To Center:

POOR RETURN TO CENTER

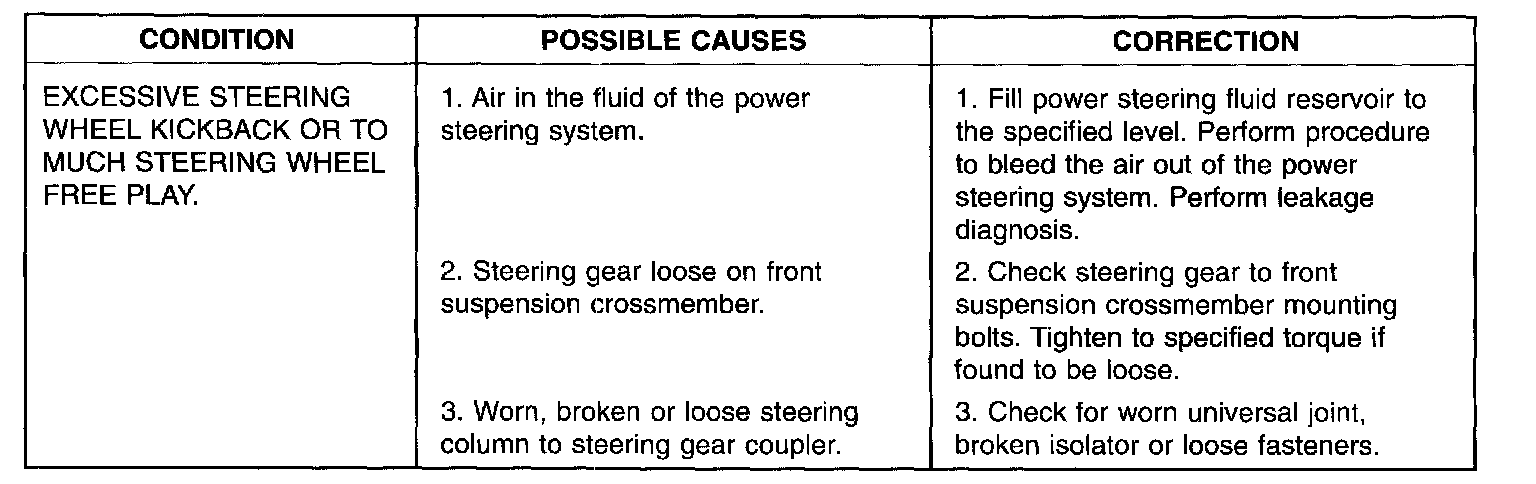

Loose Steering Part 1 Of 2:

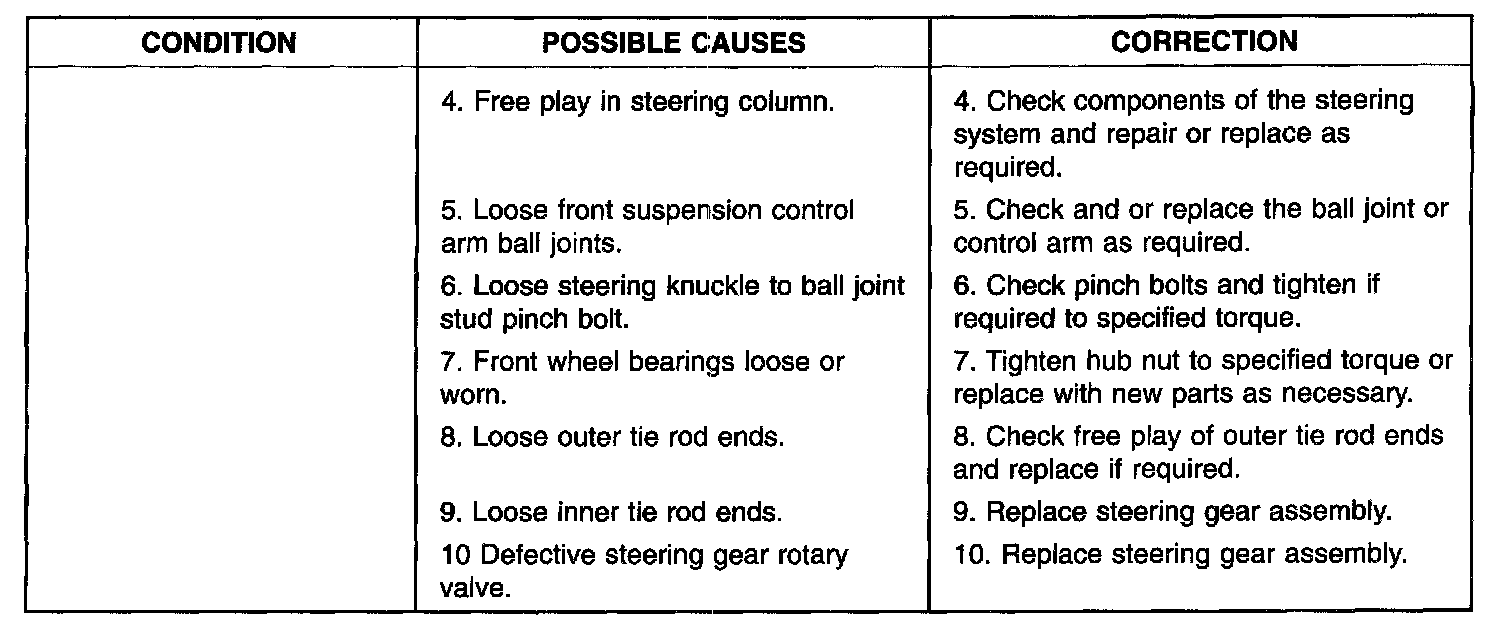

Loose Steering Part 2 Of 2:

LOOSE STEERING

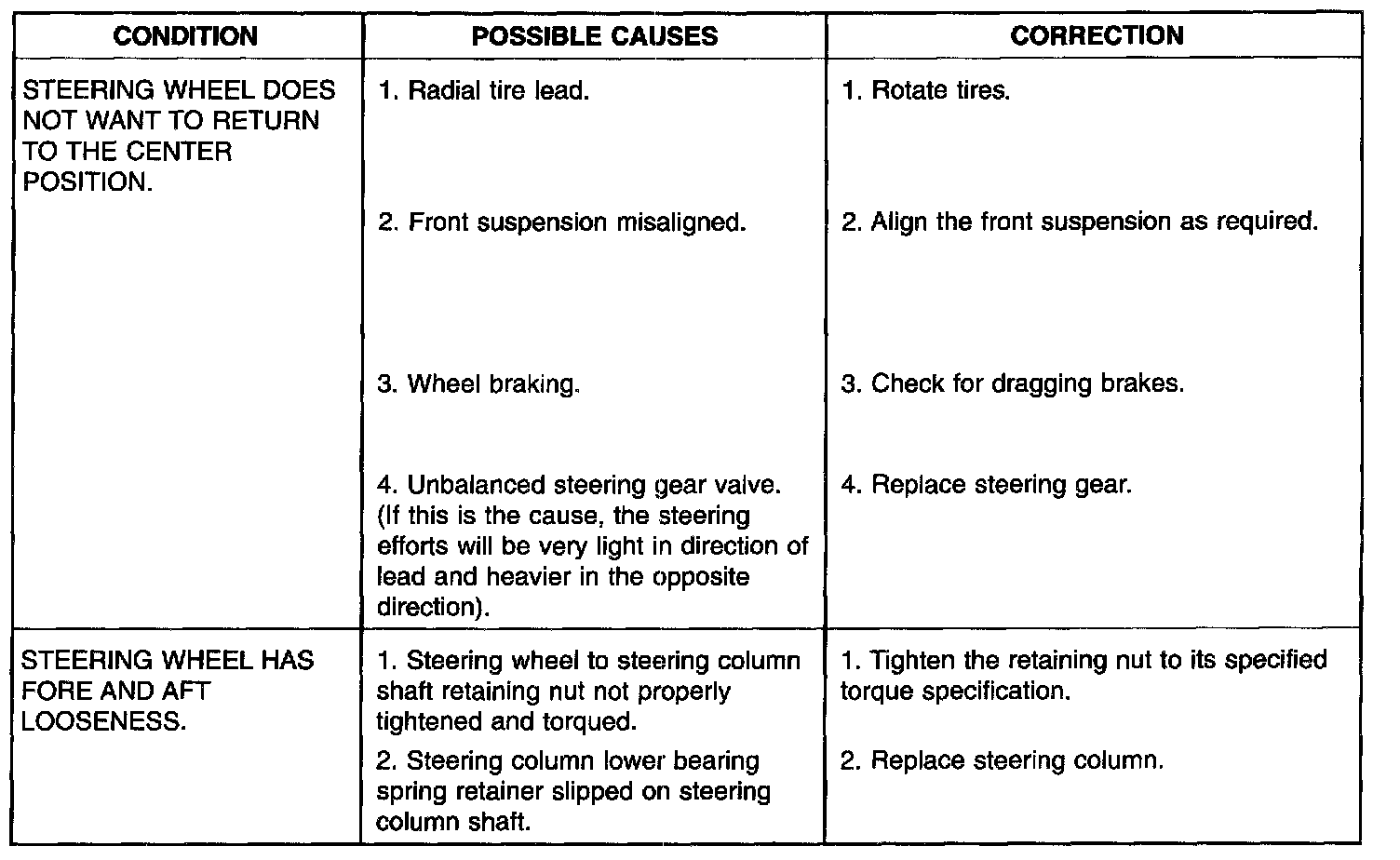

Vehicle Leads To The Side:

VEHICLE LEADS TO THE SIDE

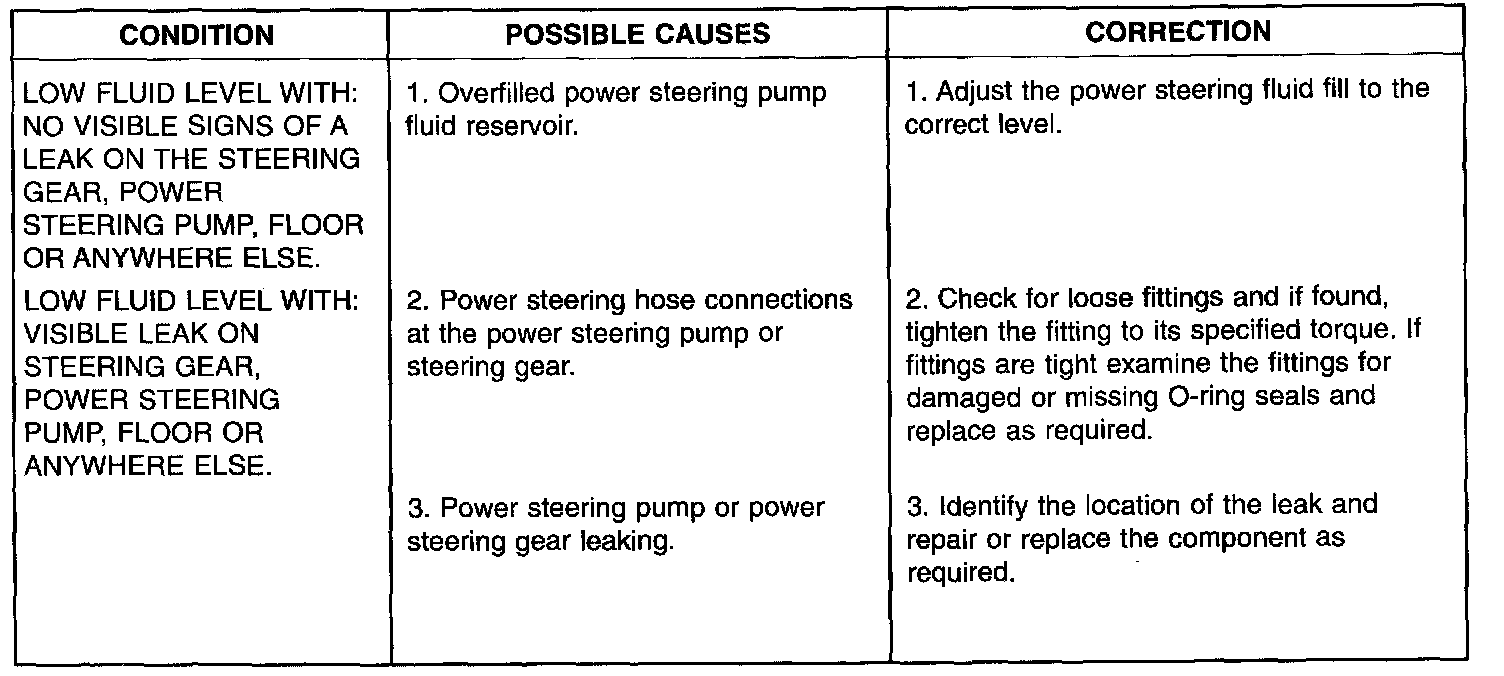

Power Steering Fluid Leak:

POWER STEERING FLUID LEAK

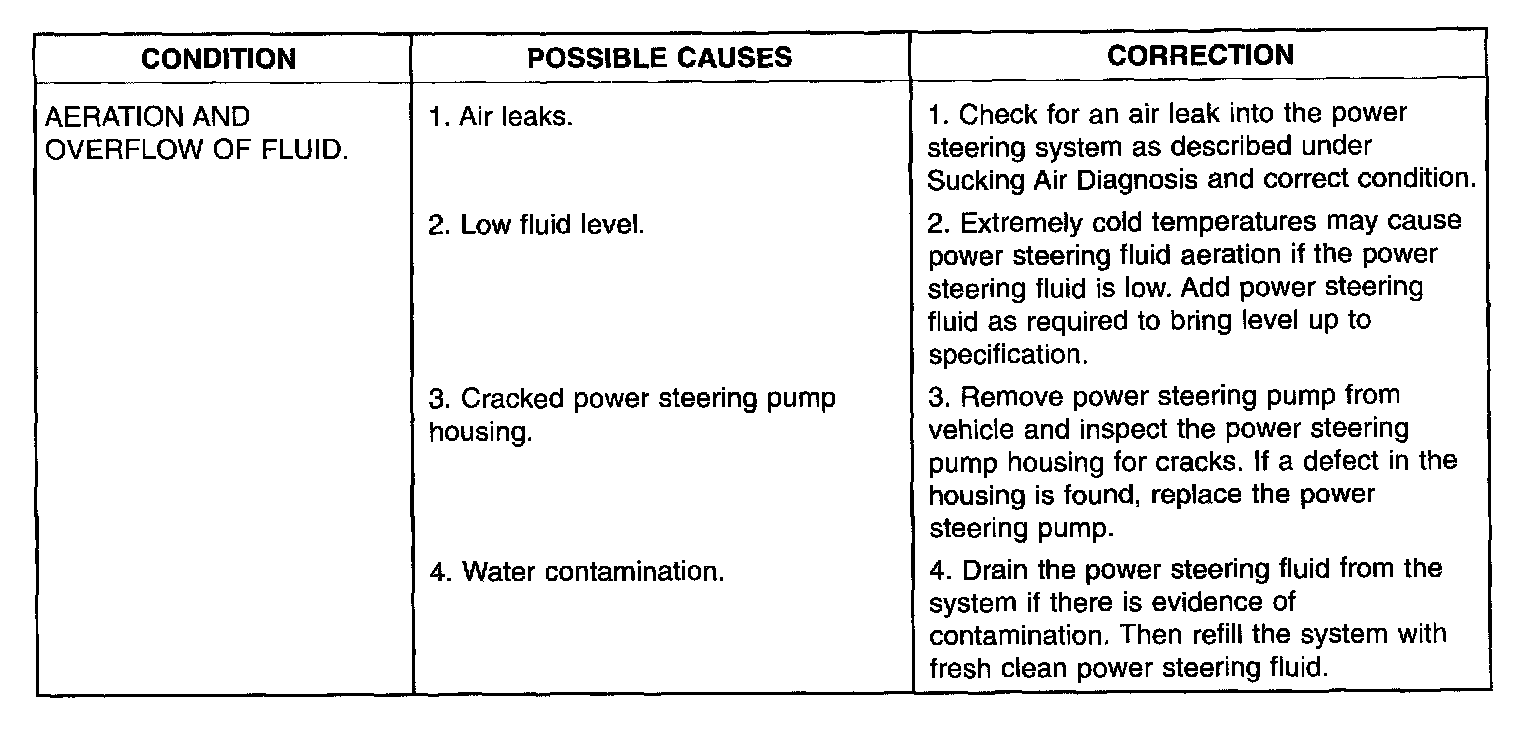

Foamy Or Milky Power Steering Fluid:

FOAMY OR MILKY POWER STEERING FLUID
