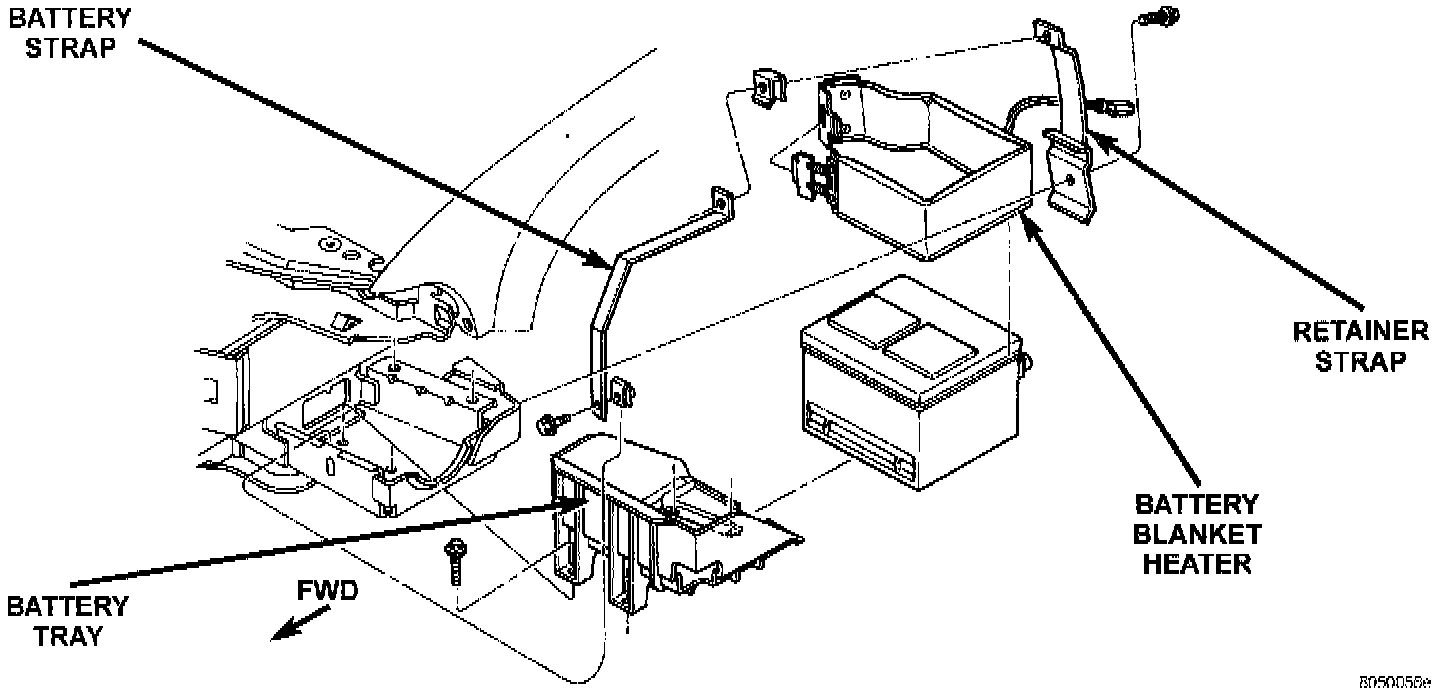

Battery Tray Replacement

REMOVAL
1. Remove battery, refer to Battery Removal procedures above.

Battery Tray Removal:

2. Remove the battery tray attaching bolts.
3. Remove battery tray.
4. Remove battery strap.

INSTALLATION
For installation, reverse the above procedures.
