Evaporator Temperature Sensor / Switch: Locations

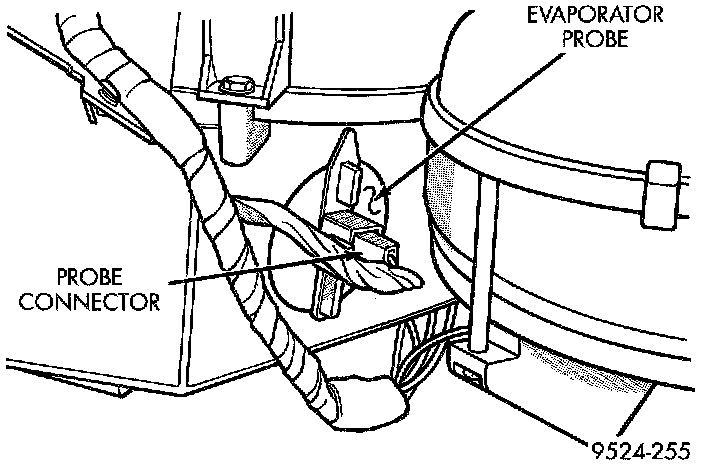

Evaporator Probe Wiring:




The evaporator probe is located on the lower right side of the evaporator housing.
