Airbag System

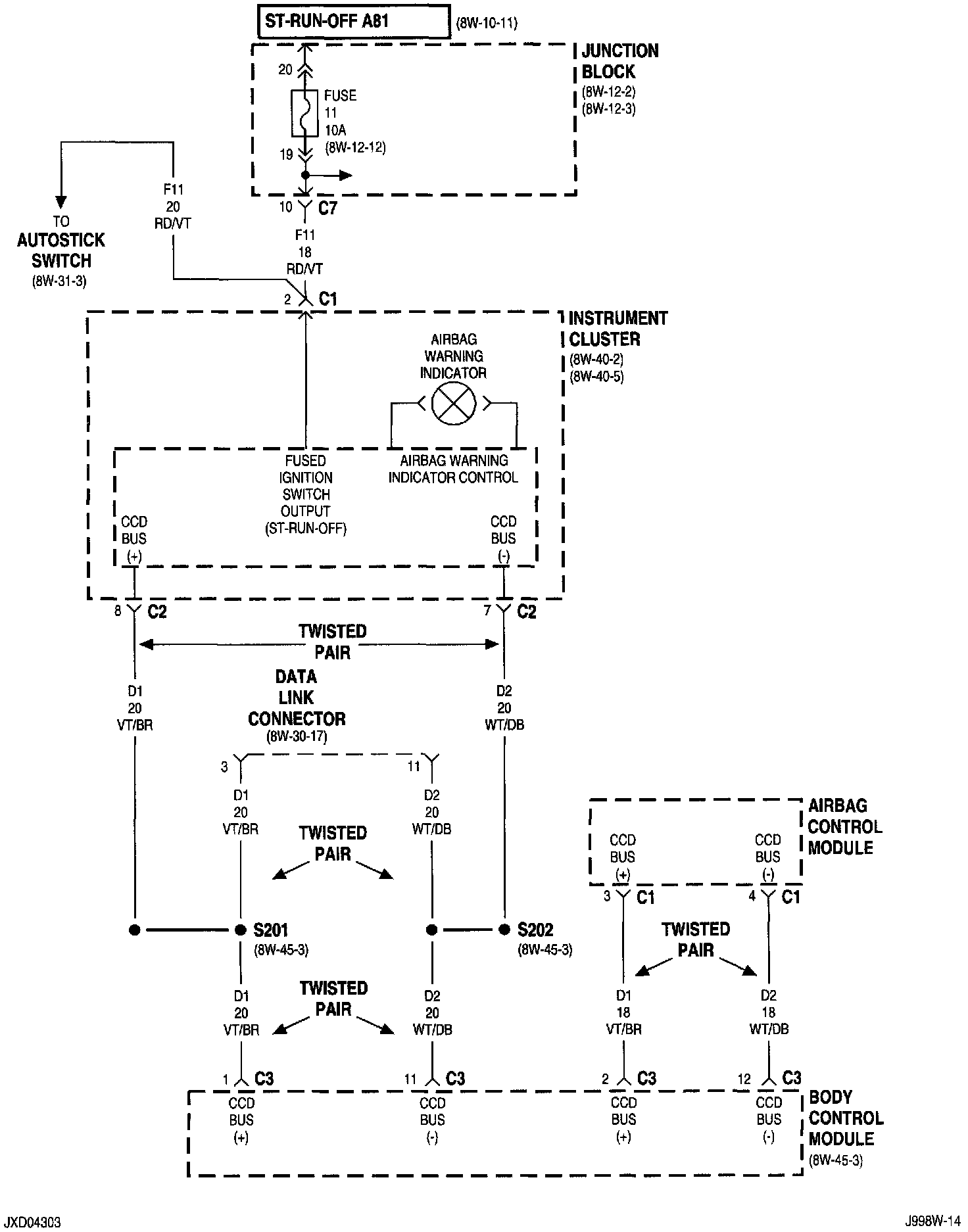

Airbag System 8w-43-2:

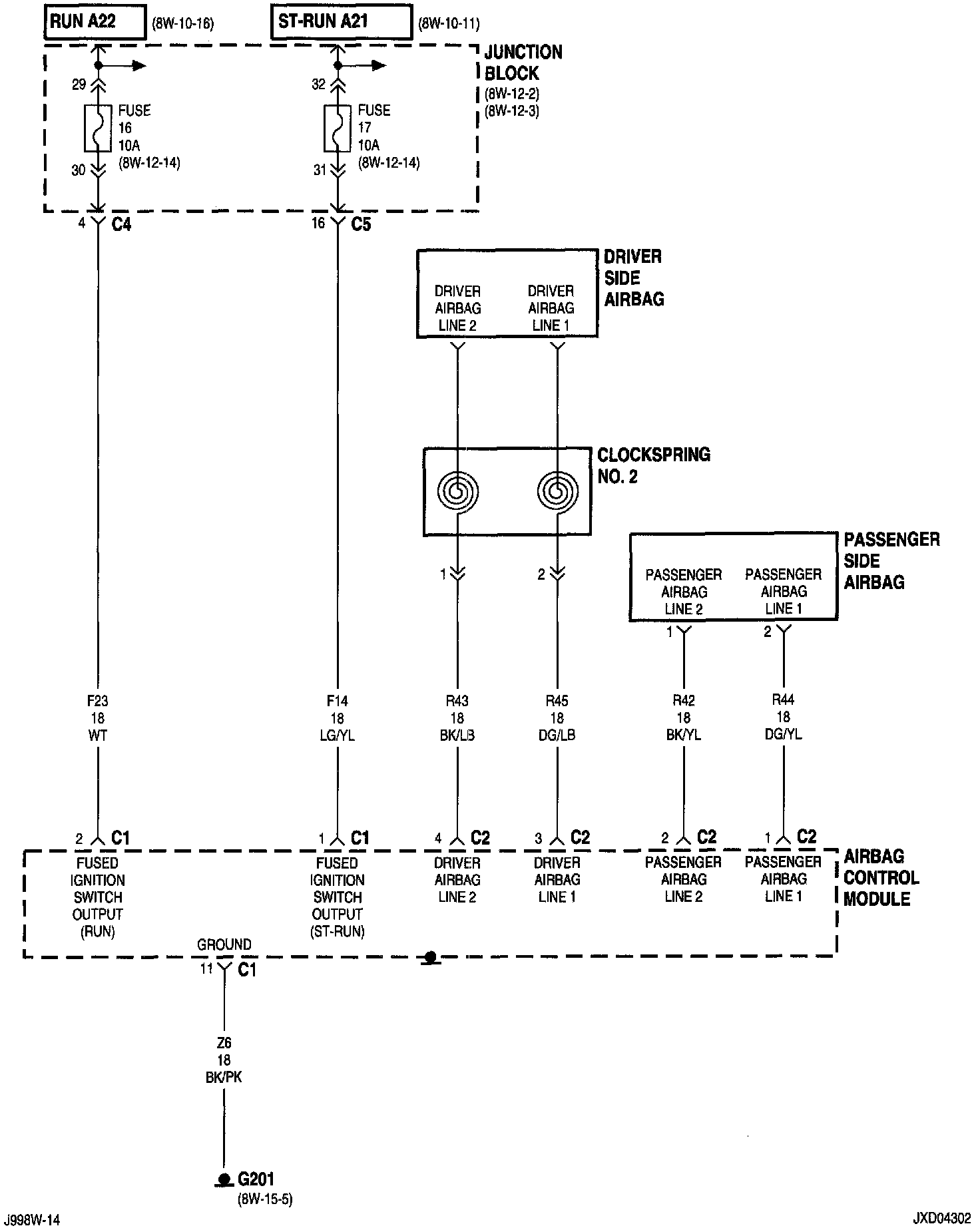

Airbag System 8w-43-3:






NOTE: To view sheets referred to in these diagrams, see Complete Body and Chassis Diagrams.
