Clockspring Assembly / Spiral Cable: Diagrams

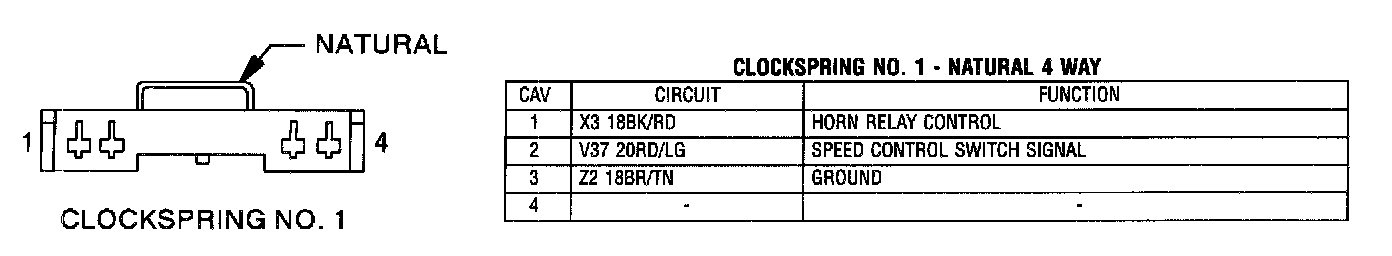

Clockspring No. 1 - Natural 4 Way:

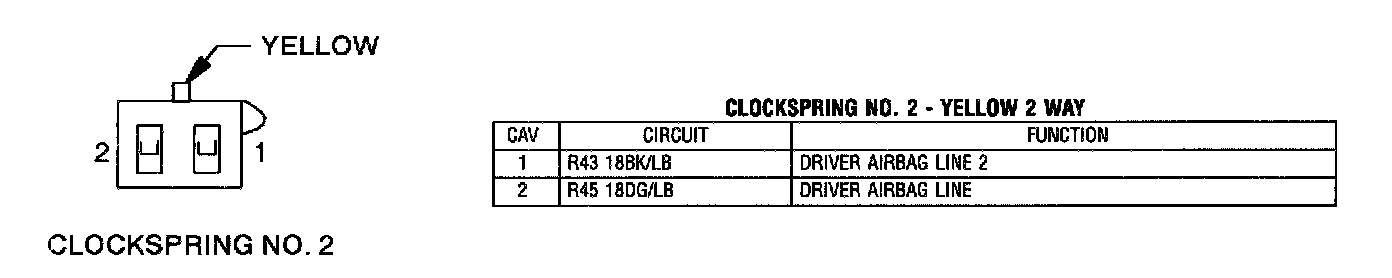

Clockspring No. 2 - Yellow 2 Way:
