ABS Main Relay: Description and Operation
ABS FUSESFuse Location:

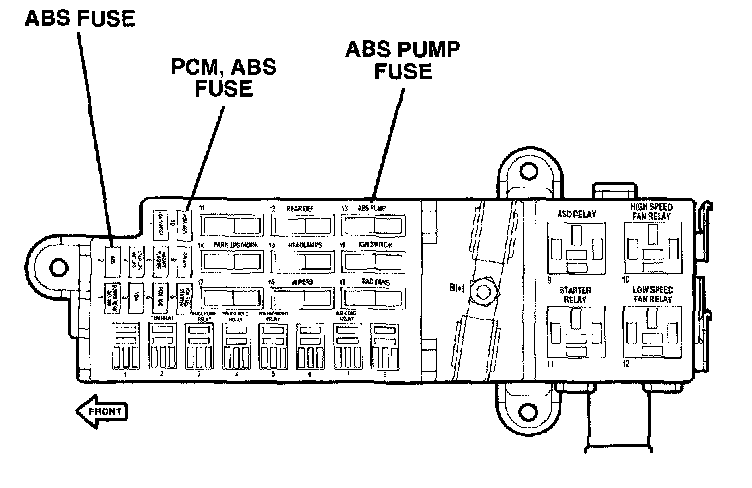

The ABS fuses and the ABS pump/motor fuse are located in the Power Distribution Center (PDC). Refer to the sticker on the inside of the PDC cover for the location of these fuses, or use the image. The PDC is located on the driver's side of the engine compartment between the radiator and the brake master cylinder.
ABS RELAYS (SOLID STATE)
Two internal relays are used to control the antilock brake system. The two relays are the pump/motor relay and the system relay. The pump/motor relay and the system relay are located in the CAB. If either the pump/motor relay or the system relay is diagnosed as not functioning properly, the CAB must be replaced.
