No Manual Upshift/ Downshift In Autostick
No Manual Upshift/ Downshift In Autostick

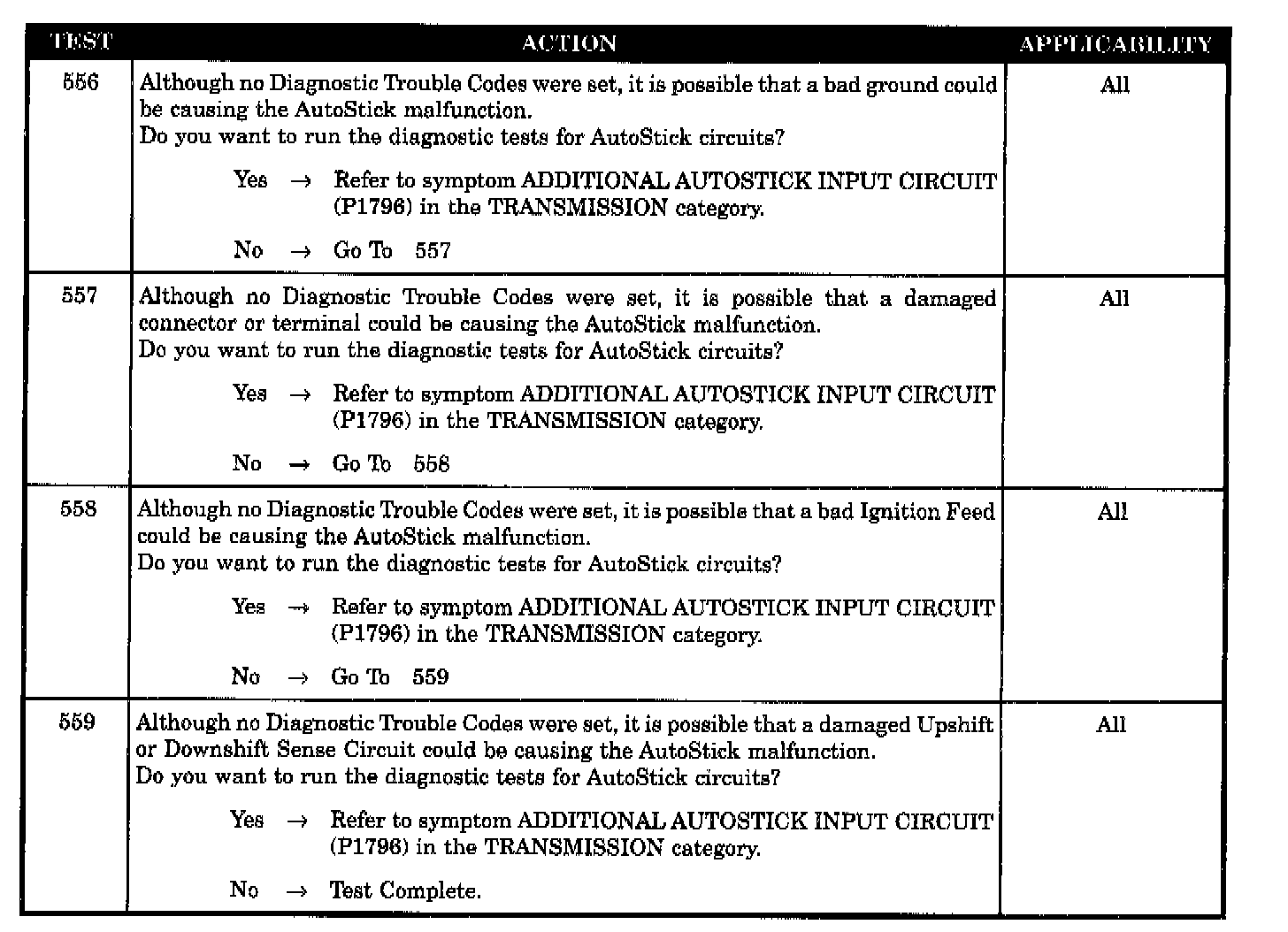

Test 556 - 559:
Symptom:
* NO MANUAL UPSHIFT/ DOWNSHIFT IN AUTOSTICK
POSSIBLE CAUSES
FAULTY
TCM
INCORRECT GEARSHIFT CONTROL LINKAGE ADJUSTMENT
