Ignition Coil: Service and Repair

Electronic Ignition Coil Pack:

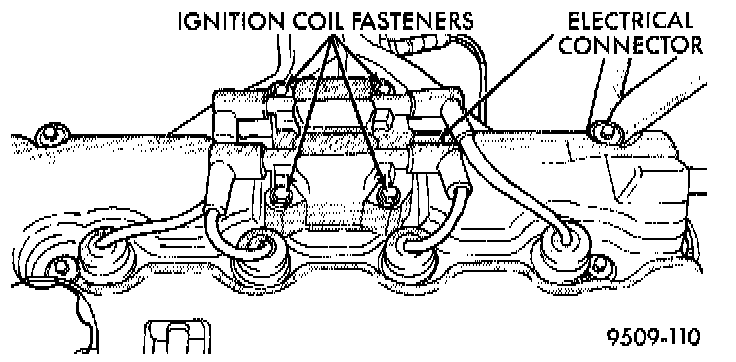

The electronic ignition coil pack attaches directly to the valve cover.

REMOVAL
1. Disconnect electrical connector from coil pack.
2. Remove coil pack mounting nuts.
3. Remove coil pack.

INSTALLATION
1. Install coil pack on valve cover.
2. Transfer spark plug cables to new coil pack. The coil pack towers are numbered with the cylinder identification. Be sure the ignition cables snap onto the towers.
