Resonator: Service and Repair

REMOVAL
1. Remove bolt holding air inlet resonator to intake manifold.

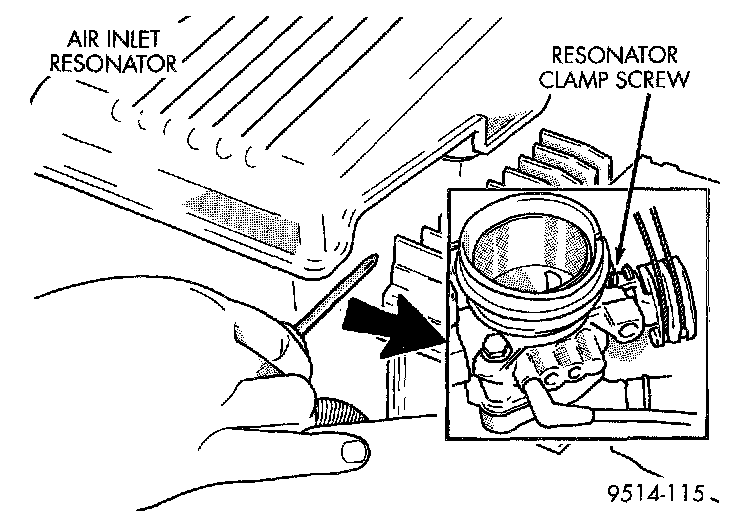

Air Inlet Resonator Attachment to Throttle Body:

2. Loosen screw holding resonator to throttle body.
3. Loosen clamp holding resonator to air inlet tube. Remove resonator.

INSTALLATION
1. Install air inlet resonator to throttle body.
2. Install air inlet tube to resonator.
3. Tighten clamps to 3 ± 0.5 N.m (25 ± 5 in. lbs.) torque.
4. Install bolt and tighten.
