Home >> Chrysler >> 1999 >> Sebring Convertible L4-2.4L VIN X >> Repair and Diagnosis >> Powertrain Management >> Fuel Delivery and Air Induction >> Fuel Injector >> Testing and Inspection

Fuel Injector: Testing and Inspection

Fuel Injector Diagnosis:

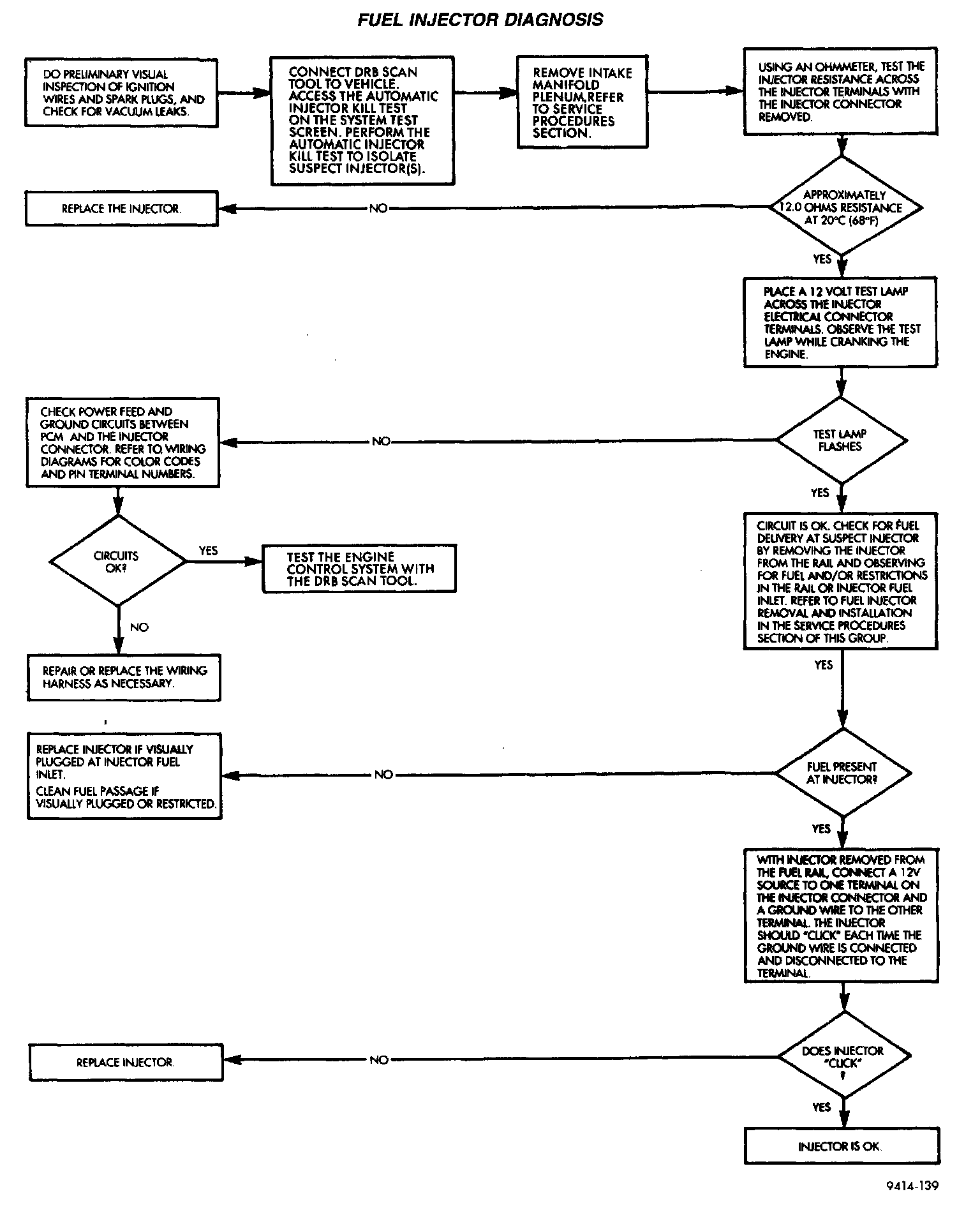

For fuel injector diagnosis, refer to the Fuel Injector Diagnosis charts
