Fuel Injector: Service and Repair

REMOVAL
1. Remove fuel rail. Refer to appropriate Fuel Rail Removal.

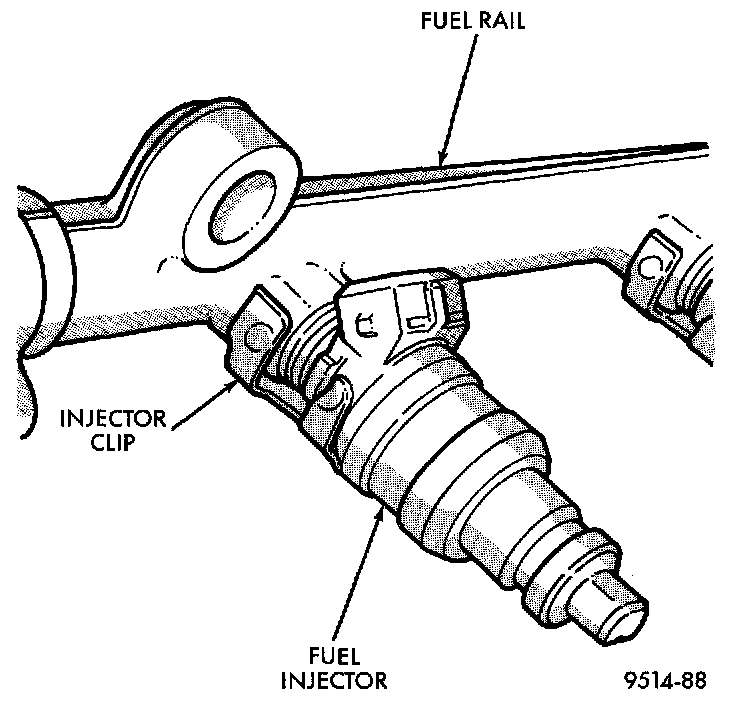

Fuel Injector Clip-2.0/2.4L Engines:

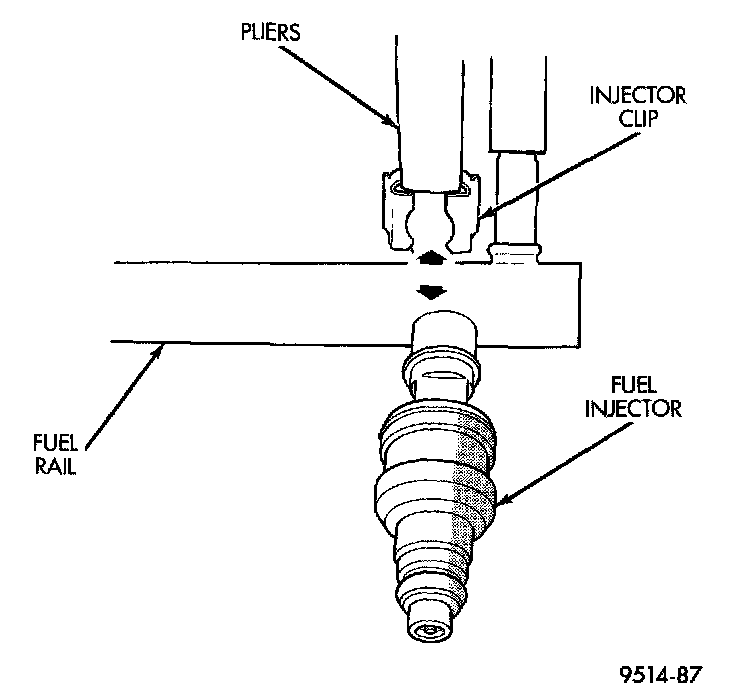

Fuel Injector Clip-2.5L Engine:

2. Remove fuel injector clip.
3. Pull injector out of fuel rail. Replace fuel injector O-rings.

INSTALLATION
1. Reverse procedure for installation.
