No Crank Condition

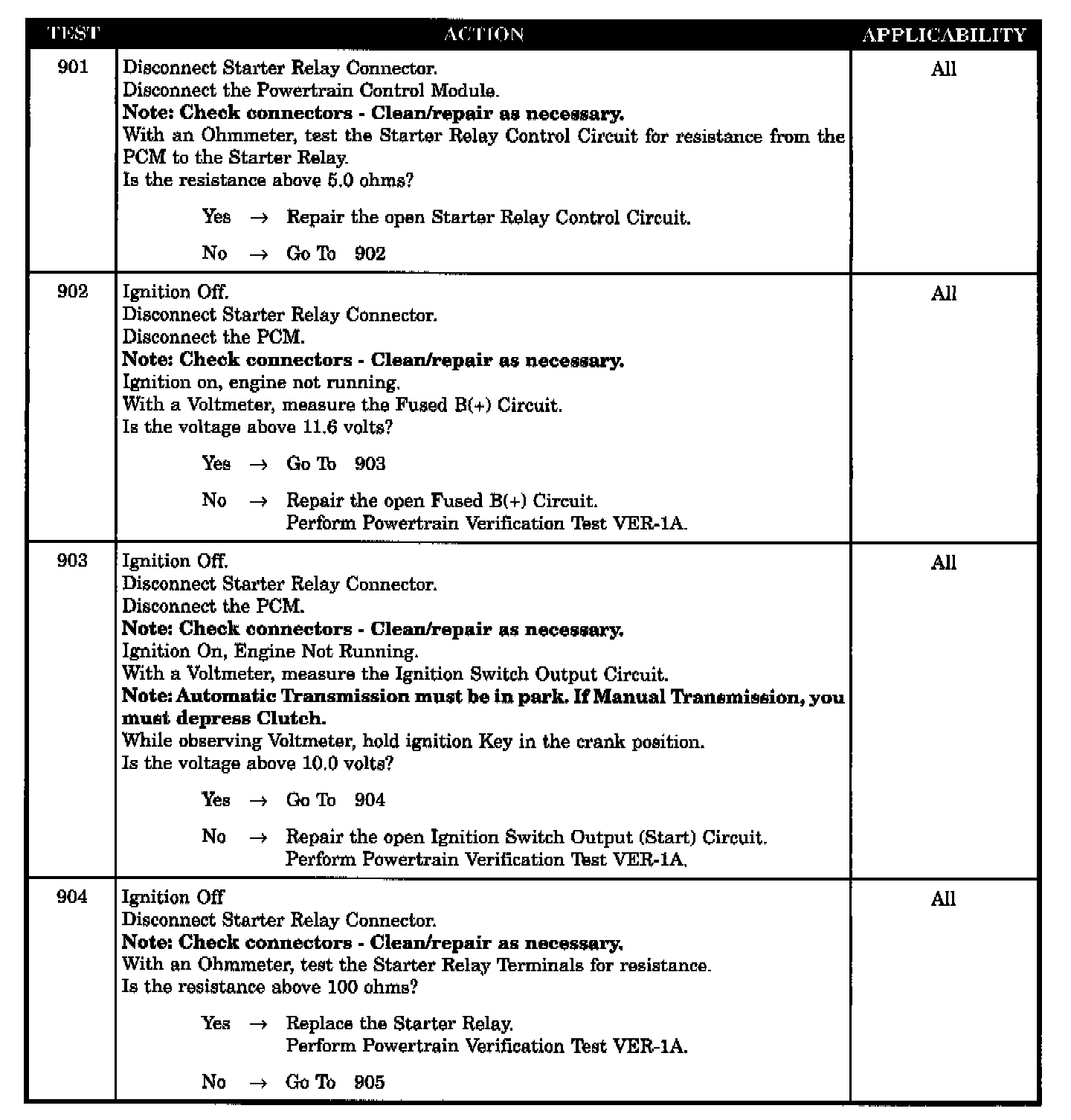

Tests 901 - 904:

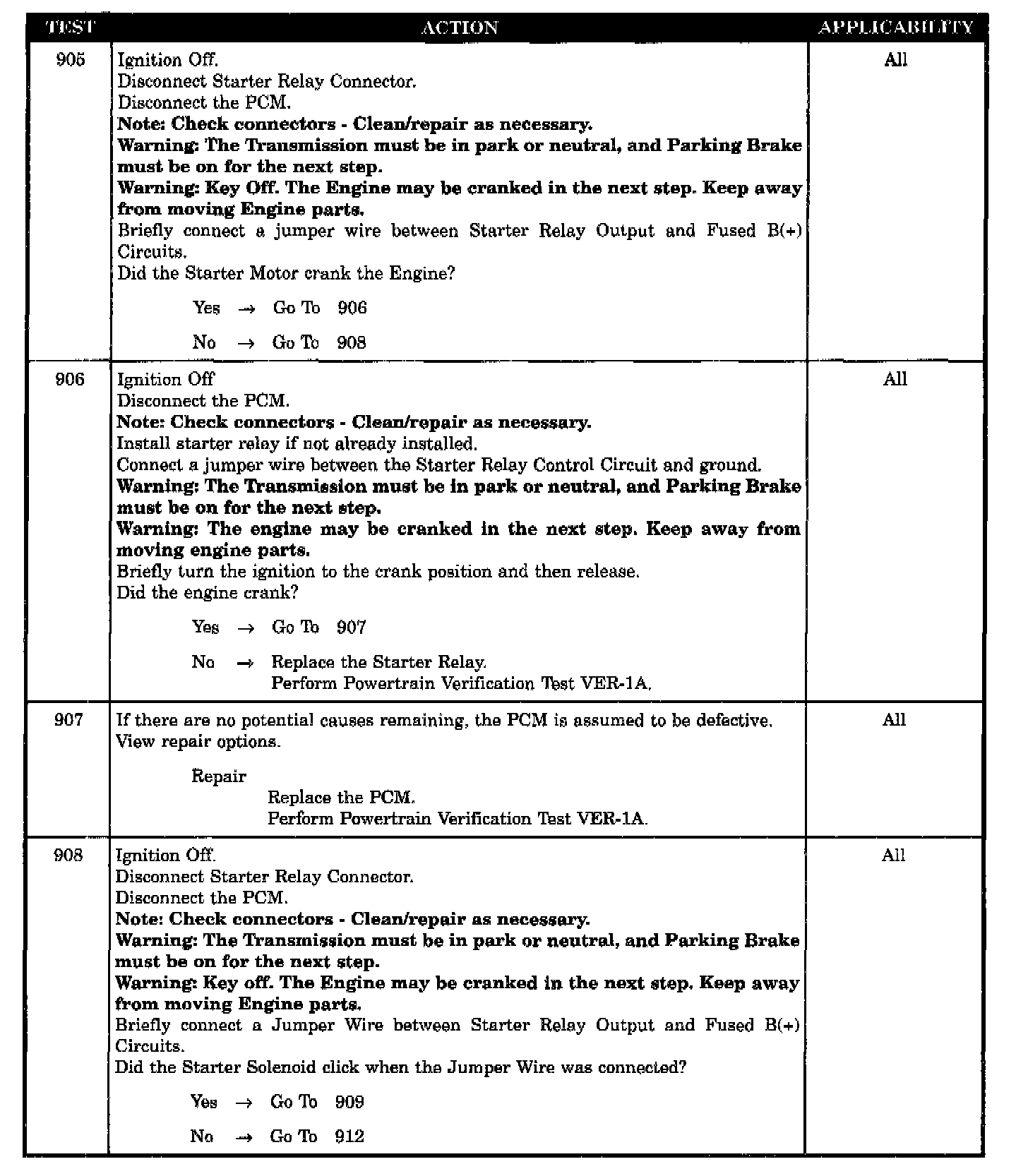

Tests 905 - 908:

Tests 909 - 915:

SYMPTOM
* NO CRANK CONDITION

POSSIBLE CAUSES
- Battery circuit high resistance
- Starter relay output circuit open
- Engine mechanical problem
- PCM defective
- Starter motor defective
- Starter motor defective
- Starter relay defective
- Fused B(+) circuit open
- Ignition switch output circuit open
- Starter relay control circuit open
- Starter relay defective
