No Start Test
>>
No Start (NS) Tests
>>
High Fuel Pressure
High Fuel Pressure

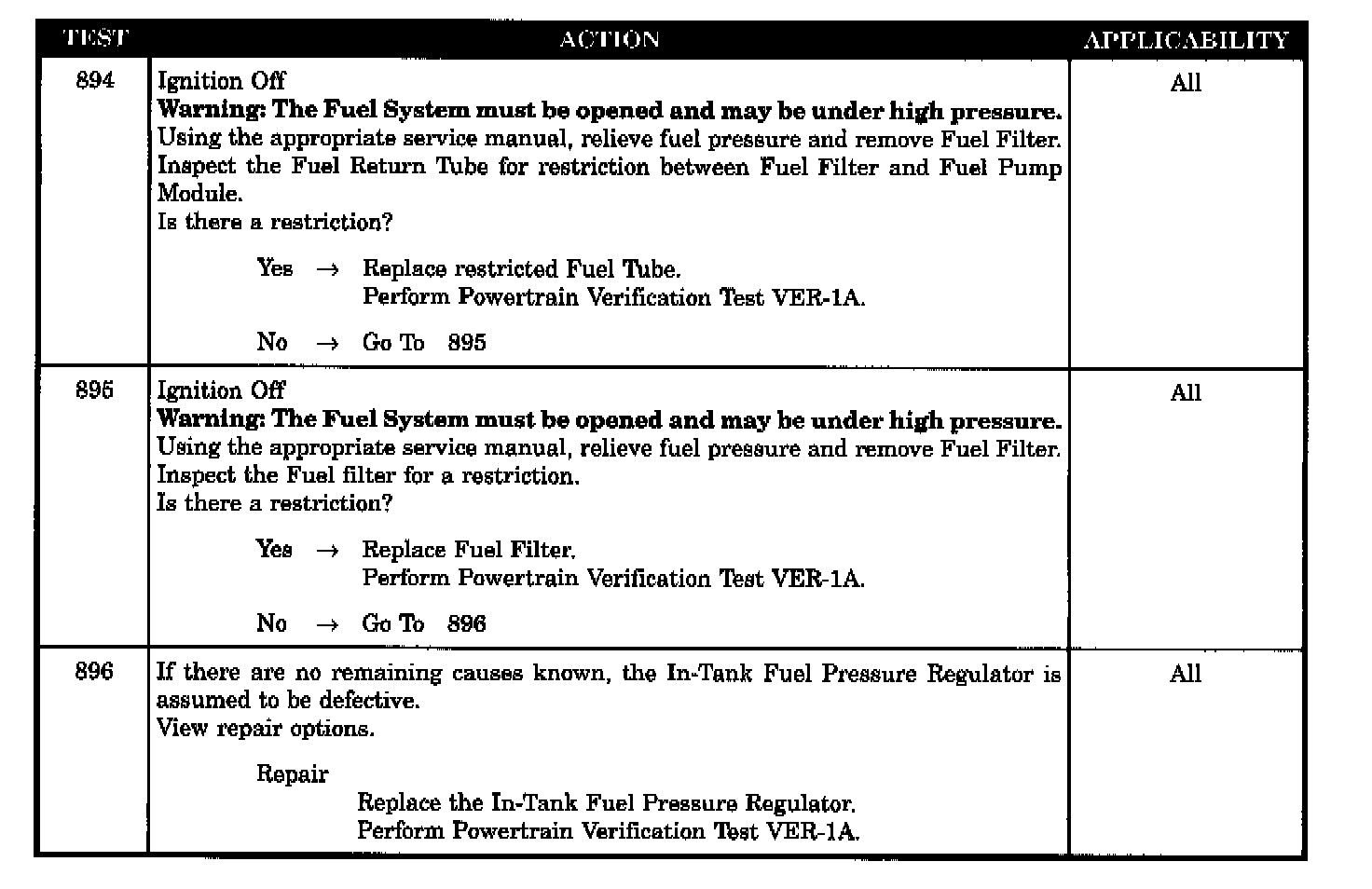

Tests 894 - 896:
SYMPTOM
* HIGH
FUEL PRESSURE
POSSIBLE CAUSES
-
Fuel return tube restricted
-
Fuel filter
restricted
-
In-tank fuel pressure regulator defective
