Home >> Chrysler >> 1999 >> Sebring Convertible L4-2.4L VIN X >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> No Start Test >> No Start (NS) Tests >> Checking Fuel System

Checking Fuel System

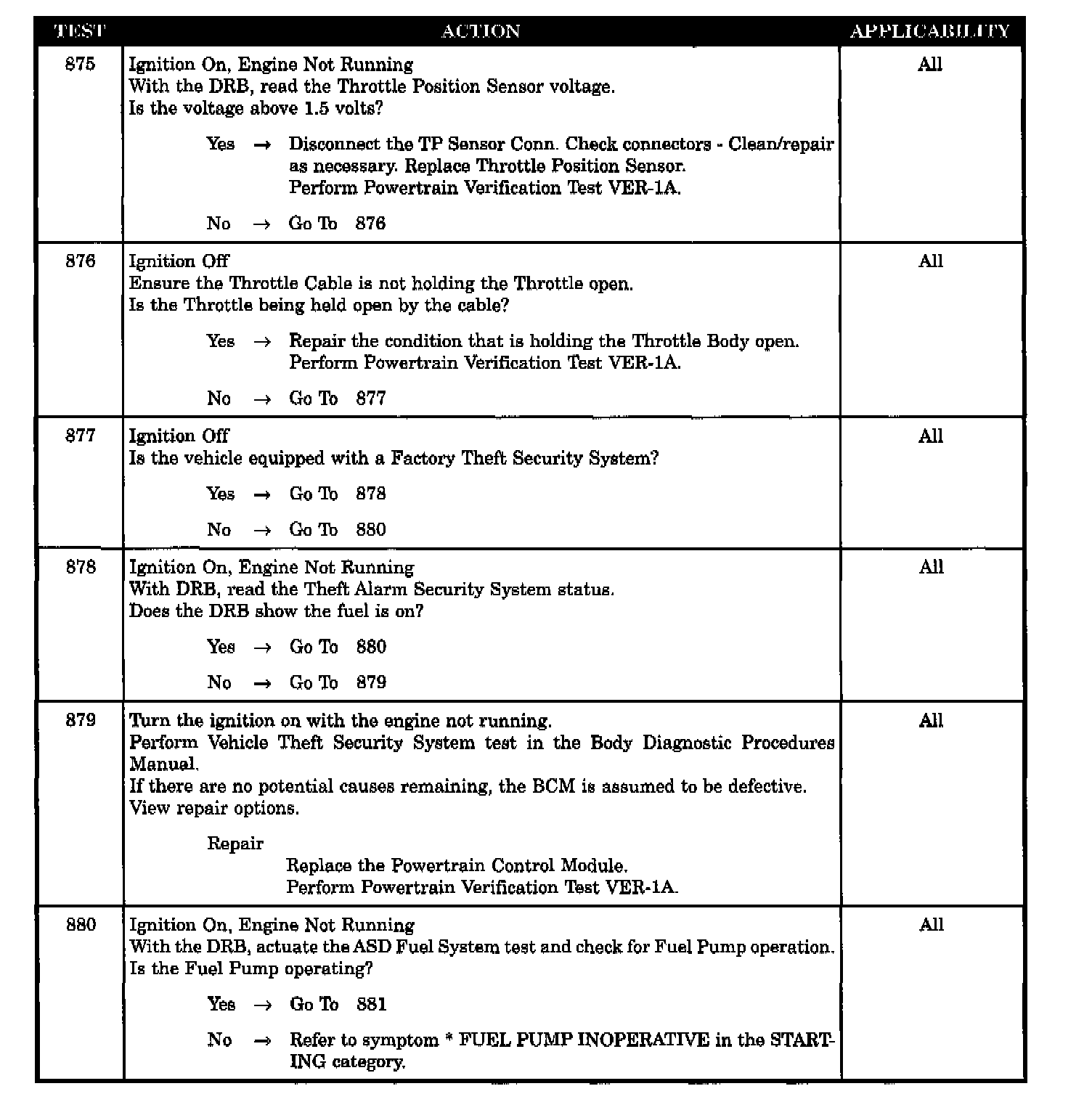

Tests 875 - 880:

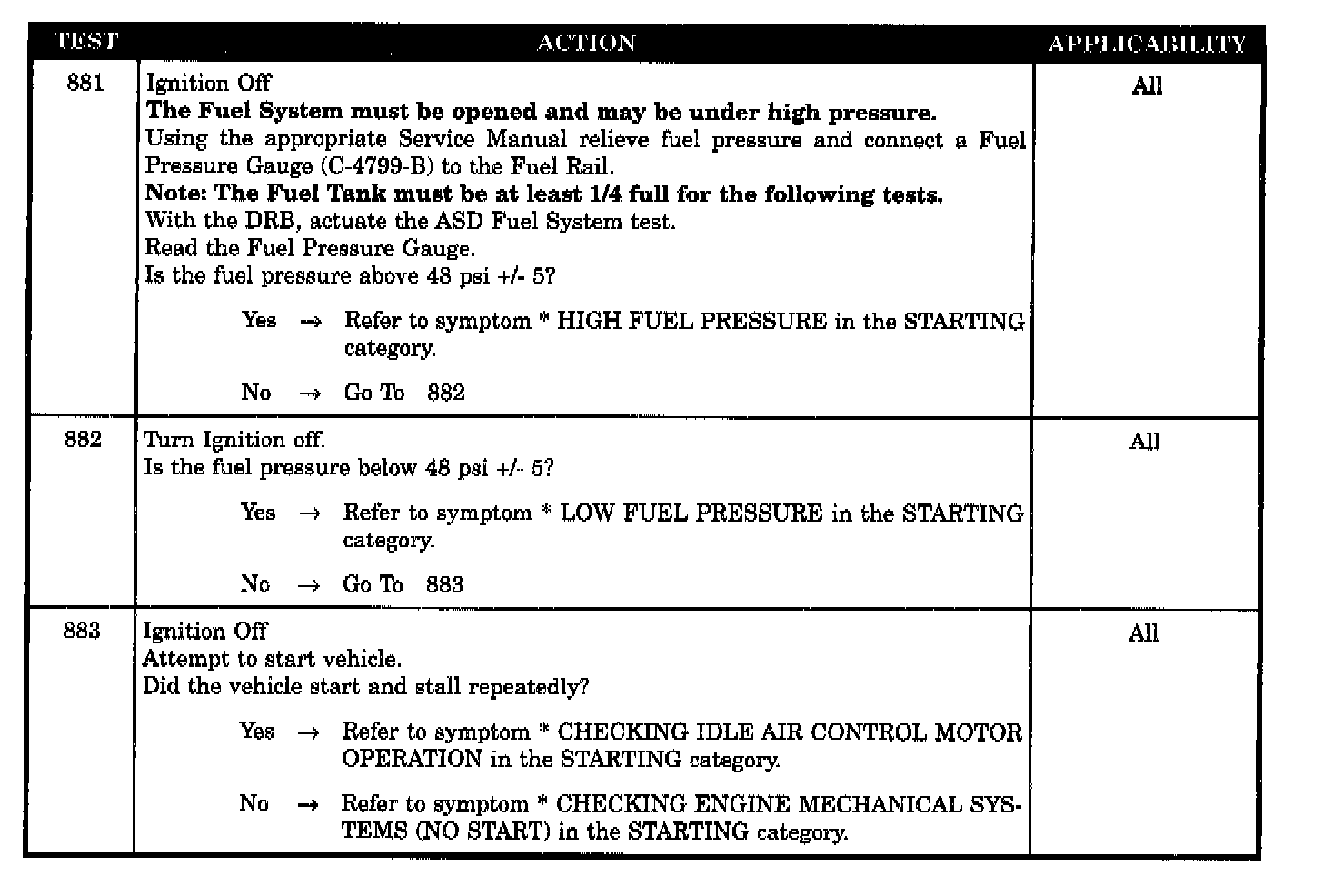

Tests 881 - 883:




SYMPTOM
* CHECKING FUEL SYSTEM

POSSIBLE CAUSES
- Throttle position sensor defective
- Throttle stuck open
- Powertrain control module defective
