"No Response" Condition

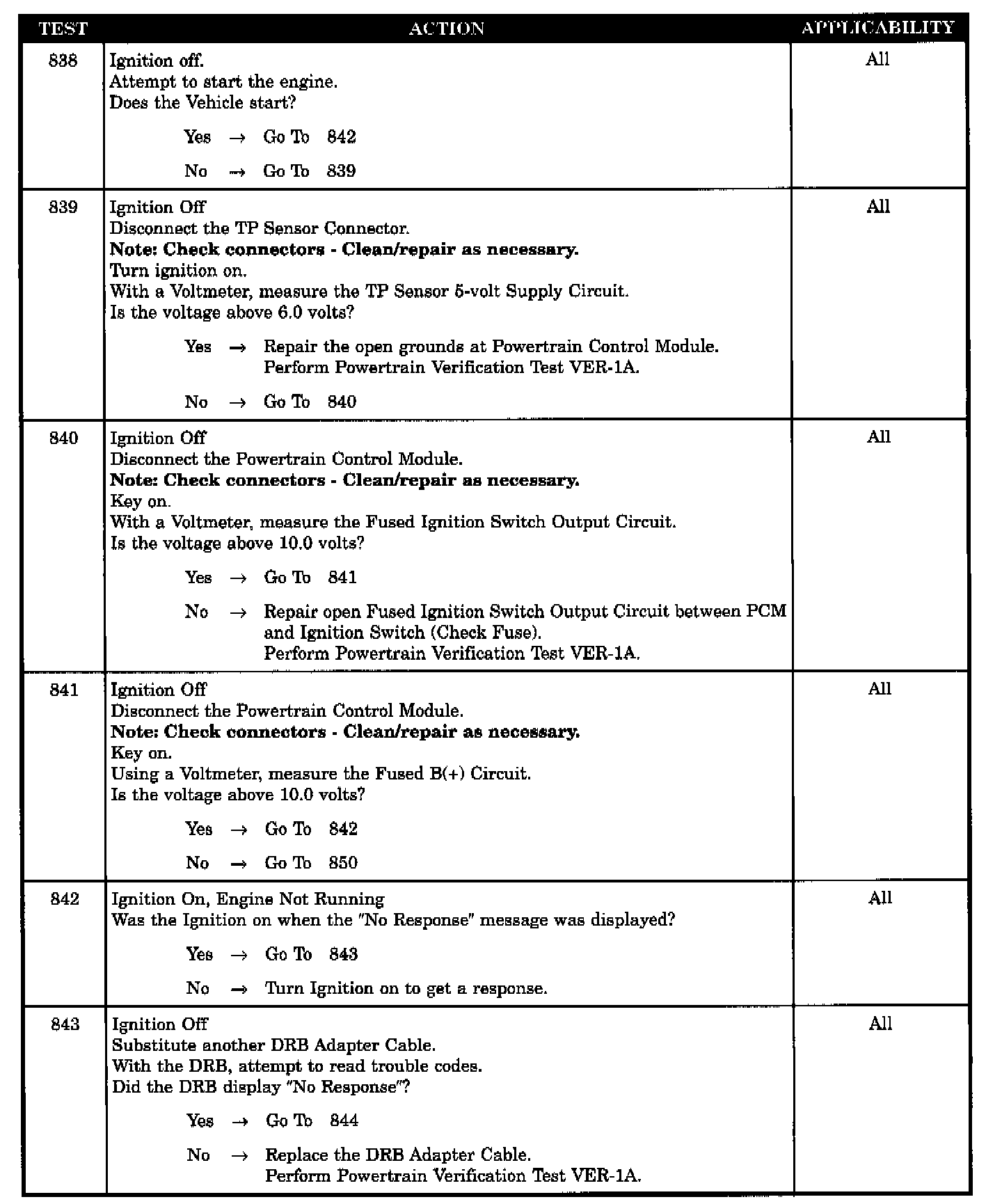

Tests 838 - 843:

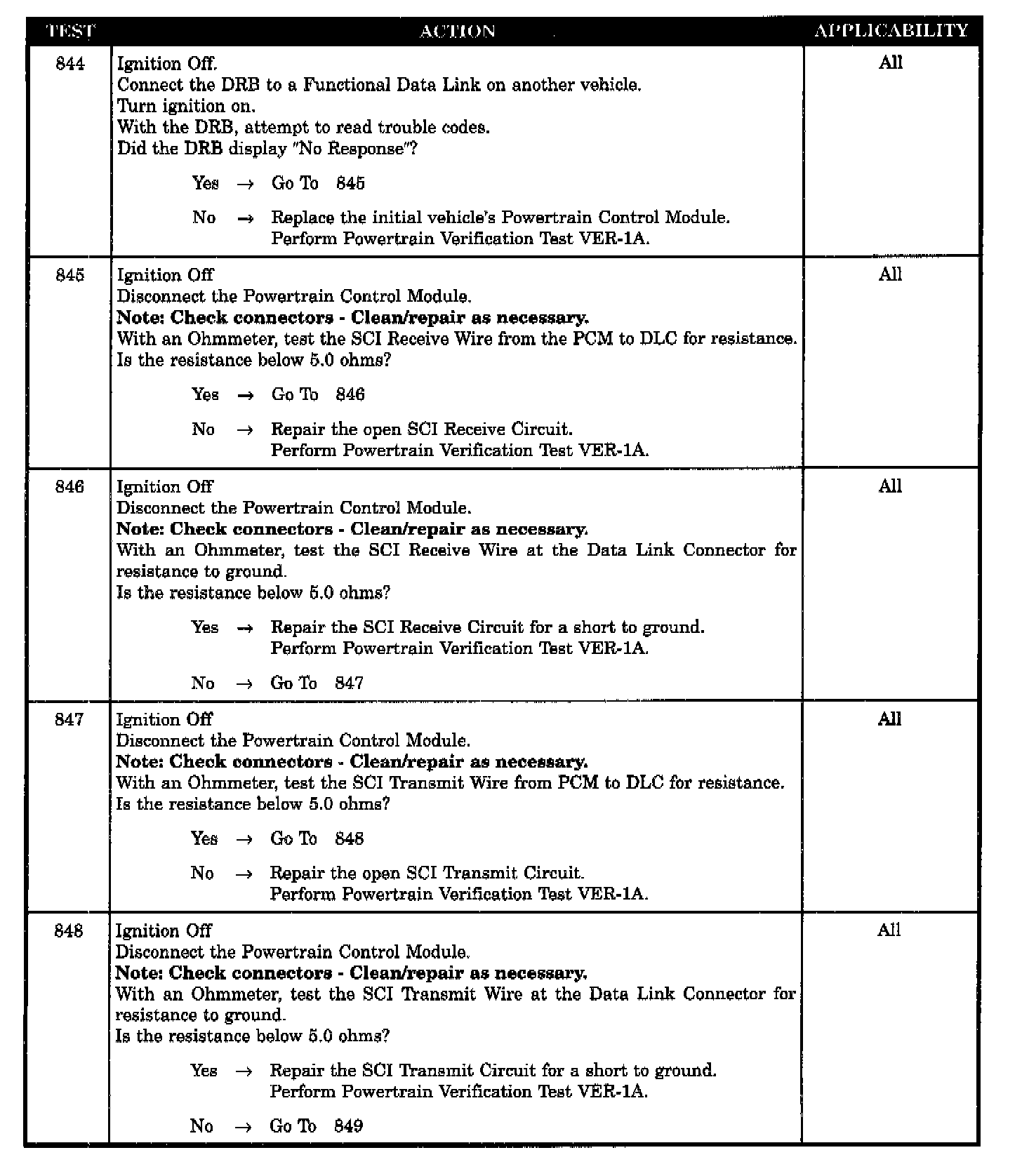

Tests 844 - 848:

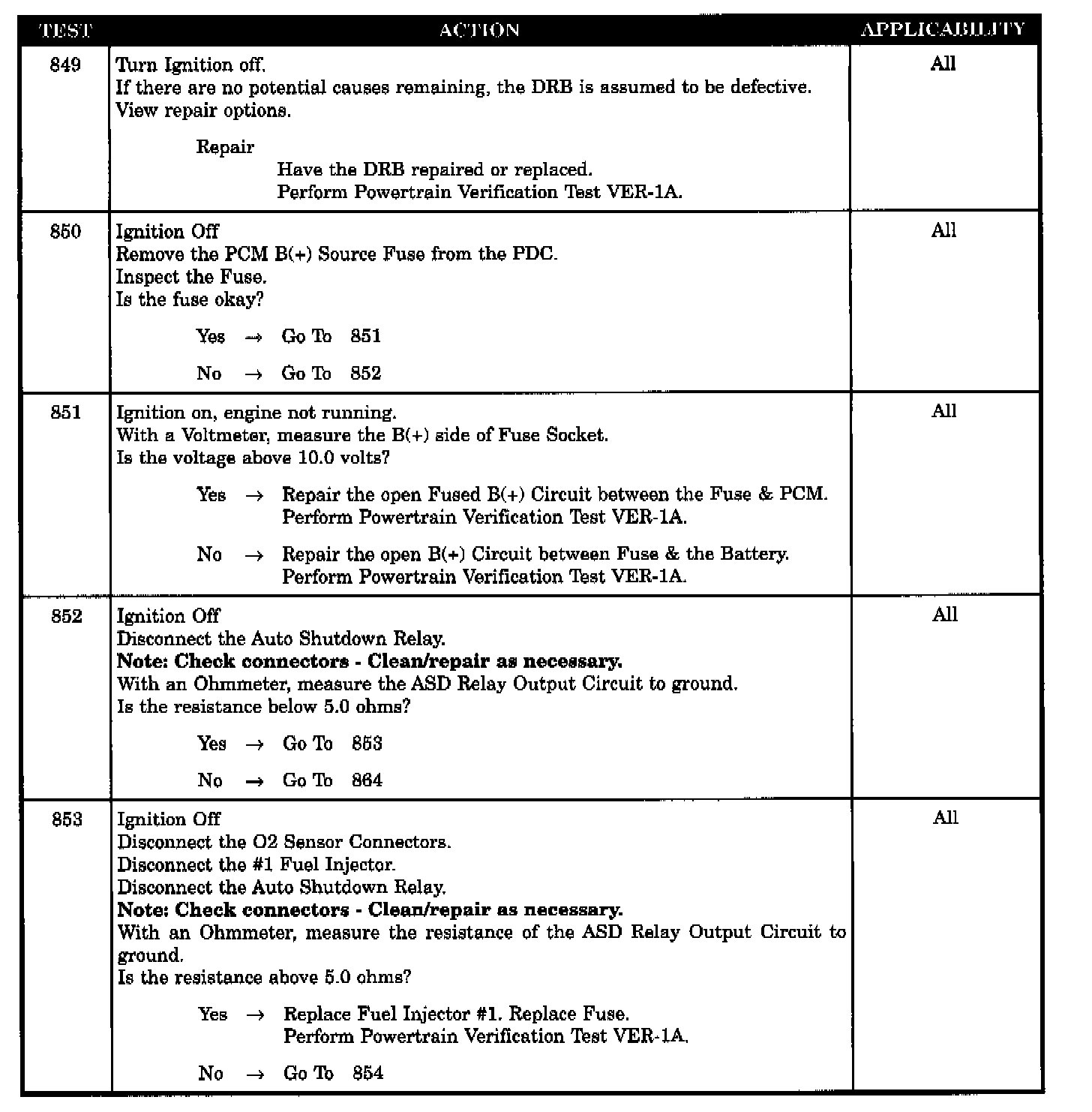

Tests 849 - 853:

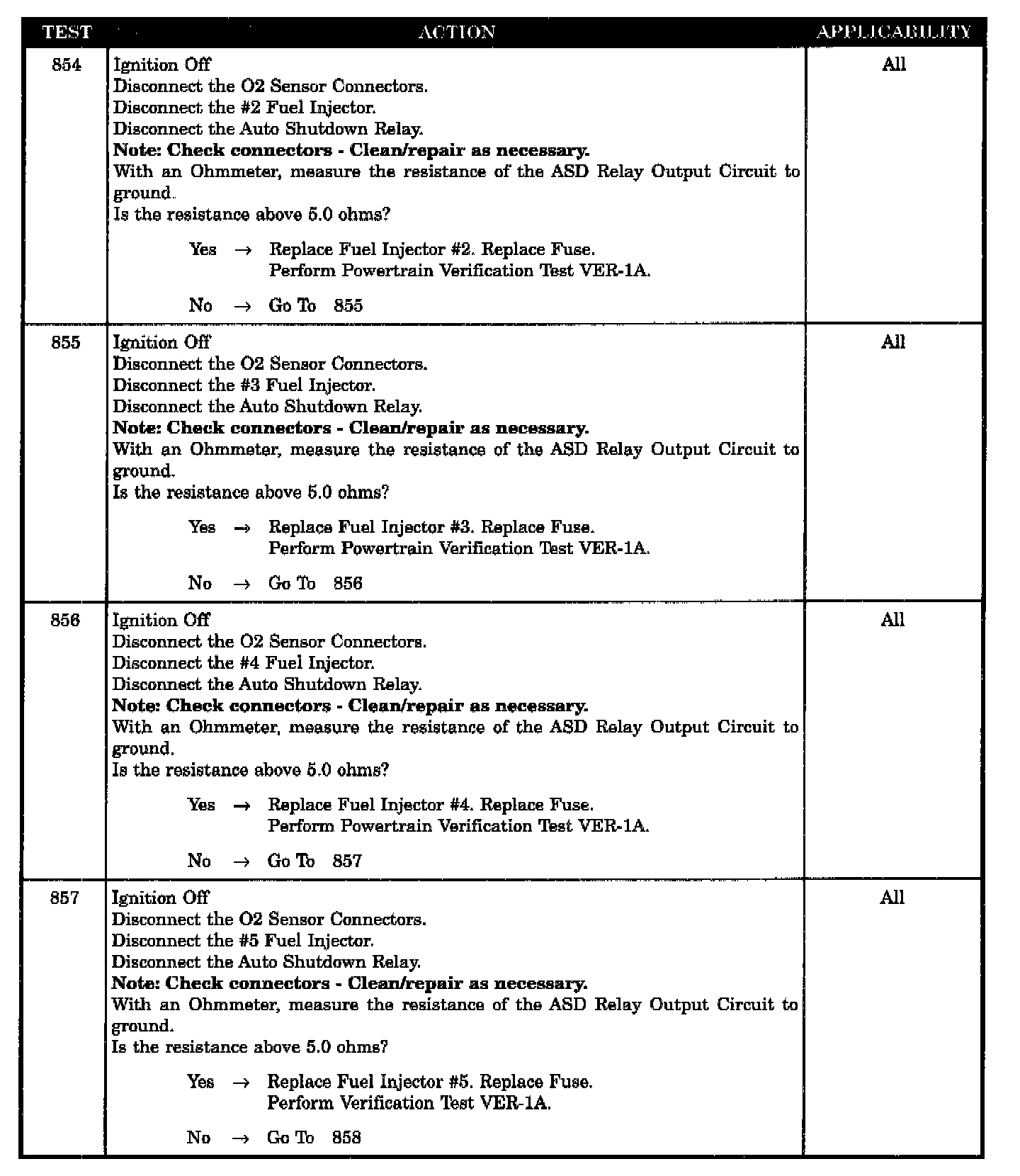

Tests 854 - 857:

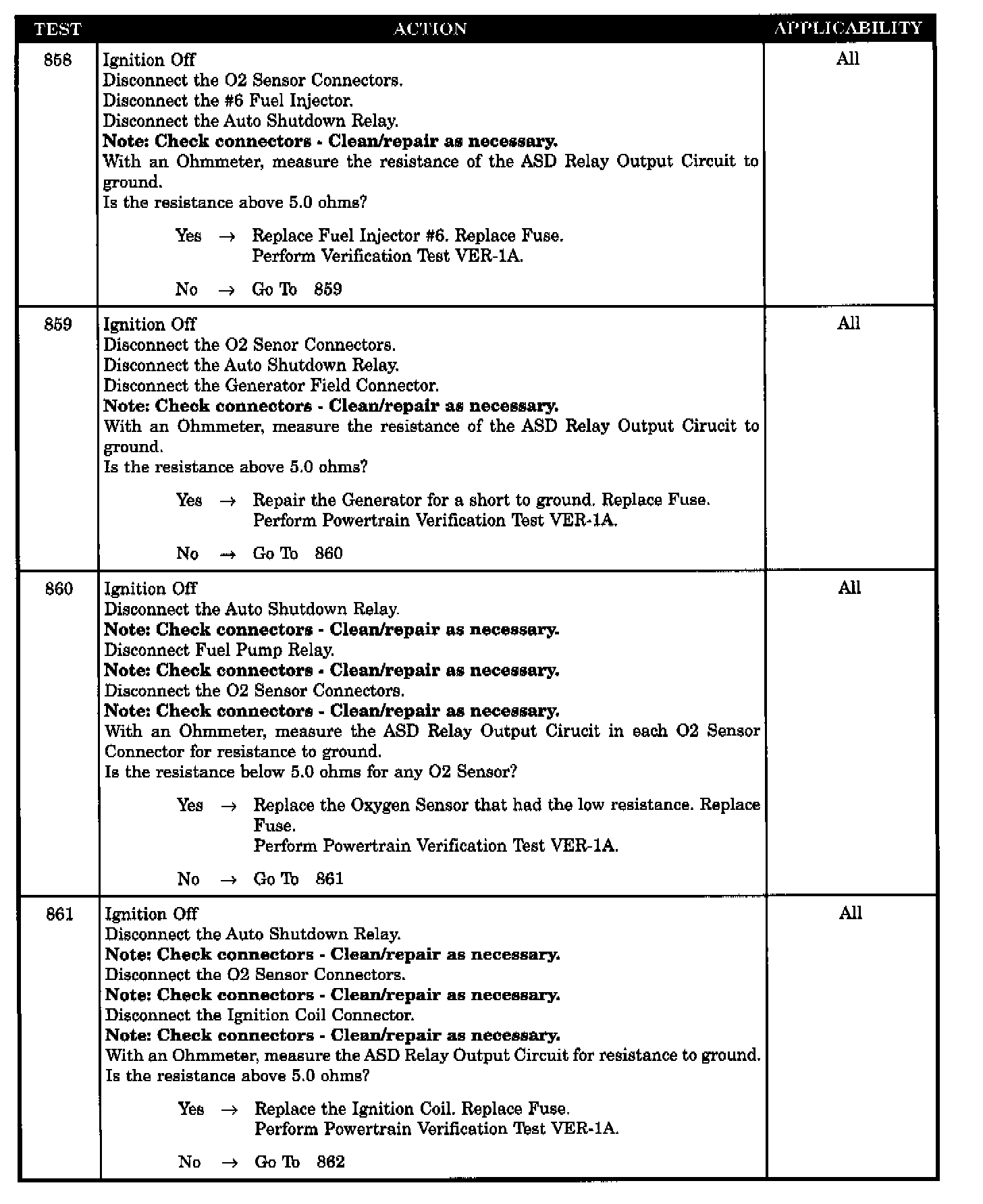

Tests 858 - 861:

Tests 862 - 865:

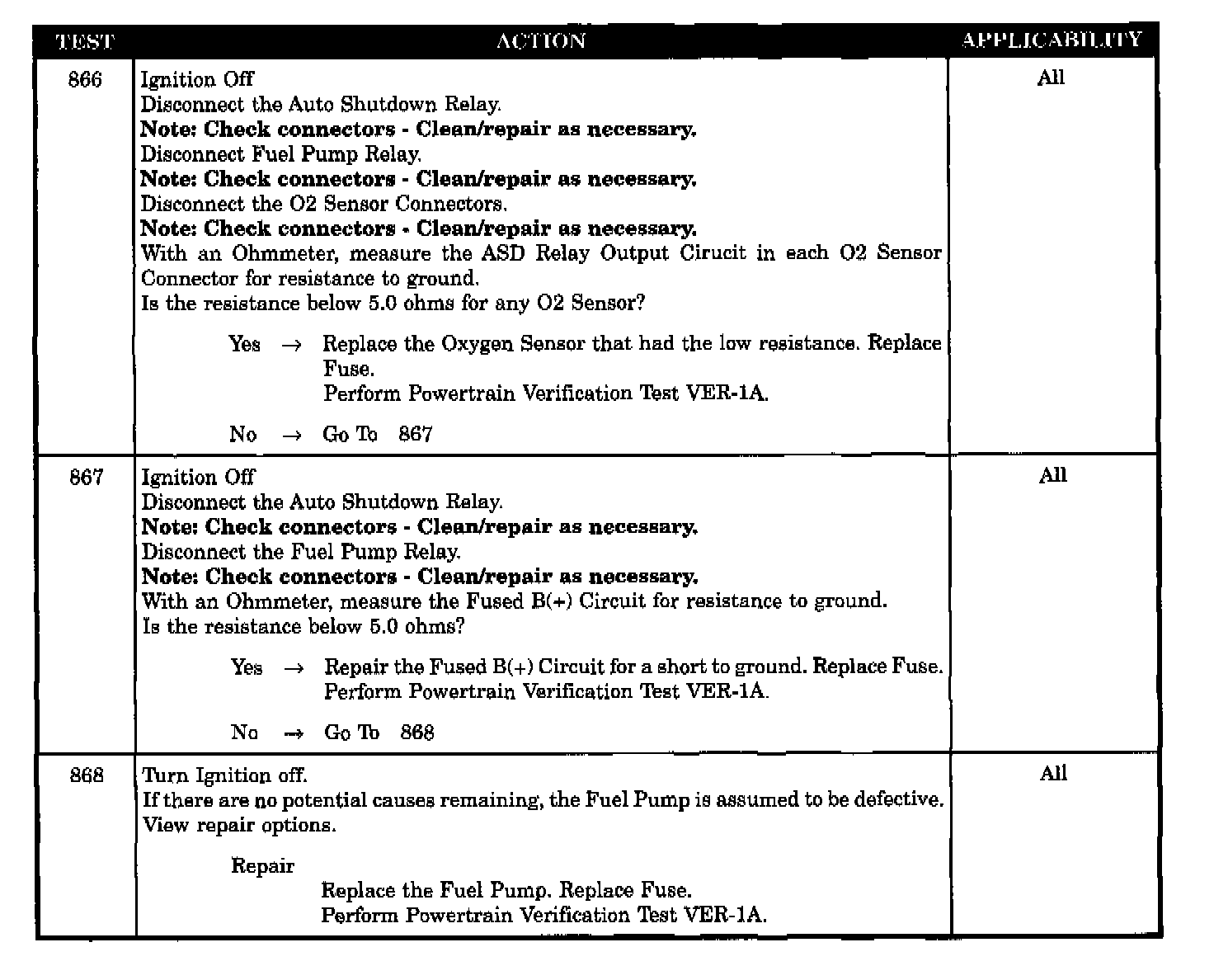

Tests 866 - 868:

SYMPTOM
* "NO RESPONSE" CONDITION

POSSIBLE CAUSES
- Ignition not on
- ASD relay wiring harness defective (6 cyl eng)
- DRB adapter cable defective
- DRB defective
- Fused ignition switch output circuit open
- Ignition coil defective
- Powertrain control module grounds open
- Fuel injector #1 defective
- Fuel injector #2 defective
- Fuel injector #3 defective
- Fuel injector #4 defective
- Fuel injector #5 defective
- Fuel injector #6 defective
- Fuel pump defective
- Generator shorted to ground
- Fuel pump relay output circuit short to ground
- Fuel pump relay output ckt intermittent shrt to gnd
- SCI receive circuit open
- SCI receive circuit shorted to ground
- SCI transmit circuit open
- SCI transmit circuit shorted to ground
- Fused B(+) circuit open between fuse and battery
- O2 sensor defective
- PCM defective (no response cond)
- Fused B(+) circuit open between fuse and PCM
- Fused B(+) circuit shorted to ground
