Wheel Cover (Lock-On) Replacement
REMOVEWheel Cover Retaining Nuts:
NOTE: When unthreading the wheel cover retaining nuts from the wheel nuts it is recommended that a hand wrench be used and not an impact wrench. Use of an impact wrench could result in damage to the lock-on wheel cover retaining nuts.
1. Un-thread the 5 nuts attaching the wheel cover to the wheel nuts.
2. Grasp the wheel cover and pull straight outward from the wheel. This will remove the wheel cover from the wheel.
INSTALL
Wheel Cover Retaining Nuts:

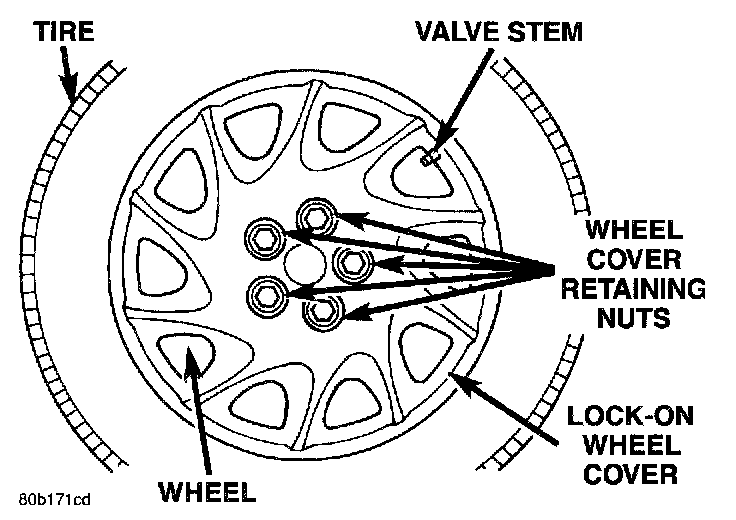

1. Align the valve notch in the wheel cover with the valve stem on the wheel. Align the wheel cover retaining nuts with the externally threaded wheel nuts.
2. By hand, start to thread all 5 of the wheel cover retaining nuts onto the externally threaded wheel nuts.
NOTE: When tightening the wheel cover retaining nuts it is recommended that a hand wrench be used and not an impact wrench. Use of an impact wrench could result in damage to the lock-on wheel cover retaining nuts.
3. Tighten each of the wheel cover retaining nuts. If the retaining nut "jumps" a thread (slips), which is an override feature of the retaining nut, retighten the retaining nut to a point just prior to this occurring. To avoid rattling of the wheel cover be sure all five retaining nuts are correctly tightened.
