Electrical Diagrams: Diagrams

Junction Block 8w-12-6:

Blower Motor Resistor Block
Body Control Module
Daytime Running Lamp Module
Fuse 1 (JB)
Fuse 2 (JB)
Fuse 3 (JB)
Headlamp Switch
Junction Block
Left Headlamp
Right Headlamp

Junction Block 8w-12-7:

Automatic Day/Night Mirror
Daytime Running Lamp Module
Fuse 4 (JB)
Junction Block
Left Power Door Lock Switch
Power Mirror Switch
Power Top Relay
Right Power Door Lock Switch
Transmission Range Sensor

Junction Block 8w-12-8:

Automatic Day/Night Mirror
Body Control Module
Data Link Connector
Fuse 5 (JB)
Glove Box Lamp
Junction Block
Left Visor/Vanity Lamps
Overhead Map Lamp
Power Amplifier
Power Antenna
Radio
Stop Lamp Switch
Traveler
Trunk Lamp
Universal Garage Door Opener

Junction Block 8w-12-9:

Body Control Module
Illuminated Entry Relay
Junction Block
Left Door Arm/Disarm Switch
Left Door Courtesy Lamp
Left Power Door Lock Switch
Rear Floor Courtesy Lamp
Right Door Arm/Disarm Switch
Right Door Courtesy Lamp
Right Power Door Lock Switch

Junction Block 8w-12-10:

A/C-Heater Control
Fuse 6 (JB)
Fuse 7 (JB)
Headlamp Switch
Instrument Cluster
Junction Block
Left Power Mirror
Rear Window Defogger
Rear Window Defogger Relay
Right Power Mirror

Junction Block 8w-12-11:

Body Control Module
Cigar Lighter/Power Outlet
Clockspring No. 1
Fuse 8 (JB)
High Note Horn
Horn Relay
Horn Switches
Junction Block
Low Note Horn

Junction Block 8w-12-12:

Autostick Switch
Body Control Module
Daytime Running Lamp Module
Fuse 9 (JB)
Fuse 10 (JB)
Fuse 11 (JB)
Instrument Cluster
Junction Block
Transmission Control Module

Junction Block 8w-12-13:

Body Control Module
Daytime Running Lamp Module
Fuse 12 (JB)
Fuse 13 (JB)
Fuse 14 (JB)
Fuse 15 (JB)
Headlamp Delay Relay
Intermittent Wiper Relay
Junction Block
Left Headlamp
Multi-Function Switch
Radio
Rear Window Defogger Relay
Right Headlamp
Seat Belt Control Module
Wiper High/Low Relay

Junction Block 8w-12-14:

Circuit Breaker 1 (JB)
Decklid Release Relay
Decklid Solenoid
Fuse 16 (JB)
Fuse 17 (JB)
Junction Block
Power Distribution Center
Power Seat Switch

Junction Block 8w-12-15:

Circuit Breaker 1 (JB)
Junction Block
Left Door Window Motor Relay
Left Front Power Window Motor
Master Power Window Switch
Right Door Window Motor Relay
Right Power Window Switch
Window Timer Module

Junction Block 8w-12-16:

Automatic Day/Night Mirror
Autostick Switch
Body Control Module
Data Link Connector
Daytime Running Lamp Module
G301
Ignition Switch
Illuminated Entry Relay
Instrument Cluster
Junction Block
Key-In Switch
Overhead Map Lamp
Power Amplifier
Sentry Key Immobilizer Module
Traction Control Switch

Junction Block 8w-12-17:

Body Control Module
Headlamp Switch
Junction Block
Left Park/Turn Signal Lamp
Left Rear Park/Turn Signal Lamp
Left Side Marker Lamp
Left Tail/Stop Lamp
License Lamp
Radio
Right Park/Turn Signal Lamp
Right Rear Park/k/Turn Signal Lamp
Right Side Marker Lamp
Right Tail/Stop Lamp

Junction Block 8w-12-18:

Brake Warning Pressure Switch
Daytime Running Lamp Module
Ignition Switch
Instrument Cluster
Junction Block
Left Fog Lamp
Park Brake Switch
Right Fog Lamp

Junction Block 8w-12-19:

Center High Mounted Stop Lamp
Controller Anti-Lock Brake
Junction Block
Left Tail/Stop Lamp
Right Tail/Stop Lamp
Stop Lamp Switch

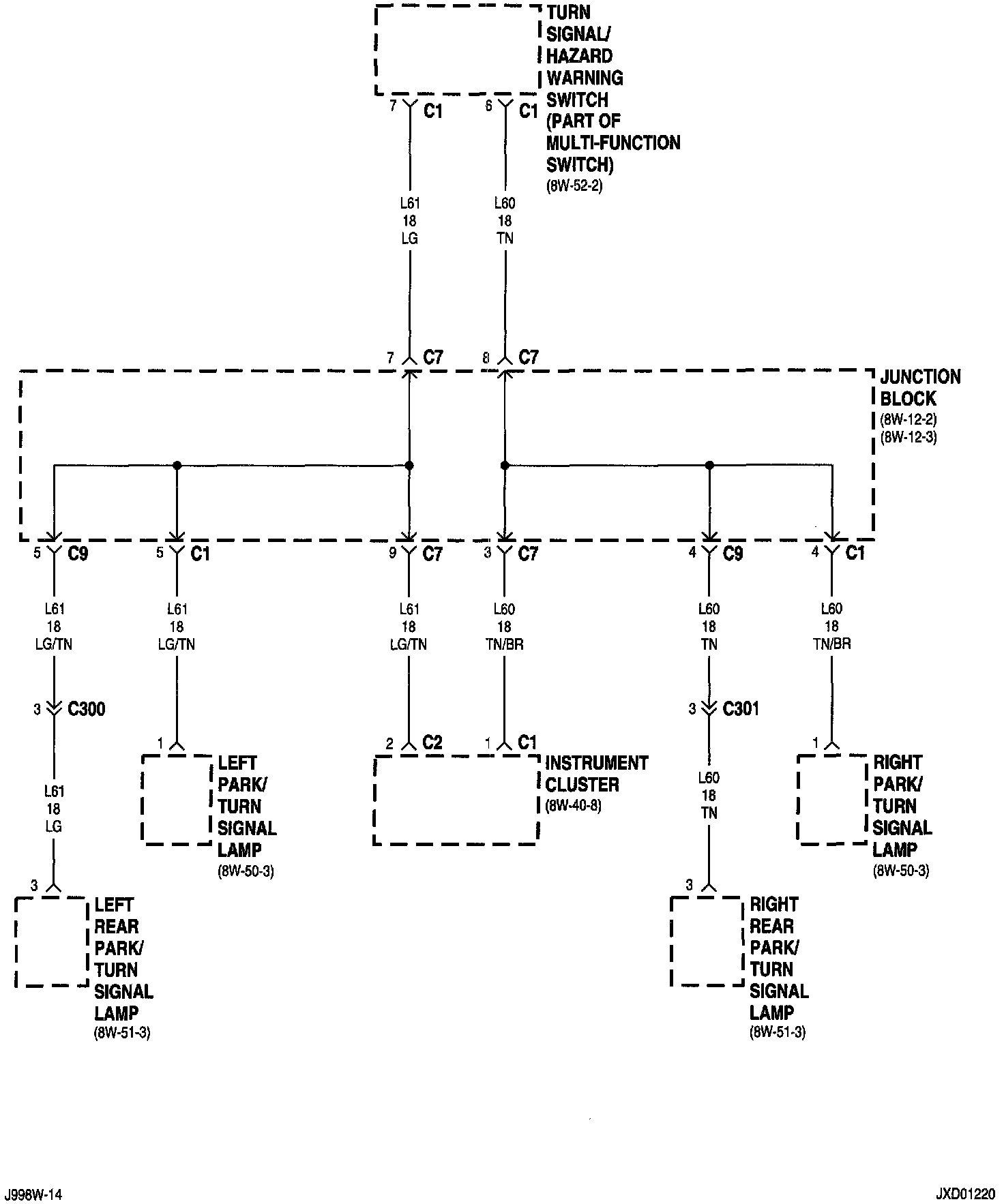

Junction Block 8w-12-20:

Instrument Cluster
Junction Block
Left Park/Turn Signal Lamp
Left Rear Park/Turn Signal Lamp
Right Park/Turn Signal Lamp
Right Rear Park/Turn Signal Lamp
Turn Signal/Hazard Warning Switch


NOTE: To view sheets referred to in these diagrams, see Complete Body and Chassis Diagrams Diagrams By Group Number.
