Power Steering Belt

REMOVAL

Figure 44:

1. From the top of the vehicle loosen pivot bolt C (Fig. 44).
2. Raise vehicle on hoist and remove accessory drive belt splash shield.
3. From under the vehicle loosen locking bolts D and E.

INSTALLATION

Figure 42:

1. Install belt. Refer to (Fig. 42) for belt routing.

NOTE: Use Special Tool 7198, Belt Tension Gauge to check for proper tension of belt.

2. Adjust belt tension with 1/2 in. breaker bar installed in adjusting bracket. Use Belt Tension Gauge and refer Belt Tension Chart.
3. Tighten locking bolt D to 54 Nm (40 ft. lbs.).
4. Tighten locking bolt E to 28 Nm (250 inch lbs.). Tighten pivot bolt C to 54 Nm (40 ft. lbs.).


Power Steering Pump Belt Tension Adjustment
Refer to Power Steering Pump Belt Installation for belt adjustment procedure.

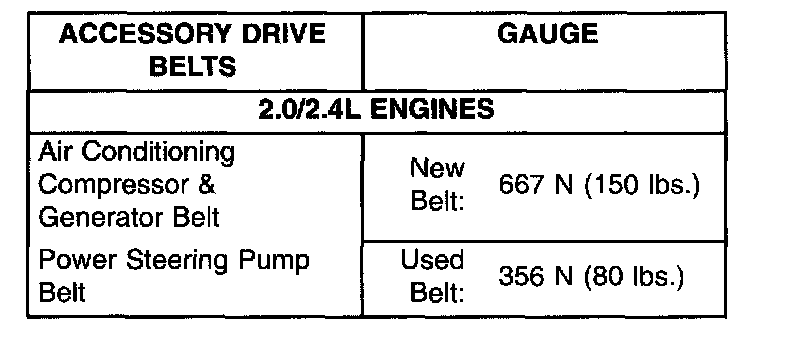

Belt Tension Chart
