A/C Belt

REMOVAL
1. Remove upper belt shield.

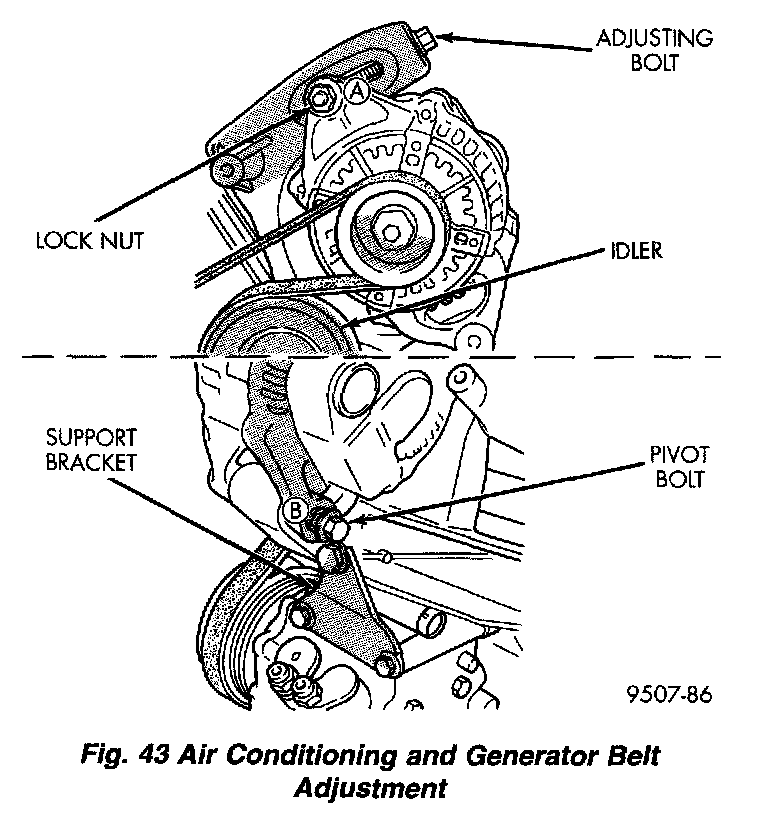

Figure 43:

2. Loosen T-Bolt locking nut A and pivot bolt B (Fig. 43).
3. Remove belt.

INSTALLATION

Figure 42:

1. Refer to (Fig. 42) for belt routing.

NOTE: Use Special Tool 7198, Belt Tension Gauge to check for proper tension of belt.

2. Tighten adjusting bolt to adjust belt tension. Use Belt Tension Gauge and refer to Belt Tension Chart for specifications.
