Cleaning and Inspection

Belt replacement under any or all of the following conditions is required, excessive wear, frayed cords or severe glazing.

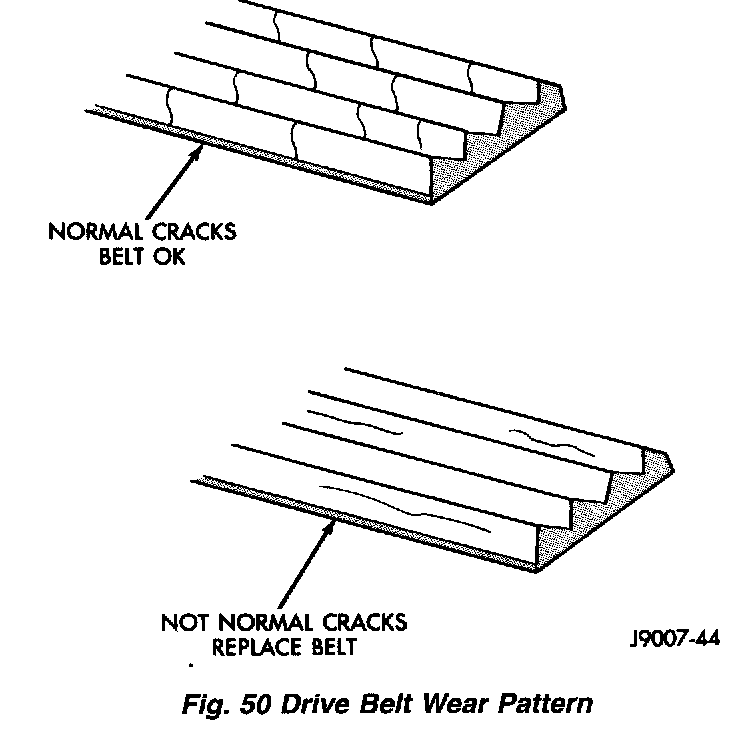

Figure 50:

Poly-V Belt system may develop minor cracks across the ribbed side. These minor cracks are considered normal and acceptable. Cracks parallel are not (Fig. 50).

NOTE: Do not use any type of belt dressing or restorer on Poly-V Belts.
