Drive Belt: Adjustments

Belt Tension Gauge Method
For conventional belts and Poly-V belts, use belt tensioning gauge Special Tool 7198 to obtain proper belt tension.
Adjust the belt tension for a New or Used belt as prescribed in the Belt Tension Chart.

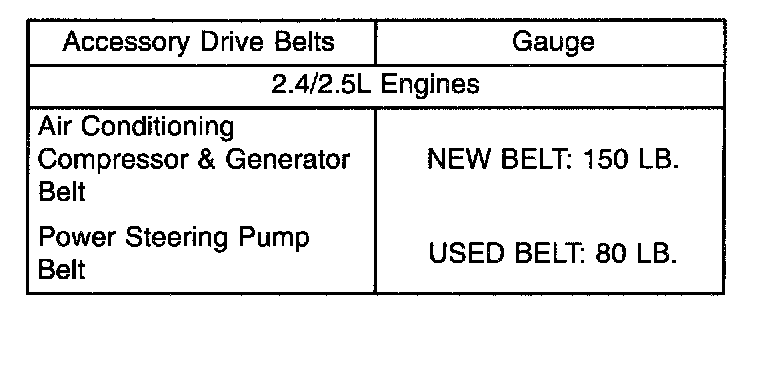

Belt Tension Chart
