License Plate Lamp: Service and Repair

REMOVAL
1. Remove screws attaching license plate lamp to rear bumper fascia.

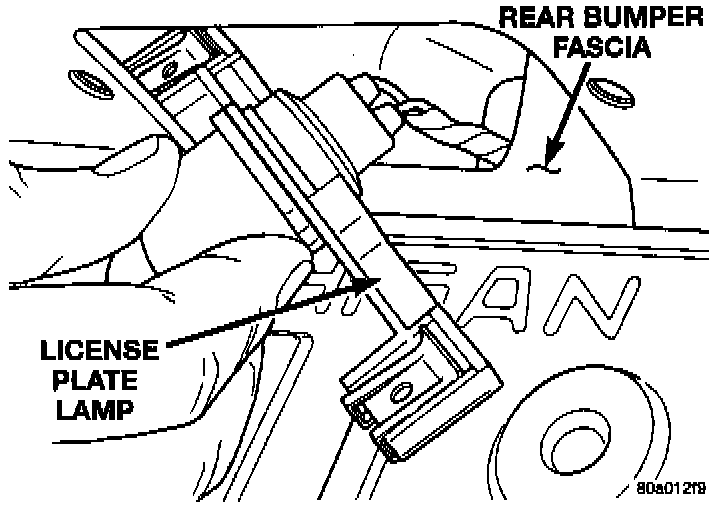

License Plate Lamp:

2. Remove license plate lamp from rear fascia.
3. Rotate socket counterclockwise one quarter turn.
4. Pull socket from back of lamp.
5. Remove license plate lamp from vehicle.

INSTALLATION
1. Position license plate lamp to vehicle.
2. Push socket into back of lamp.
3. Rotate socket clockwise one quarter turn.
4. Position license plate lamp to rear fascia.
5. Install screws attaching license plate lamp to rear bumper fascia.
