Horn System Test
Horn System Test
CAUTION
: Continuous sounding of horns will cause
horn relay
to fail.

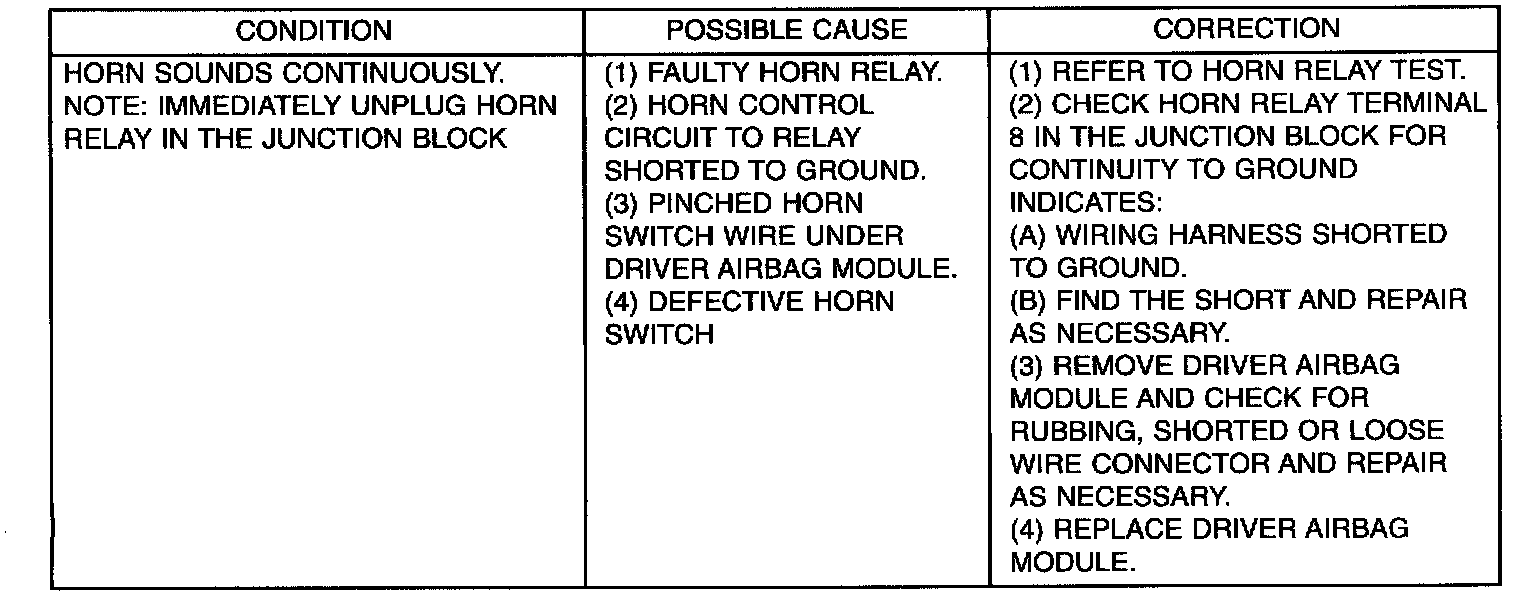

Horn System Test (Part 1 Of 2):

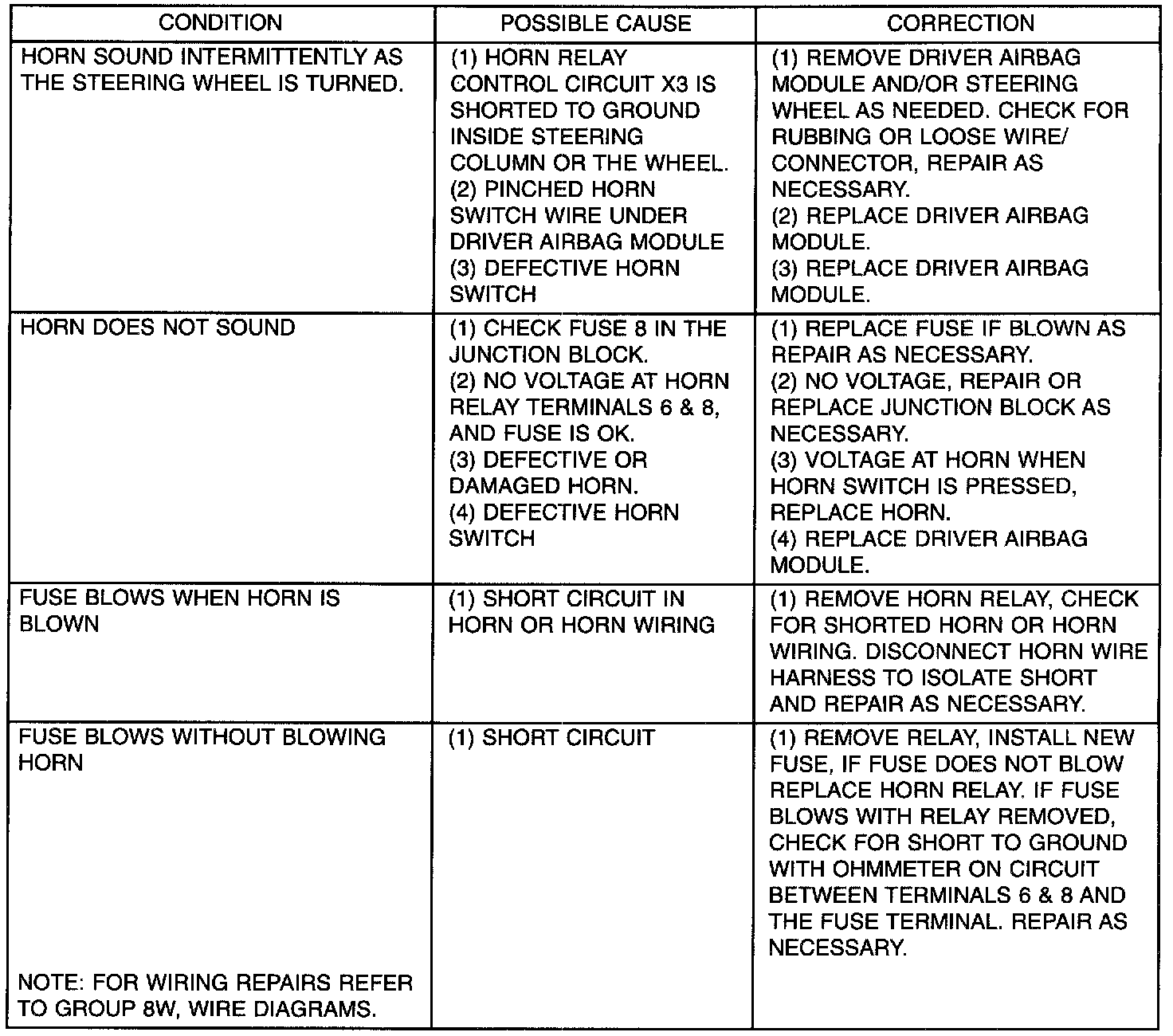

Horn System Test (Part 2 Of 2):
Check fuse 8 in the Junction Block, and refer to
Horn
System Test table.
