Headlamp Bulb: Service and Repair

REMOVAL

CAUTION: Do not touch the glass of halogen bulbs with fingers or other possibly oily surface, reduced bulb life will result.

1. Release hood latch and open hood.
2. Remove screws attaching headlamp module to radiator closure panel.
3. Remove headlamp module from radiator closure panel.
4. Disconnect wire connector from back of head- lamp bulb.
5. Rotate retaining ring counterclockwise one quarter turn.
6. Remove retaining ring from headlamp module.

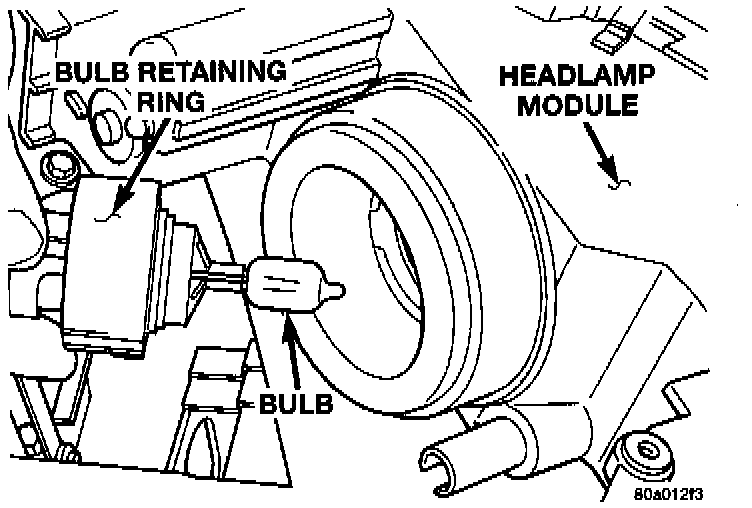

Headlamp Bulb:

7. Pull bulb from headlamp module.

INSTALLATION
1. Insert bulb into headlamp module.
2. Position retaining ring to headlamp module.
3. Rotate retaining ring clockwise one quarter turn.
4. Connect wire connector from back of headlamp bulb.
5. Position headlamp module to radiator closure panel.
6. Install screws attaching headlamp module to radiator closure panel.
7. Verify proper headlamp alignment. Adjust as necessary
