Hazard Warning Flasher: Service and Repair

REMOVAL AND INSTALLATION

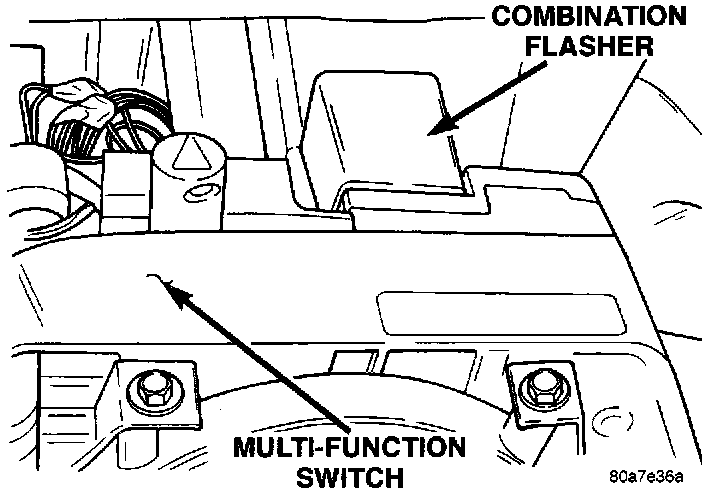

Combination Flasher Location:




The flasher is mounted to the back side of the multi-function switch. To gain access, the upper steering column cover must be removed. Refer to Steering Column Cover Replacement. The flasher can be removed by pulling it forward. The flasher is serviced separately from the multi-function switch. The flasher is black in color for ease of identification.
