Door Courtesy Lamp Bulb

REMOVAL
1. Using a small, flat bladed tool inserted into rear edge of door courtesy lamp lens, remove lens.

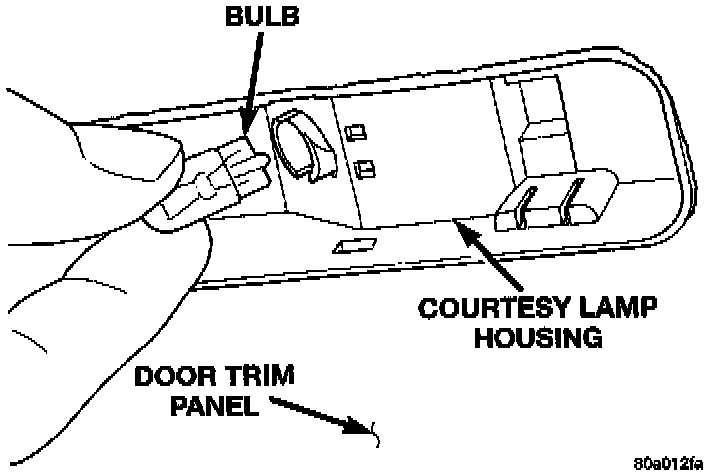

Door Courtesy Lamp Bulb:

2. Pull courtesy lamp bulb from bulb socket.

INSTALLATION
1. Push courtesy lamp bulb into bulb socket.
2. Insert front edge of courtesy lamp lens to lamp housing.
3. Snap lamp lens into lamp housing.
