Fuel Gauge: Service and Repair

The Instrument Cluster must be removed to service the Fuel Gauge and Temperature Gauge. Refer to Instrument Cluster Replacement.

REMOVAL

Mask/Lens Retaining Screws:

1. Remove mask/lens retaining screws and remove mask/lens.

Back Cover Retaining Screws:

2. Disconnect odometer/transmission range indicator connector from the printed circuit board.

Speedometer/Tachometer:

3. Remove screws attaching speedometer tachometer to housing and remove.

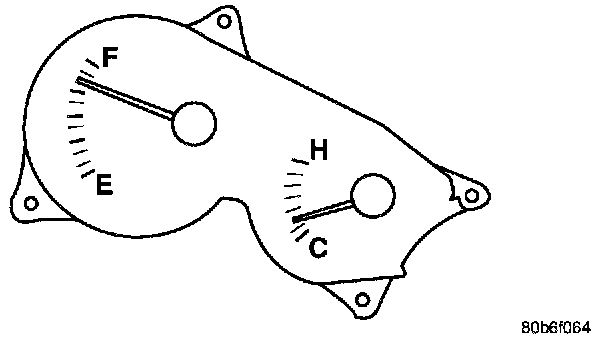

Fuel Gauge And Temperature Gauge:

4. Remove the fuel/temperature gauge attaching screws from the housing and remove.

INSTALLATION
For installation, reverse the above procedures.
