Compass/Temperature Mini-Trip Computer(CMTC) Module Replacement

REMOVAL

Battery Negative Remote Cable Removal:

1. Disconnect and isolate the battery negative remote cable.
2. Remove the Cluster Hood. Refer to Cluster Hood Replacement.

CMTC Module:

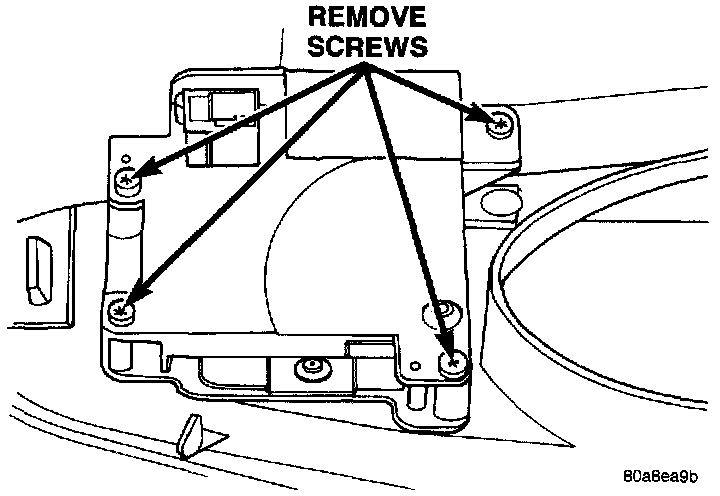

3. With the cluster hood removed remove the four screws attaching the CMTC Module.
4. Remove CMTC Module from cluster hood.

INSTALLATION
For installation, reverse the above procedures.
