Audible Warning Device: Description and Operation
INTRODUCTIONWARNING: ON VEHICLES EQUIPPED WITH AN AIRBAG, REFER TO THE AIRBAG FOR STEERING WHEEL OR SWITCH REPLACEMENT PROCEDURES.

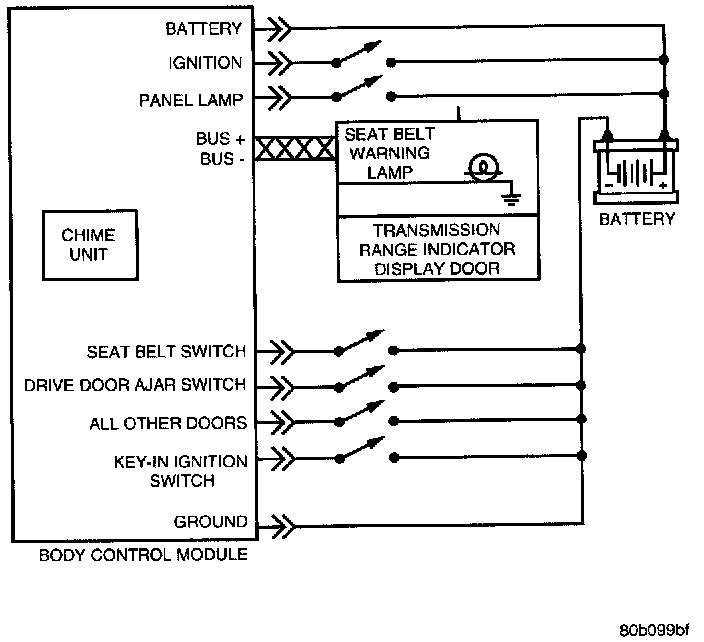

Chime Warning/Reminder System Wiring:
The chime warning/reminder system includes signals for fasten seat belts, exterior lamps left ON, key left in ignition and door ajar.
Use the DRB lll scan tool and the proper Body Diagnostic Procedures.
Exterior Lamps Left ON
An audible chime tone that indicates the exterior lamps were left on.
SYSTEM OPERATION
Exterior Lamps Left ON
To test the headlamps left on function, turn ignition off, turn exterior lamps on with driver's door open. Chime should sound until headlamps are turned off or drivers door is closed.
